KitchenAid 2015 Microltration Dishwashers
COMPONENT ACCESS
Microfiltration Wash System Parts
)HE(67_5(/($6('
,QVRPH(XURSHDQIDFWRULHVWKHOHWWHU:RIWKHSDUWFRGHPHQWLRQHGKHUHLQZLOOEHDXWRPDWLFDOO\
UHSODFHGE\WKHQXPEHUHJ:EHFRPHV
)HE(67_5(/($6('
,QVRPH(XURSHDQIDFWRULHVWKHOHWWHU:RIWKHSDUWFRGHPHQWLRQHGKHUHLQZLOOEHDXWRPDWLFDOO\
UHSODFHGE\WKHQXPEHUHJ:EHFRPHV

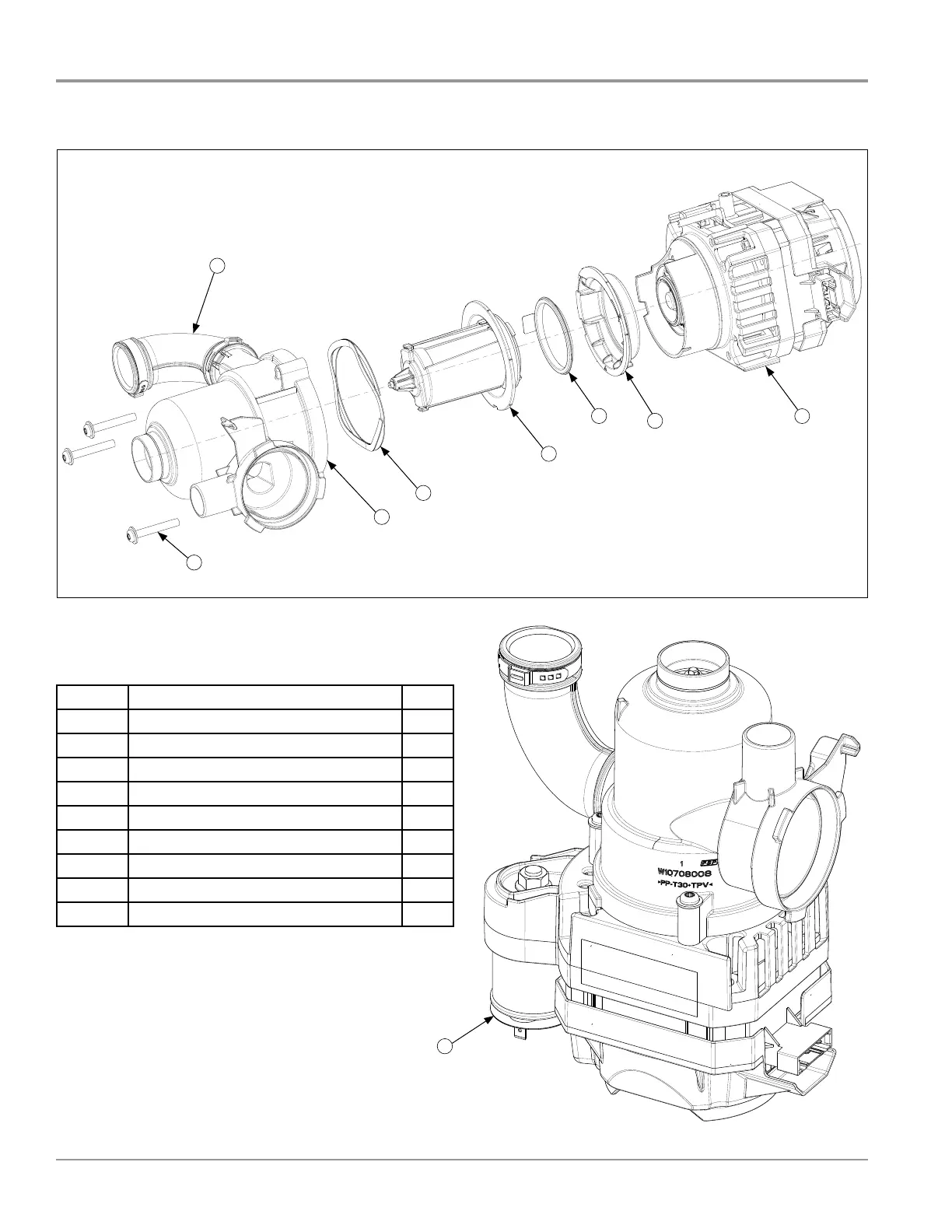

Figure 1 - Exploded View
Figure 2 - Wash Motor Assembly
Wash Motor Parts
Number Description Qty
1 Motor 1
2 Volute 1
3 Ring, Volute 1
4 Filter Ass’y, Pump (RIF) 1
5 Spring, Compression 1
6 Housing, Pump 1
7 Screw 3
8 Hose Ass’y (includes 2 clamps) 1
9 Capacitor (shown at right) 1
Wash Motor Exploded View
1
2
3
4
5
6
7
8
9
