KitchenAid 2015 Microltration Dishwashers
COMPONENT ACCESS
Interior LED Lighting
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Interior LED Lighng
(Available on some models)
1. Unplug dishwasher or disconnect power.
2. Access the LEDs on top of the tub (see Figure 1).

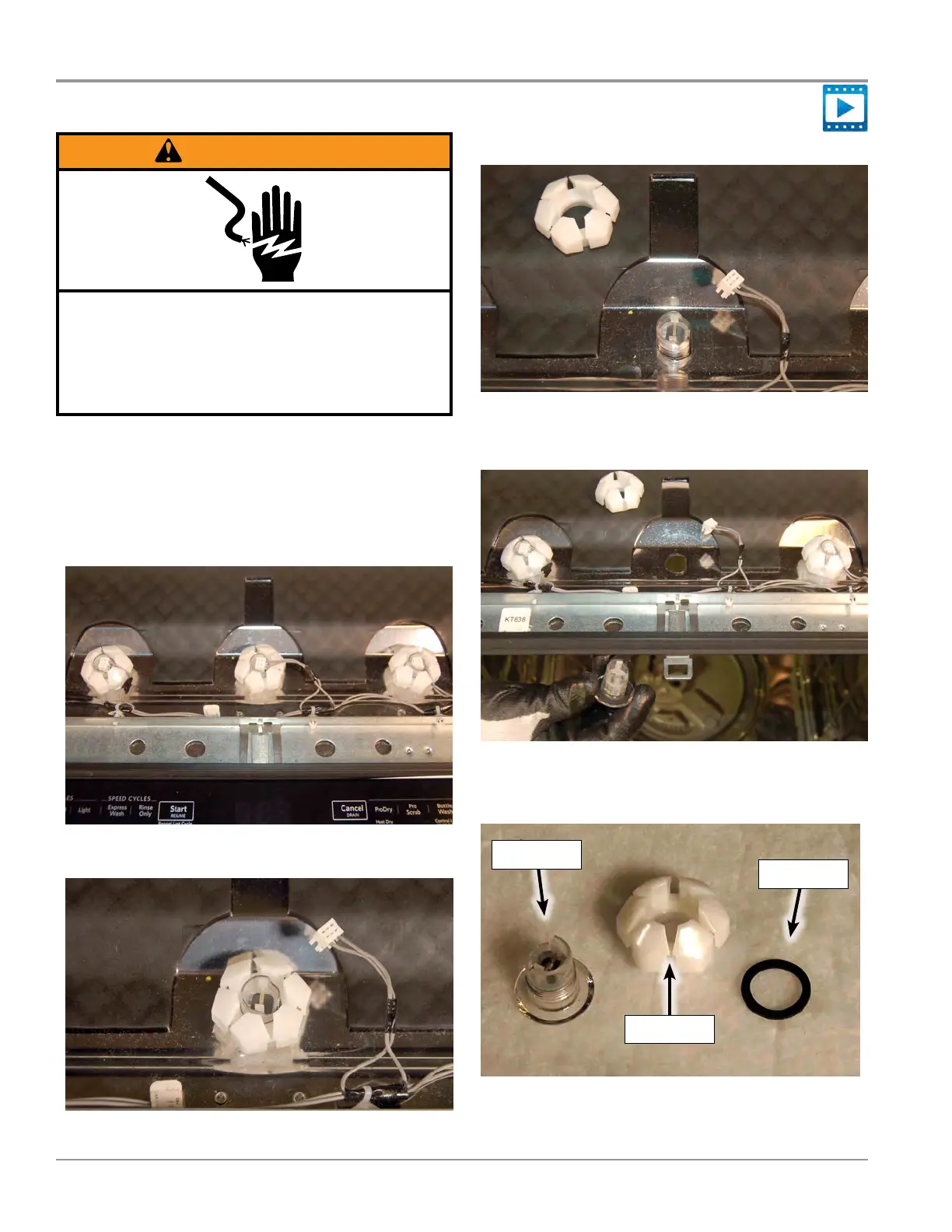

Figure 1
3. Remove harness from LED connector (see Figure 2).
Figure 2
4. Unscrew large plasc nut securing the LED to top of tub
(see Figure 3).
Figure 3
5. From the top, push the LED down into the tub. Reverse the
procedure to reinstall new LED kit. See Figure 4.
Figure 4
6. Order LED Kit when replacing defecve LED.
LED Kit Contents (see Figure 5).
Figure 5
LED
Nut
Gasket
To Next Page
