COMPONENT ACCESS
KitchenAid 2015 Microltration Dishwashers
n
4-19

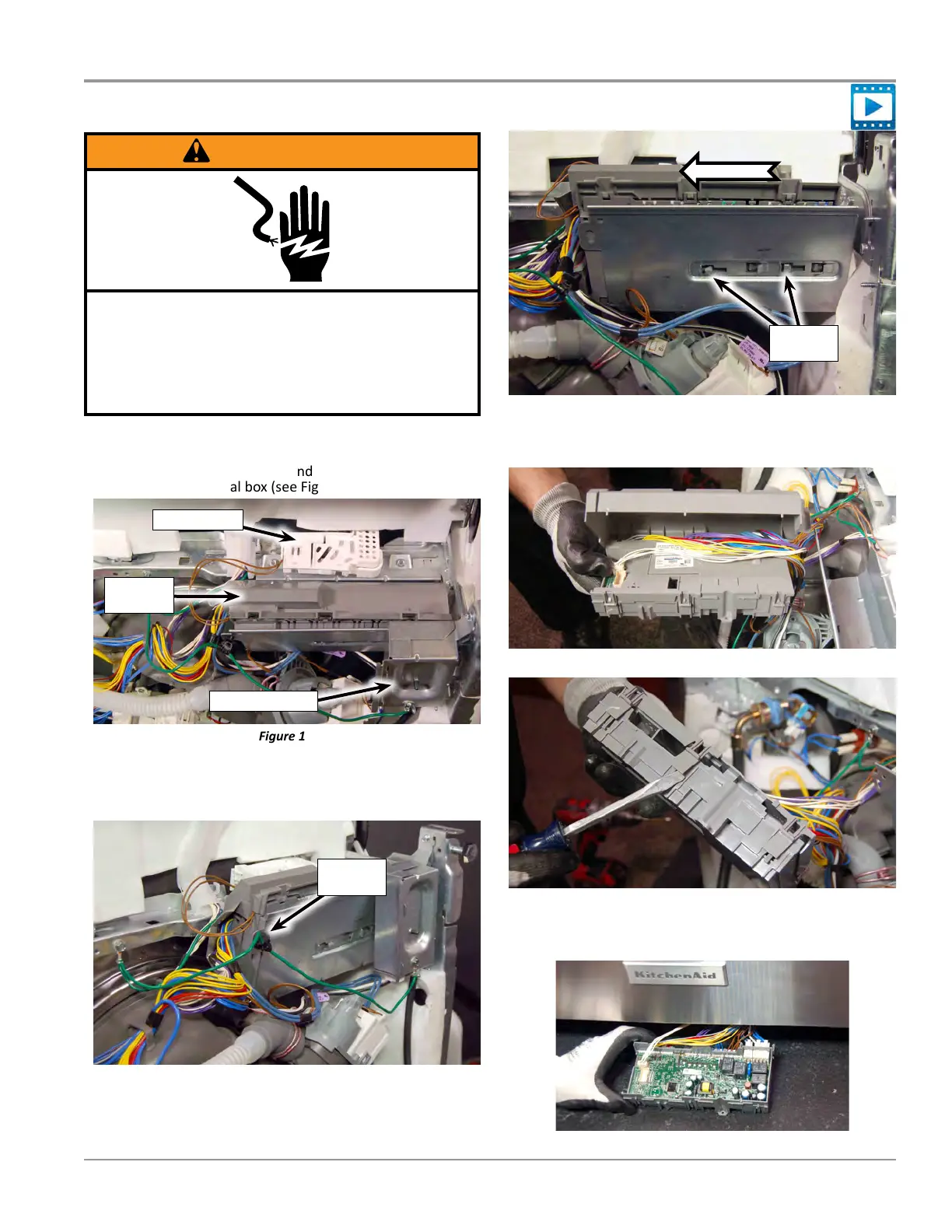

Removing the Electronic Control
The electronic control is located under the tub between the
oat switch and terminal box (see Figure 1).
Figure 1
1. Unplug dishwasher or disconnect power.
2. Remove the ground wire clip from control mount bracket,
(see Figure 2).
Figure 2
3. Slide electronic control to the le to disengage tabs from
control bracket, (see Figure 3). Remove control assembly.
NOTE: Terminal box removed to show control tab locaons.
Removing Electronic Control
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Figure 3
4. Remove covers to access electronic control assembly, (see
Figures 4 & 5).
Figure 4
Figure 5
NOTE: The wiring harness provides enough length to access and
test the control from the front of the dishwasher. See Figure 6.
Figure 6
Float Switch
Electronic
Control
Terminal Box
Ground
Wire Clip
Control
Tabs
