KitchenAid 2015 Microltration Dishwashers
COMPONENT ACCESS
Remove Diverter Cover:

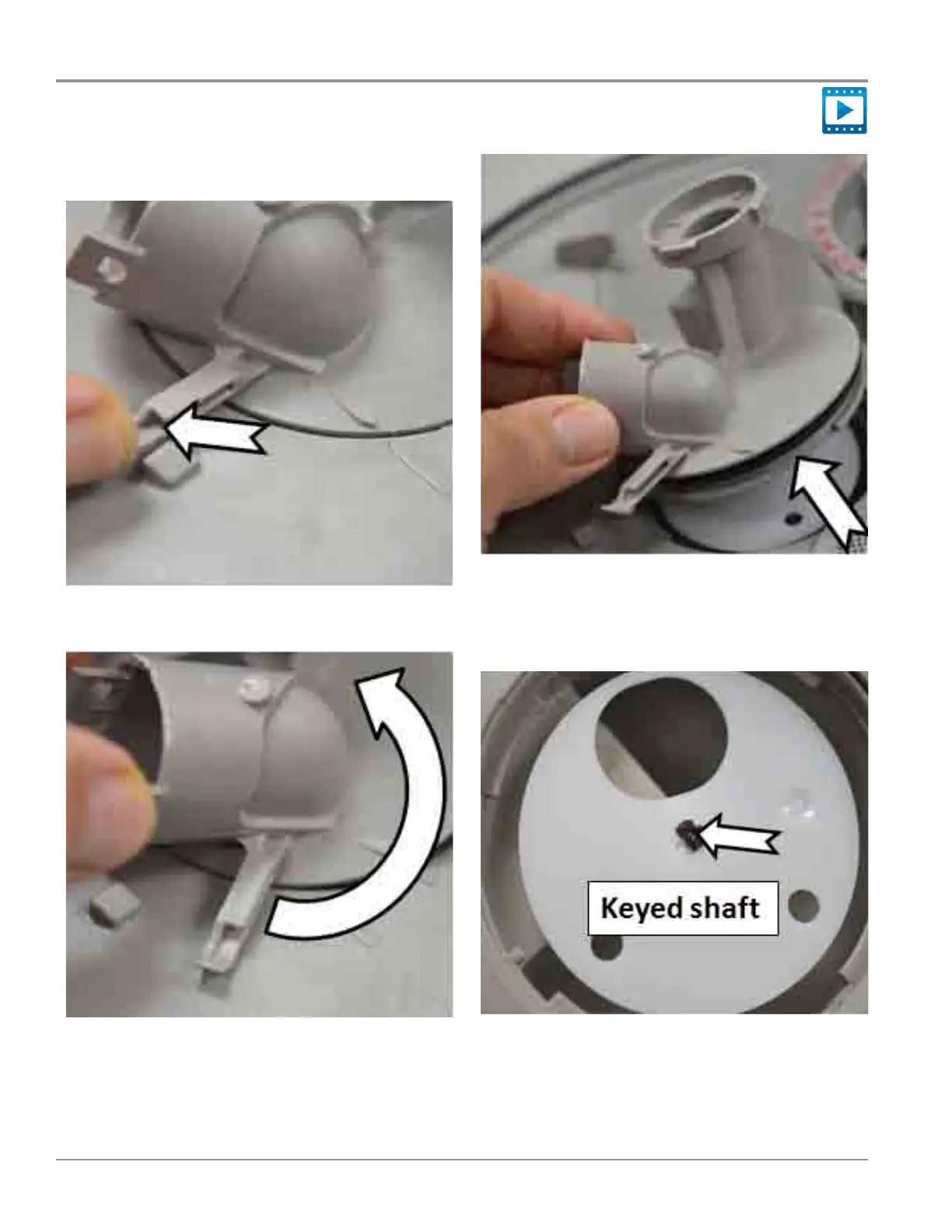

1. Release the lock on the diverter housing, (see Figure 1).
Figure 1
2. Rotate the housing counterclockwise, (see Figure 2).
Figure 2
Removing Diverter Disk
3. Li out the housing, (see Figure 3).
Figure 3
Diverter Disk:
4. The diverter disc aaches to a keyed sha, (see Figure 4).
Figure 4
connued....
