KitchenAid KDTM404EWH Technical Education

COMPONENT ACCESS
KitchenAid 2015 Microltration Dishwashers
n
4-17

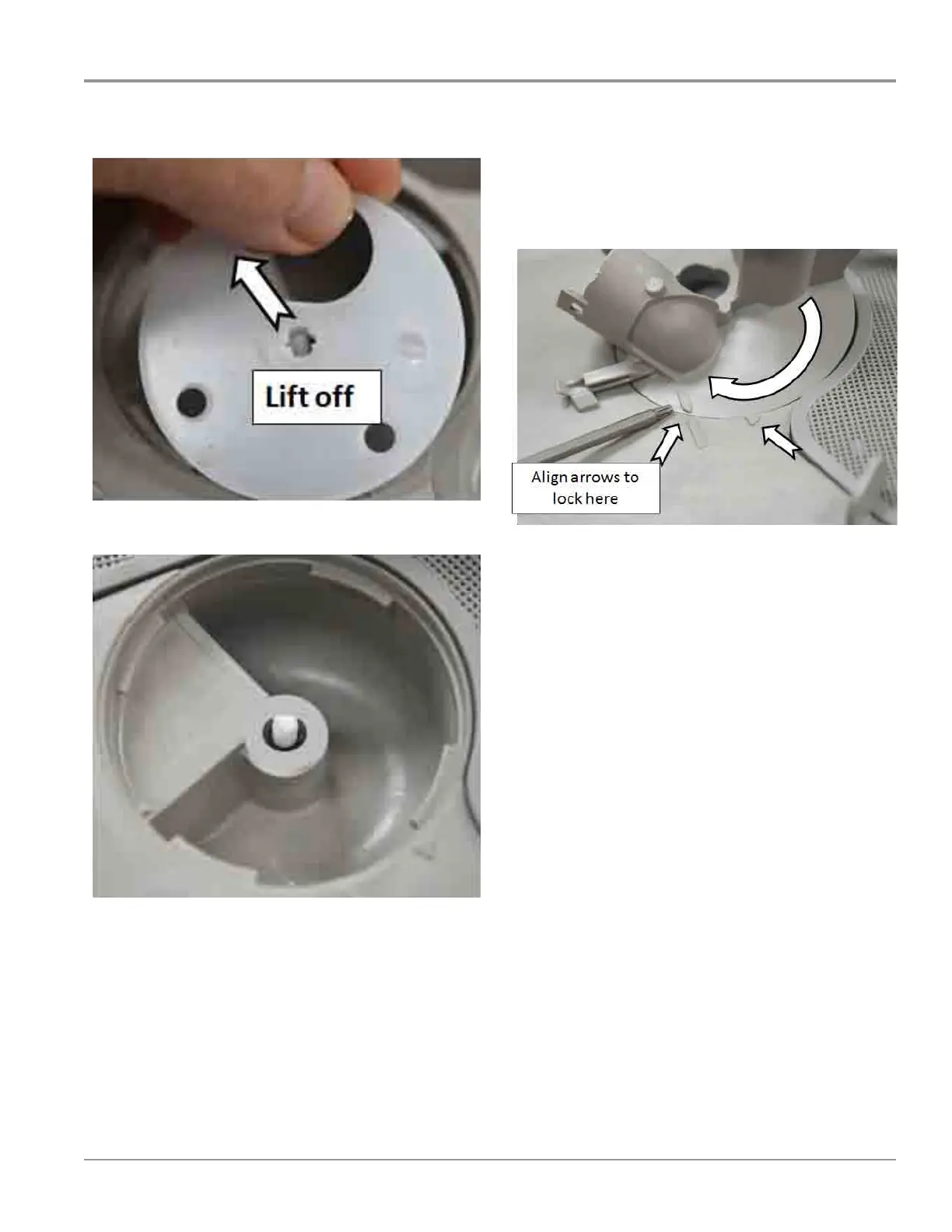

Removing Diverter Disk (continued)
5. Lift off the disc, (see Figures 5 and 6).
Figure 5
Figure 6
Install Diverter Cover
1. Align the arrow on the diverter housing to the lower
arrow on the sump.
2. Rotate the housing clock wise unl the diverter housing
locks in place, (see Figure 7).
Figure 7
