KitchenAid 2015 Microltration Dishwashers
COMPONENT ACCESS
Removing Heater Assembly
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

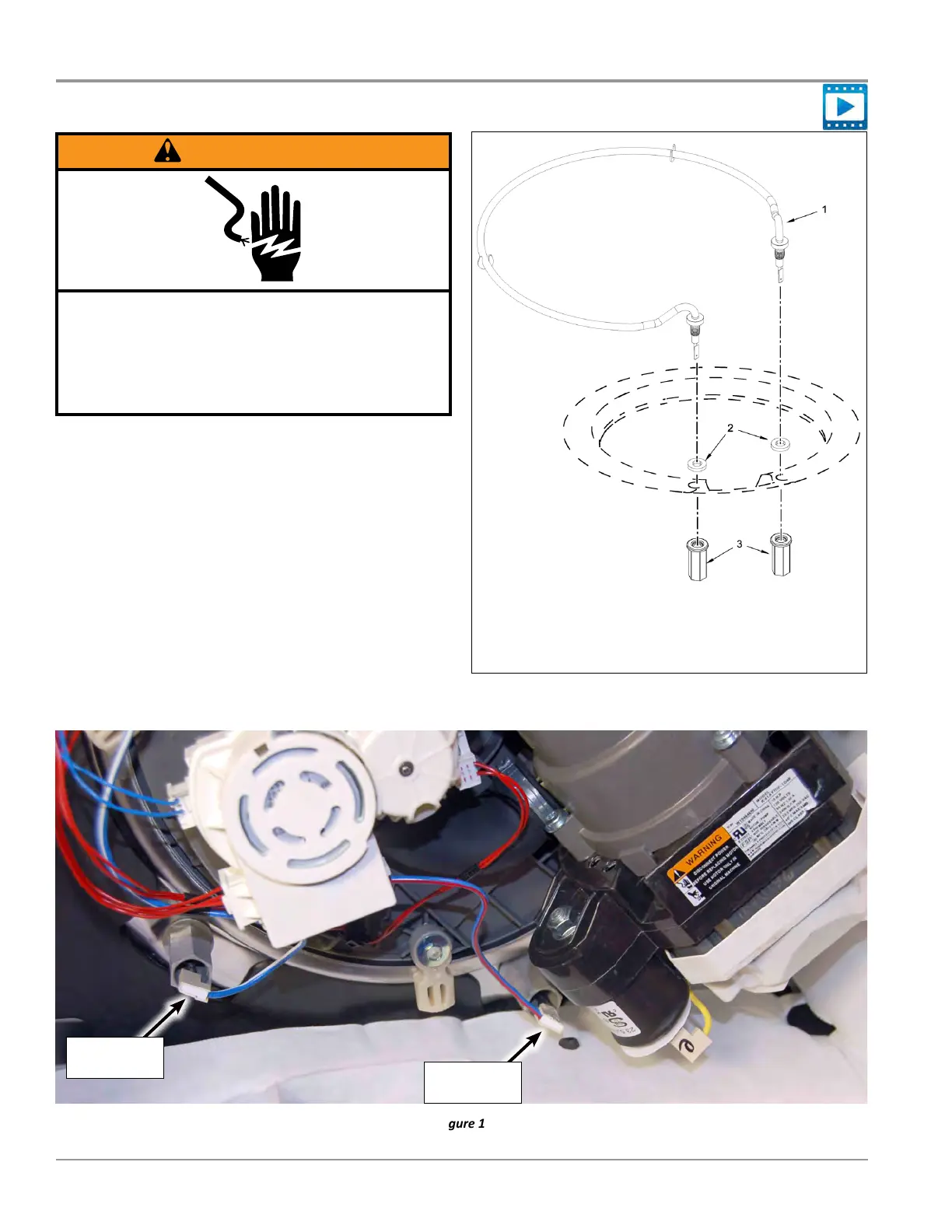

Removing the Heater Assembly
1. Unplug dishwasher or disconnect power.
2. Disconnect wires from both heater terminals (see Figure 1).
3. Remove both heater element nuts (see Figure 2).
4. Remove heater element assembly from tub.
Figure 1
Heater
Connector
Heater
Connector
Figure 2
Heater Components
1. Heater Element Assembly
2. Heater Washer
3. Heater Element Nut
