Removing Sump Assembly (continued)
7. With the sump assembly ipped over inside the tub,
disconnect the following harness:

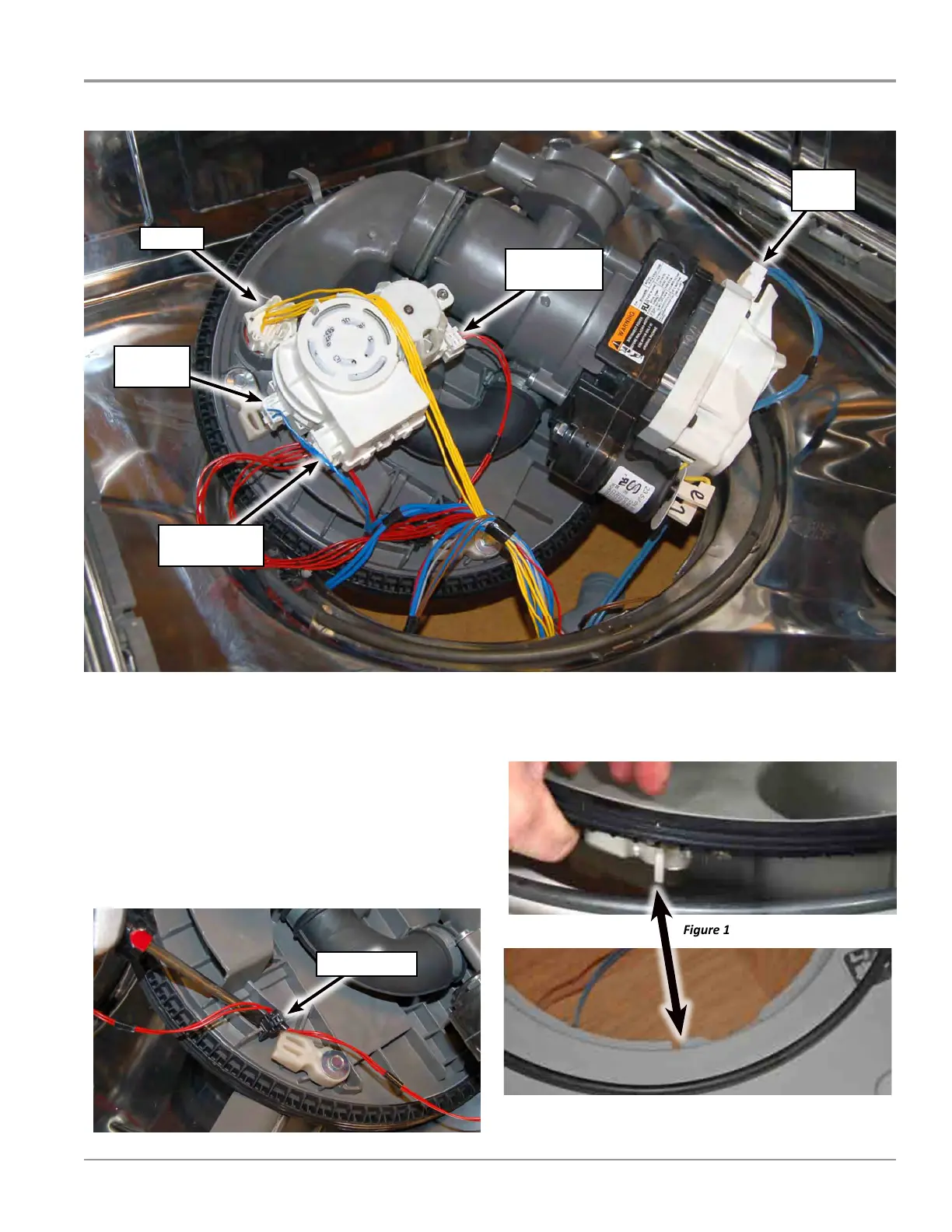

Refer to Figure 9 for harness locaons:
n diverter posion switch harness
n diverter motor harness
n lower spray arm motor harness
n wash motor harness
n OWI harness (or remove OWI from sump)
8. Pry o harness clip from sump (see Figure 10). Remove
sump assembly from dishwasher.
Figure 10
Figure 9
NOTE: When reinstalling the sump assembly, align the tab on
the assembly with the slot in the tub. See Figures 11 and 12.
Figure 11
Figure 12
Lower Spray
Arm Motor
OWI
Diverter
Motor
Wash
Motor
Diverter
Position Sw
Harness Clip
