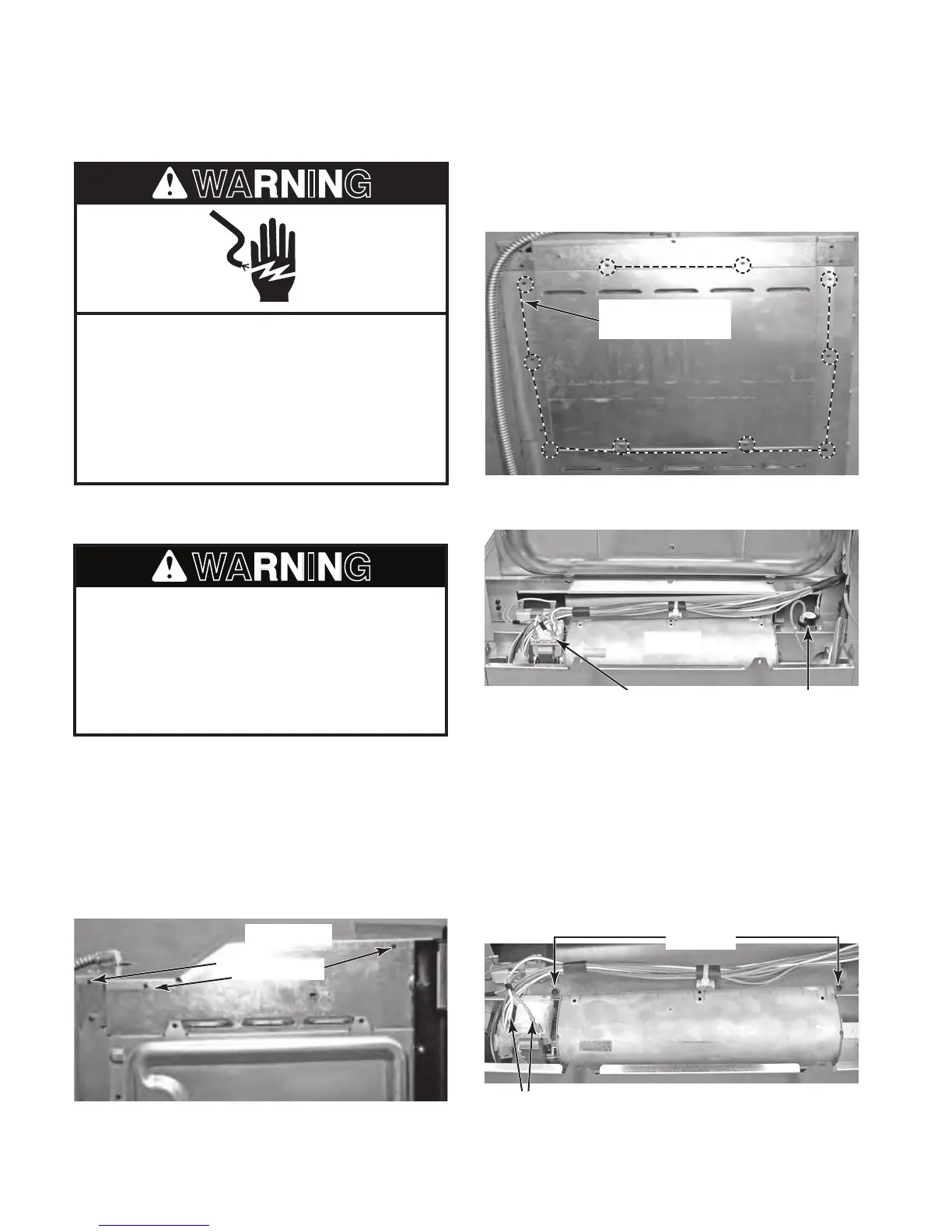

REMOVING BLOWER ASSEMBLY, BLOWER SPEED
RESISTOR, AND OVEN THERMAL CUTOFF
4. Remove the twelve screws from the rear
cover of the oven and remove the cover.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Rear Cover
(12 Screws)
1. Unplug oven or disconnect power.
Blower Motor Oven Shutdown
TCO
5. To remove the blower assembly:
a) Disconnect the white and gray wires
from the blower motor terminals.
b) Remove the two screws from the blower
brackets.
c) Pull back on the blower assembly while
rotating it upwards and remove the as-
sembly.
Blower Motor Wires
Screws
Blower
Top Cover
Screws (3 of 6)
2. Remove the oven from its mounting location
(see “Installation Information” in Section 2)
and pull it forward so that you can access
the top cover.
3. Remove the six screws from the top cover
Excessive Weight Hazard
Use two or more people to move and
install oven.
Failure to do so can result in back or
other injury.
To Next Page
