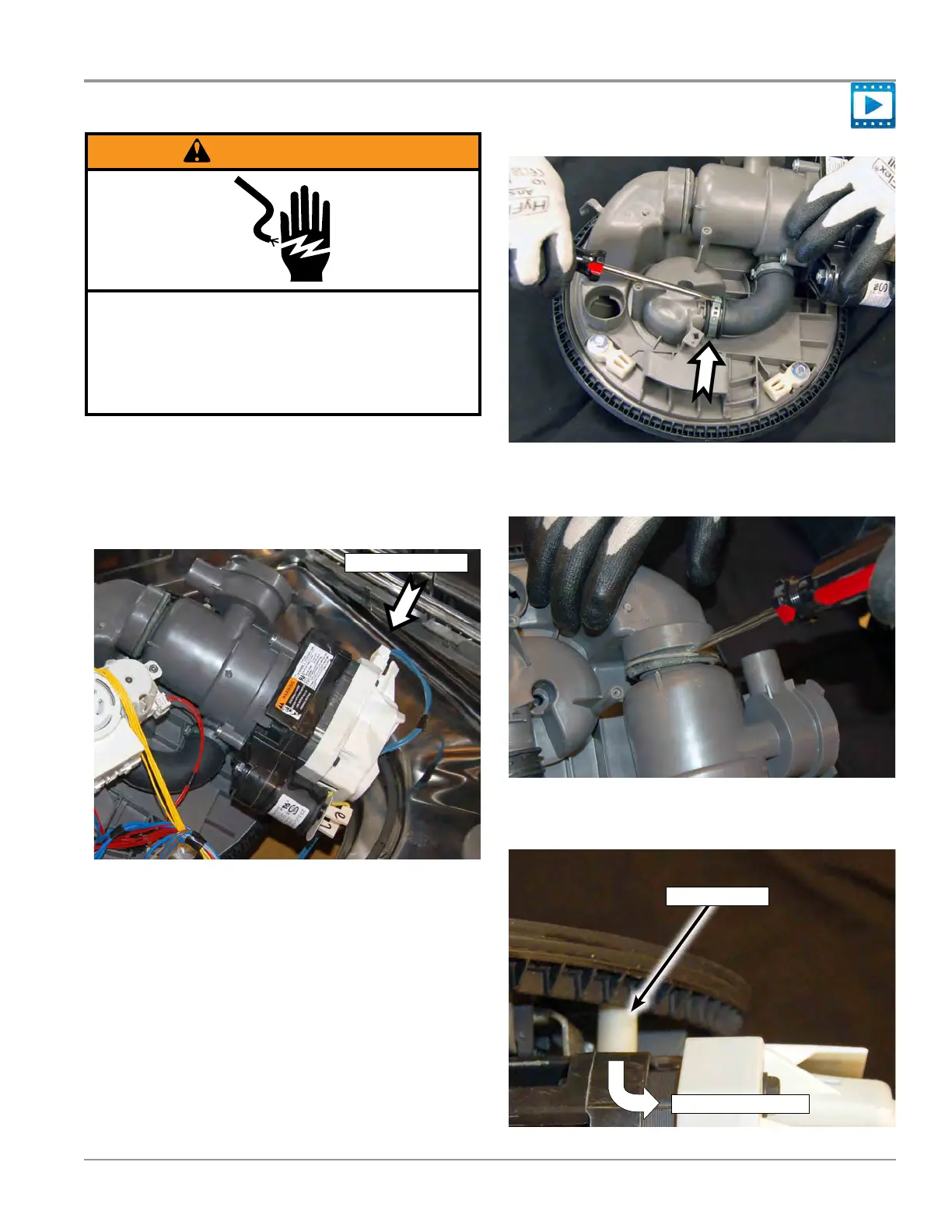

Removing Wash Motor & Rotating Inlet Filter
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Removing the Wash Motor
1. Unplug dishwasher or disconnect power.
2. If not done already, disconnect the wash motor harness.
(See gure 1.)
Figure 1
3. Remove clamp from sump side of hose (see Figure 2).
1. Unplug dishwasher or disconnect power.
Figure 2
4. Use a screwdriver to gently loosen the seal between the
grommet and the sump assembly (see Figure 3).
Figure 3
5. Pull down slightly on wash motor so that the isolator tube
(see Figure 4) clears the sump edge gasket.
Figure 4
Isolator Tube
Remove Harness
Pull DOWN and OUT
