COMPONENT ACCESS
KitchenAid 2015 Microltration Dishwashers
n
4-5
Overll Assembly Components

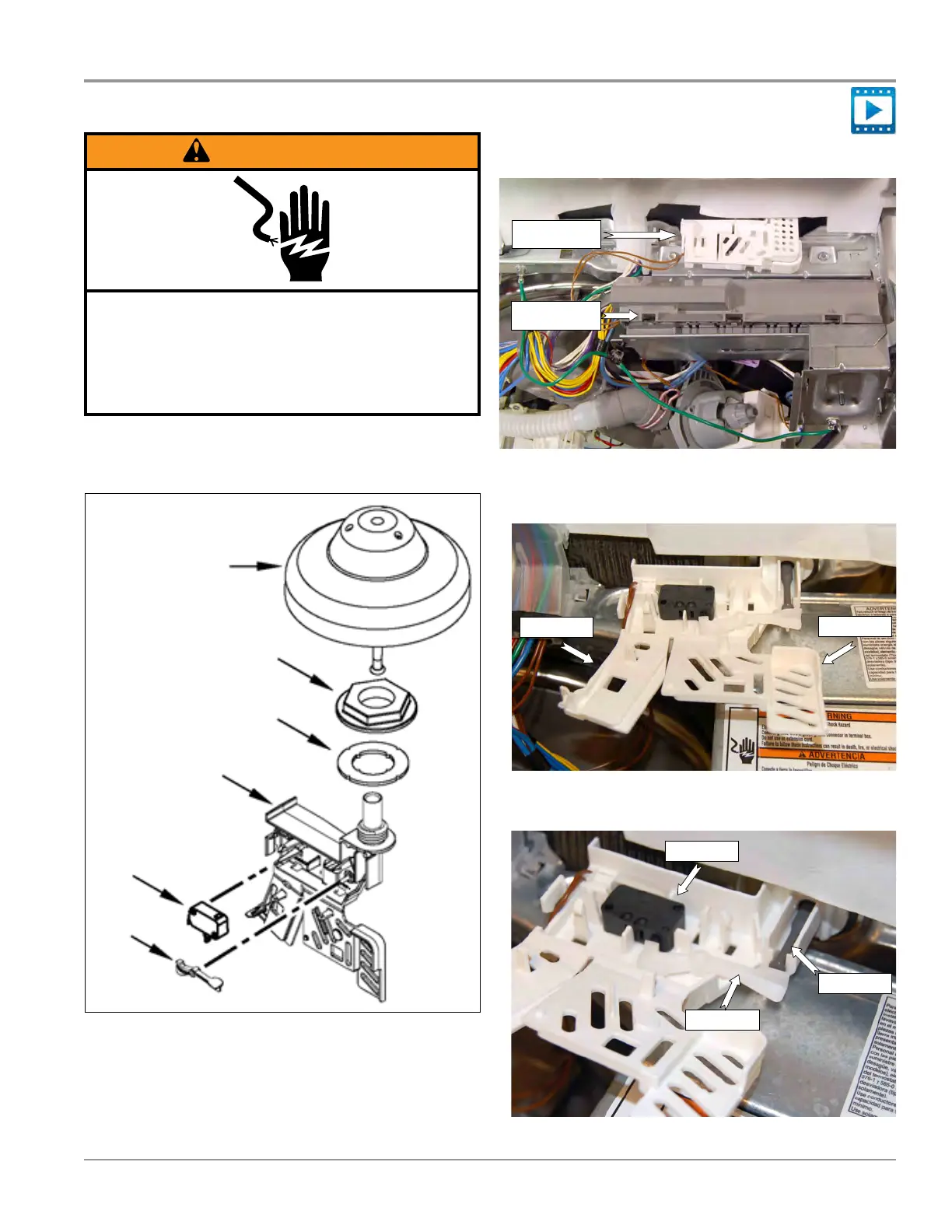

Figure 1
Accessing Overll Assembly
Figure 2 - Location of Overfill Assembly
1. Unplug or disconnect power.
2. Open right and le side covers, (see Figure 3).
Figure 3
Locaon of oat switch components. See Figure 4.
Figure 4
Overfill Assembly
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Left Cover
Right Cover
Float Switch
Float Stem
Switch Lever
Float
Housing and standpipe
Switch
Switch Lever
Standpipe nut
Flat Gasket
Control
Overfill
