KitchenAid 2015 Microltration Dishwashers
GENERAL INFORMATION
New Components
Advanced ProDry™ (Side Dry)
The Advanced ProDry Opon uses a heang element, plus
a system of vents and a fan on the side of the tub to ensure
eecve drying for all items.
1. Humid air is drawn into a side vent by a fan.
2. Dry air mixes with humid air to improve drying
performance.
3. Air is exhausted into the kitchen through boom front vent.
1
2
3

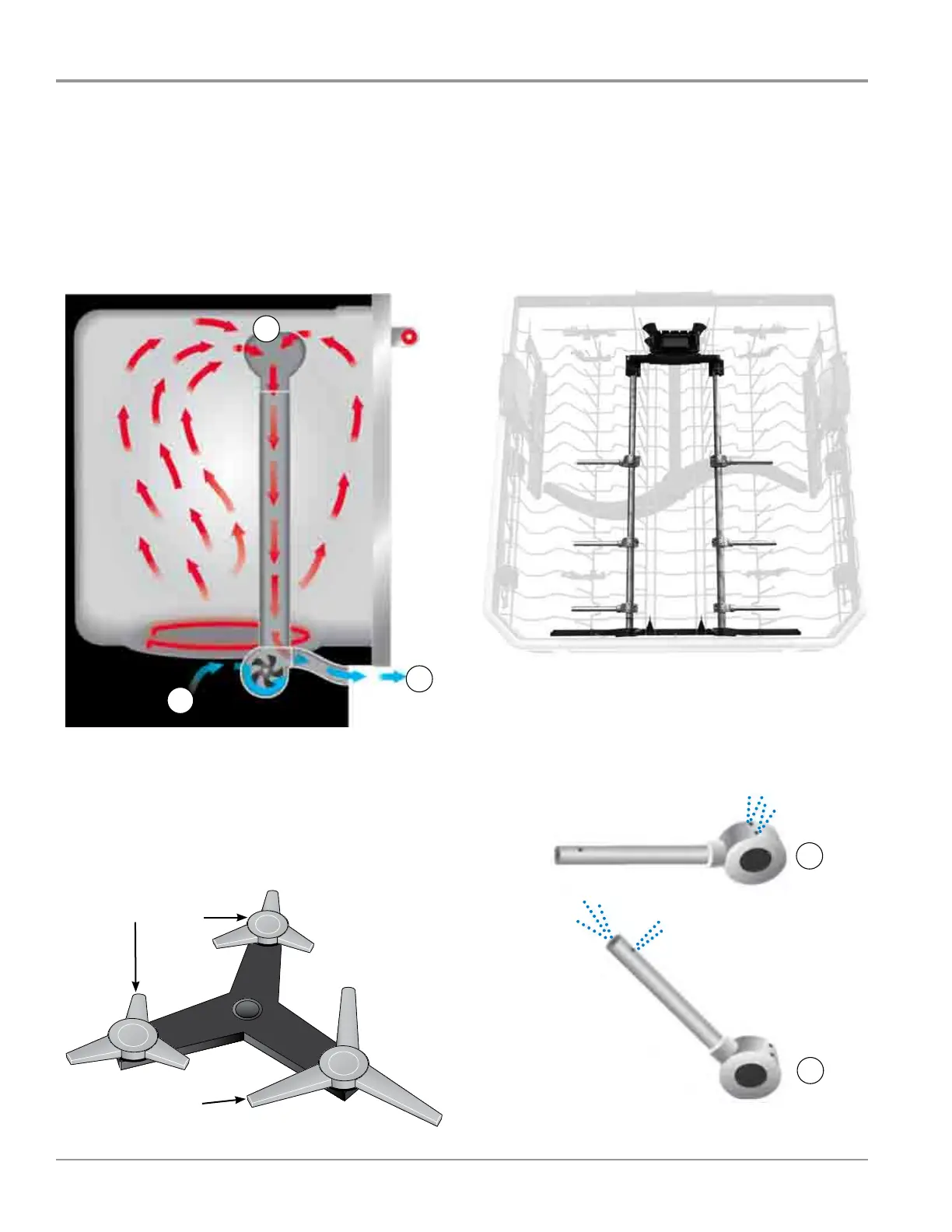

Figure 2 - Advanced ProDry™
Dynamic Wash Arm
Nine arms provide complete water coverage to get every dish
clean no maer the placement on the rack. The unique nozzle
spacing directly sprays even hard-to-reach places to get every
dish clean.
$YNAMIC,OWER3PRAY!RM
ONSOMEMODELS
The Dynamic Lower Spray Arm is motor driven and will not spin unless
the dishwasher is running.
The motor assures just the right spin for thorough and effective
cleaning.
NOTE: If the spray arm becomes blocked for any reason during the
cycle, you may hear a ticking sound. Open the dishwasher and remove
the blockage. Press START/RESUME and close the door to continue
the cycle.
5SINGTHE"OTTLE7ASH&EATURE
ONSOMEMODELS
Up to 6 sports bottles, baby bottles or other narrow items may be
washed in the upper rack with this feature.
To wash bottles:
1. Select BOTTLE WASH on the control panel.
2. Flip up any or all six of the nozzles just far enough to fit inside
your particular item.
3. Securely place items over the nozzles.
When you do not need to wash bottles, flip the nozzles down until they
stop.
7INDOWAND,IGHTSIN$ISHWASHER
ONSOMEMODELS
The window allows you to
see the interior lights come
on to signal the end of the
cycle. The interior lights will
go out automatically after 10
minutes of inactivity.
#LEANING!DVANCED2ACKSONSOMEMODELS
If you would like to clean hard water filming or other soil buildups from
the interior surfaces of the dishwasher, we recommend using a
monthly maintenance product such as affresh® Dishwasher Cleaner. If
you desire routine cleaning, use a soft damp cloth.
4IME$ISPLAY
The Time Display is used for
estimated cycle time and also for
delay hours. Estimated cycle time is
displayed in hours and minutes as
you make cycle and option selections
to give an estimate of how long the
cycle will last.
When you use the delay feature the
time display will give you hours only
followed by an “H”.
7(!43.%7).9/52
$)3(7!3(%2
A. Water flows through these holes when the nozzle is flipped down.
B. Water flows through these holes when the nozzle is flipped up.
A
B
Small secondary arms - timed
out of phase with larger arm to
optimize side wall coverage.
Large secondary arm -
engineered nozzle spacing to
optimize corner coverage.
Figure 3 - Dynamic Wash Arm
ProScrub® Trio Bottlewash
The ProScrub® opon helps eliminate soaking and pre-
scrubbing by using a system of 40 jets to create a powerful,
targeted wash zone on the upper dishwasher rack. These jets
power away tough baked- and caked-on foods.
Three articulating nozzles on each side. (See Figure 4)
Figure 4 - ProScrub® Trio
A: When the nozzle is in the horizontal posion, water sprays
from the base.
B: When the nozzle is rotated upwards, water sprays from
top of the nozzle.
Figure 5 - Bottlewash Nozzles
B
A
