KitchenAid 2015 Microltration Dishwashers
COMPONENT ACCESS
Advanced ProDry™ (Side Dry)
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.

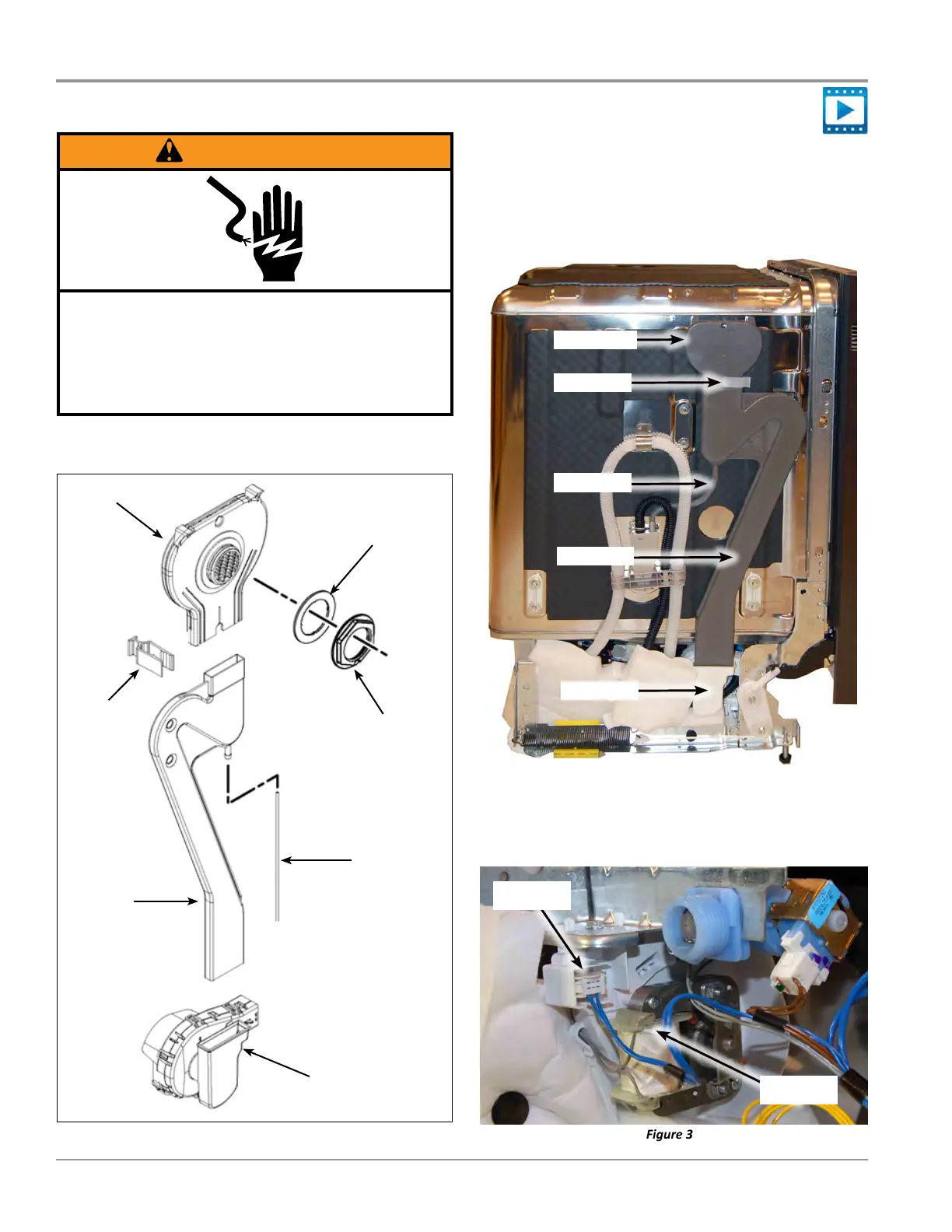

Advanced ProDry™ Components
Advanced ProDry™ Components
1. Unplug dishwasher or disconnect power.
2. Access ProDry™ components on le side of tub (see
Figure 2). To disassemble ProDry™ components; unscrew
air assembly nut from inside tub, disconnect vent hose,
then slide exhaust tube and air outlet assembly up and
out of blower assembly to remove.
Figure 2
3. From underneath the tub, disconnect the harness and remove
the blower vent from the Blower Assembly (see Figure 3).
4. Remove the two (2) 1/4” screws securing Blower Assembly
to dishwasher and remove assembly (see Figure 3).
Figure 3
Figure 1
Air Outlet Ass’y
Rubber Seal
Air Assembly Nut
Retainer Clip
Exhaust Tube
Vent Hose
Blower Ass’y
Air Outlet Ass’y
Retainer Clip
Vent Hose
Blower Ass’y
Exhaust Tube
Blower
Connector
Blower
Assembly
