COMPONENT ACCESS
KitchenAid 2015 Microltration Dishwashers
n
4-21
Remove Drain Pump

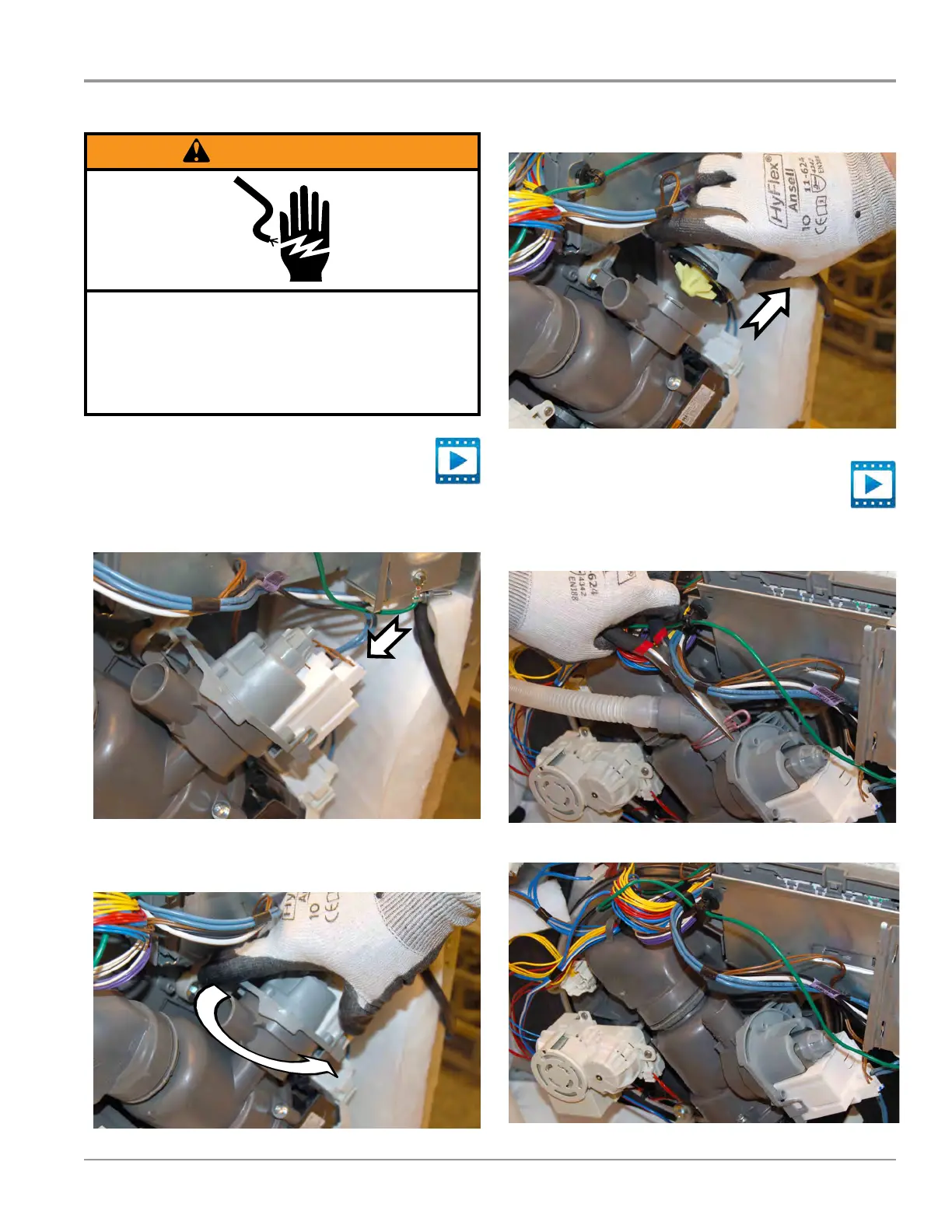

1. Unplug dishwasher or disconnect power.
2. Unplug the wire harness connected to the drain pump,
(see Figure 1).
Figure 1
3. Rotate the drain pump 1/4 turn counter clockwise, (see
Figure 2).
Figure 2
Removing Drain Pump & Sump Assembly
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
4. Remove the drain pump, (see Figure 3).
Figure 3
Remove Sump Assembly
1. First perform “Remove Drain Pump” procedure.
2. Release hose clamp and pull o the hose, (see Figures 1
and 2).
NOTE: Be prepared to catch the water from the sump area.
Figure 1
Figure 2
