KitchenAid 2015 Microltration Dishwashers
COMPONENT ACCESS
Removing Drain Pump & Sump Assembly (continued)

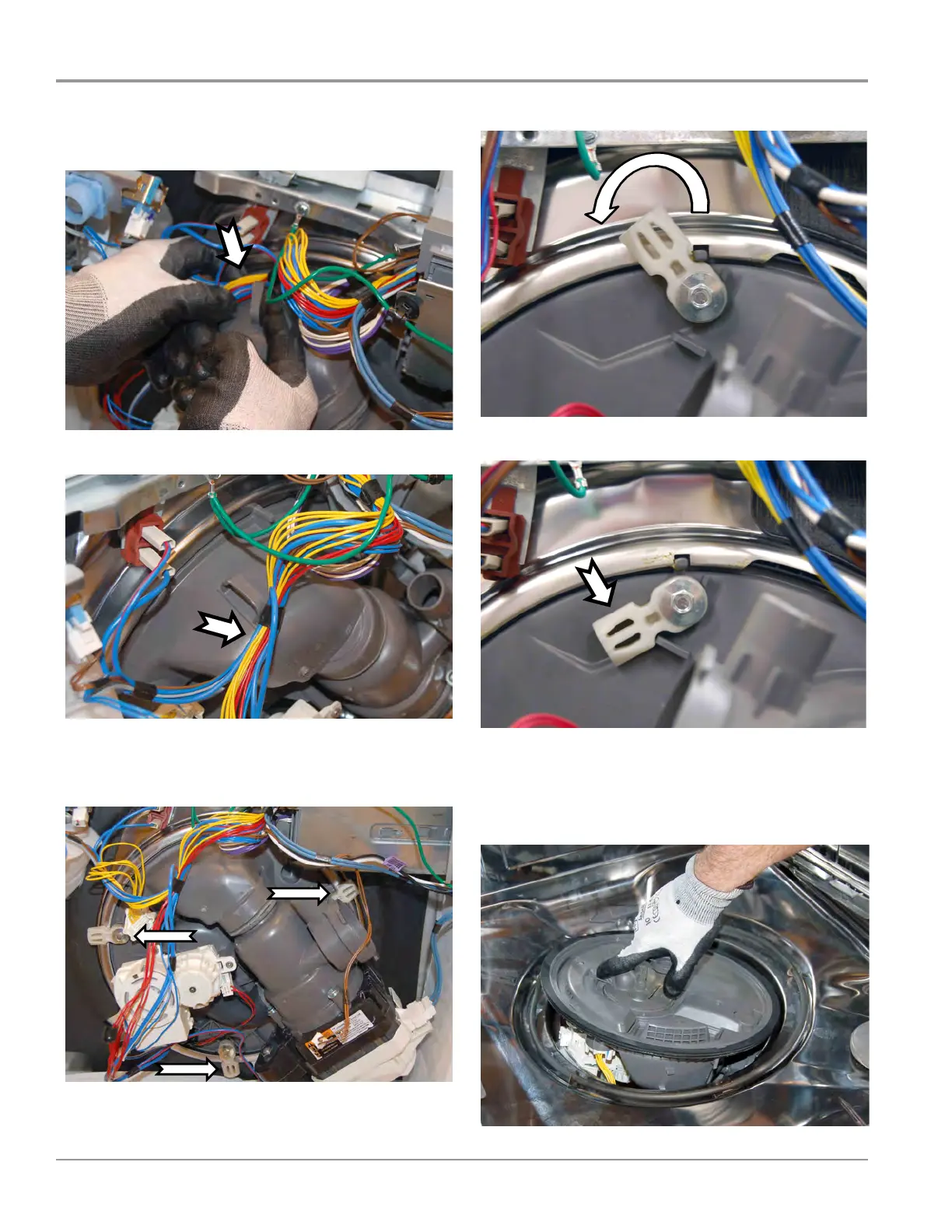

3. Remove the wire harness from the bracket on the side of
the sump and move o to the side, (see Figures 3 and 4).
Figure 3
Figure 4
4. Unlock the three tabs securing the motor and sump
assembly to the tub, (see Figures 5, 6 and 7).
Figure 5
Figure 6 - Locked
Figure 7 - Unlocked
5. Push upward on sump, from the boom, to detach from
tub.
6. From inside the tub, lt the sump assembly and li out far
enough to ip sump over. See Figures 8 and 9.
Figure 8
To Next Page
