4-3

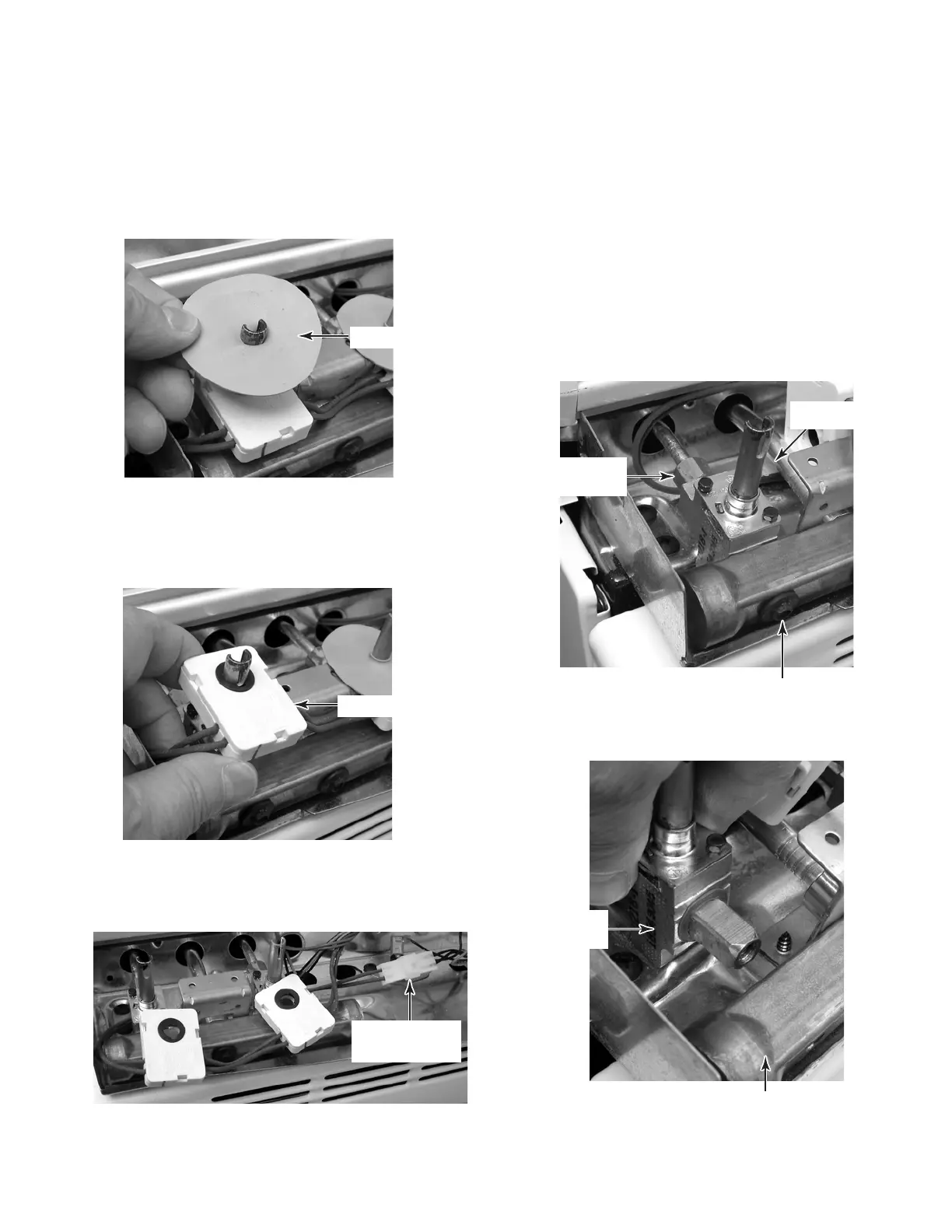

5. To remove the ignition switches:
NOTE: The ignition switches must be replaced
as an assembly. They cannot be replaced indi-
vidually.
a) Pull the rubber guard off each of the
valve stems.
6. To remove a gas valve:
a) Pull the rubber guard off the valve stem
(see step 5a).
b) Pull up on the ignitor switch and unsnap
it from the gas valve, then pull the
switch off the valve stem and remove it
(see step 5b).
c) Unscrew the 1/2″ gas line connector
from the gas valve.
d) Remove the 1/4″ hex-head gas valve
mounting screw and its rubber seal
from the front of the gas manifold.
b) Pull up on the ignition switches and
unsnap them from the gas valves, then
pull the switches off the valve stems
and remove them.
c) Disconnect the ignition switch wire con-
nector from the main harness and re-
move the ignition switches.
Rubber Guard
Ignition Switch
Ignition Switch
Connector
e) Pull the front of the gas valve out of the
manifold and remove the valve.
1/2″ Gas Line
Connector
Gas Valve Screw
Gas Valve
Gas Manifold
Remove
Gas Valve
Continued on the next page.
