WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Refer to page 4-12 for the procedure for servic-
ing the convection fan motor.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect one of the wires from the con-
vection fan motor.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
convection fan motor terminals. The meter
should indicate between 9 and 13 Ω.

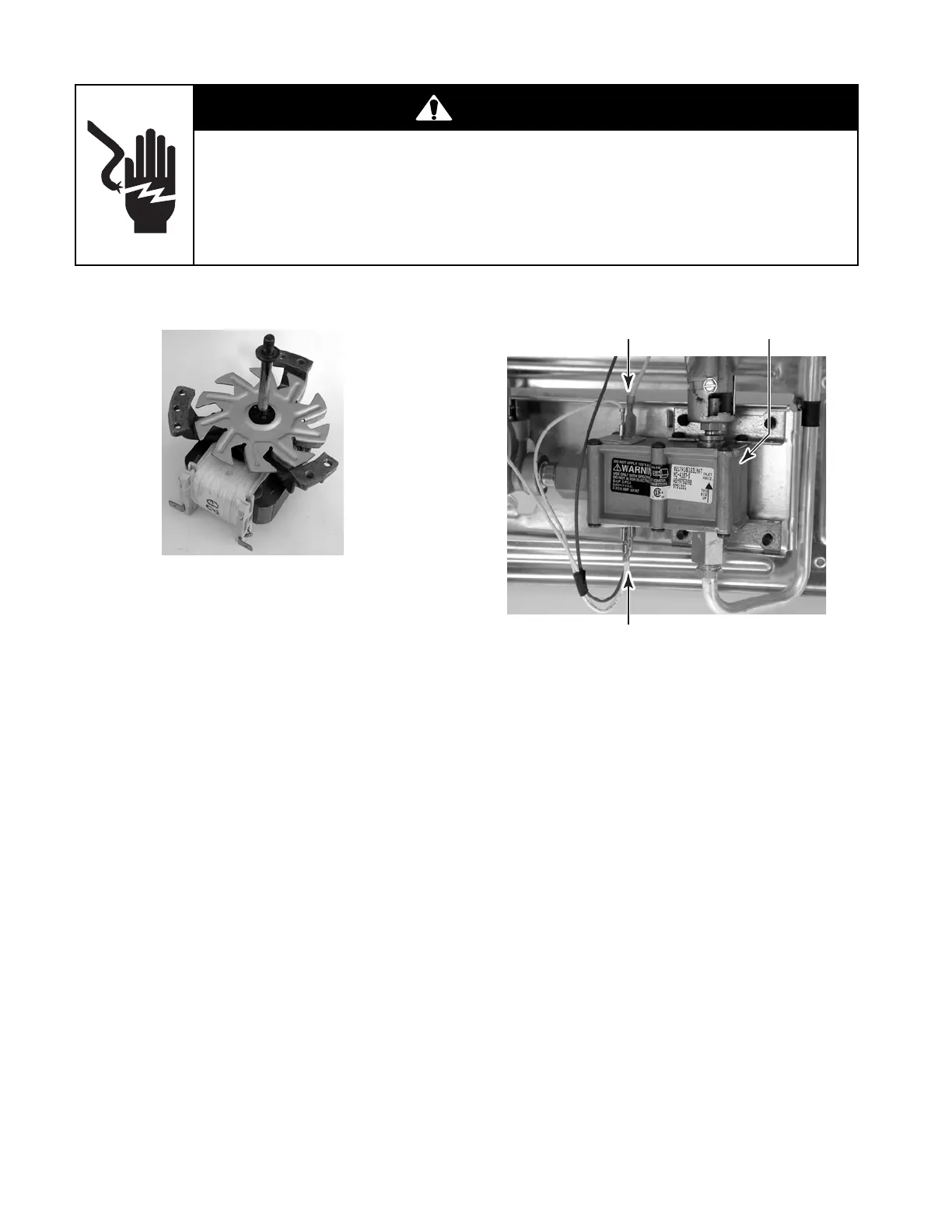

CONVECTION FAN MOTOR SAFETY VALVE
Refer to page 4-21 for the procedure for servic-
ing the safety valve. NOTE: The gas distribu-
tion valve and the safety valve are serviced as
an assembly, and not individually.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect one of the wires from the bake
or broil safety valve terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
bake or broil safety valve terminals. The
meter should indicate between 1 and 2 Ω.
Bake Wires
Broil Wires
Safety Valve
