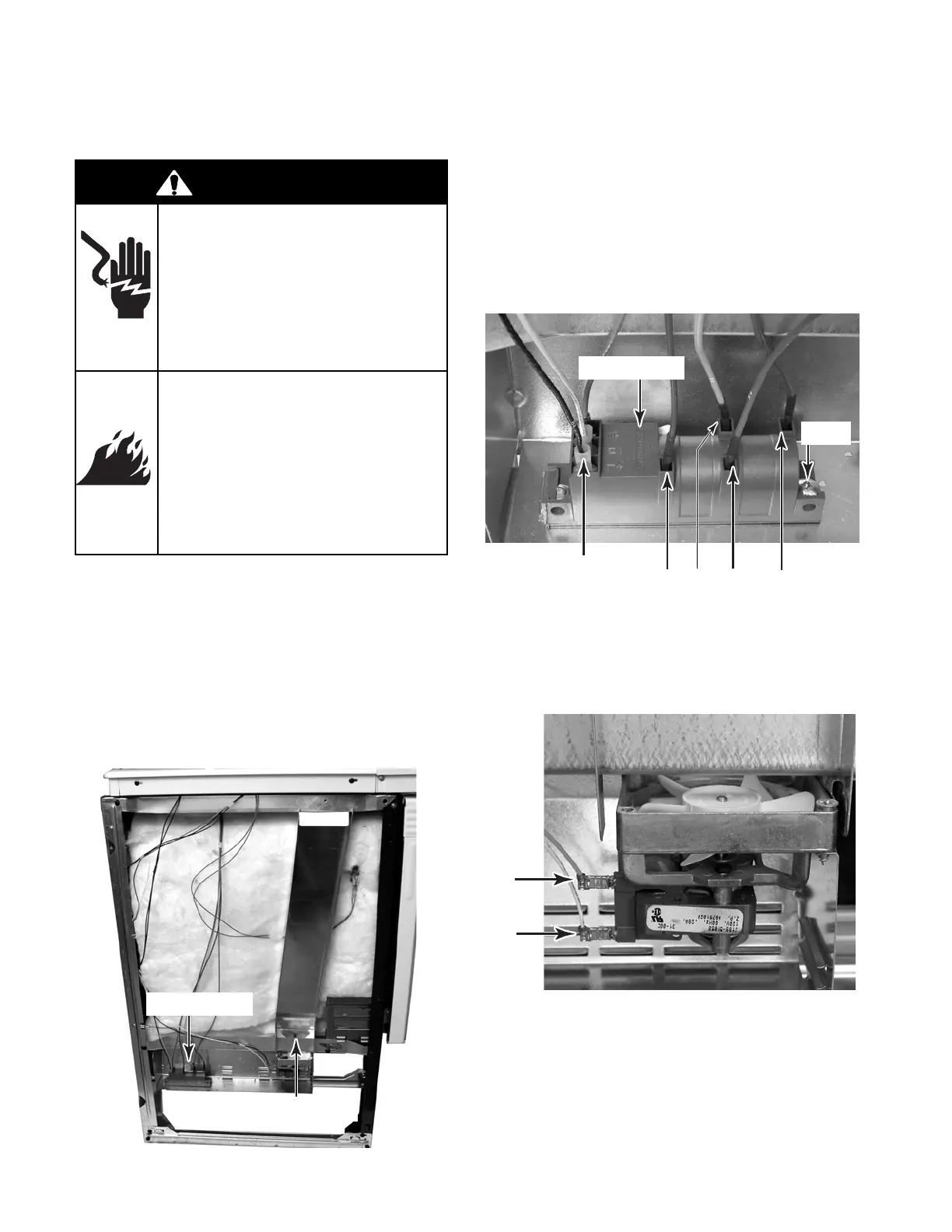

REMOVING THE SPARK MODULE
AND THE COOLING FAN MOTOR
5. To remove the spark module:
a) Disconnect the wire connectors from
the module terminals.
b) Remove the mounting screw, slide the
module out from under the tab, and
remove it from the housing.
Spark Module
Cooling Fan Motor
1. Turn off gas supply and disconnect power
to the range.
2. Open the oven door and remove the racks
from inside the oven.
3. Pull the range out of its mounting location
so that you can access the rear of the unit.
4. Remove the left side panel (see page 4-22
for the procedure).
Violet Yellow Blue Red
Black (+L)
White (–N)
Green (Gnd)
Screw
Spark Module
6. To remove the cooling fan motor:
a) Disconnect the wire connectors from
the cooling fan motor terminals.
Motor
Wires
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connec-
tions and replace all parts
and panels before operating.
Failure to do so can result in
explosion, fire or other injury.
