5. Use a 13 mm socket and remove the cap
nut (clockwise) from the convection fan,
then pull the fan off the convection fan
motor shaft.

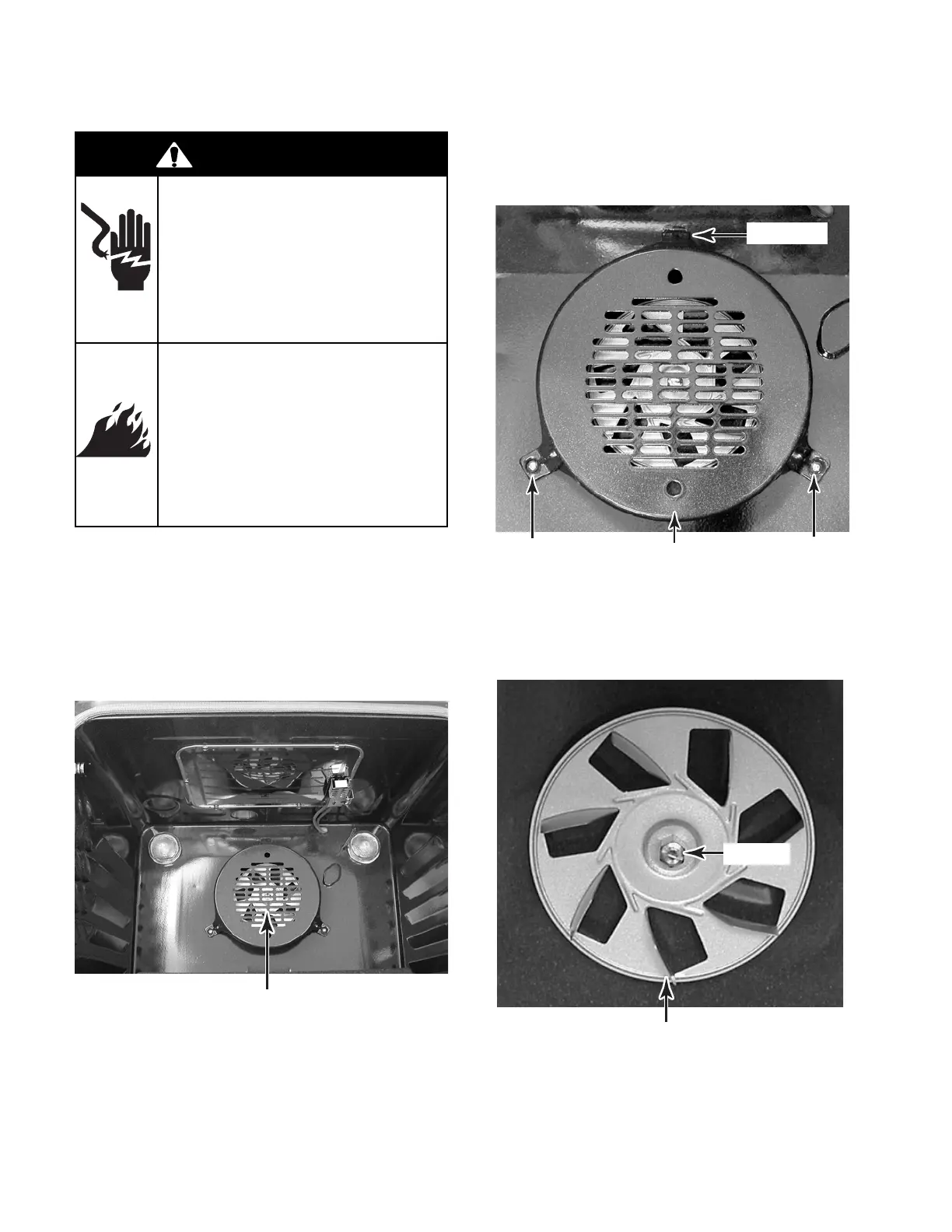

REMOVING THE CONVECTION FAN MOTOR
Screw &
Lockwasher
Convection Fan
Motor Cover
4. Remove the two screws from the convec-
tion fan motor cover, then unhook the tab
from the liner slot, and remove the cover.
Cover Tab
1. Turn off gas supply and disconnect power
to the range.
2. Pull the range out of its mounting location
so that you can access the rear of the unit.
3. Open the oven door and remove the racks
from inside the oven.
Screw &
Lockwasher
Convection Fan
Cap Nut
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connec-
tions and replace all parts
and panels before operating.
Failure to do so can result in
explosion, fire or other injury.
Convection Fan Motor
