REMOVING THE BROIL BURNER & IGNITOR
1. Turn off gas supply and disconnect power
to the range.
2. Pull the range out of its mounting location
so that you can access the rear of the unit.
3. Remove the rear panel (see page 4-5 for
the procedure).
4. Open the oven door and remove the racks
from inside the oven.

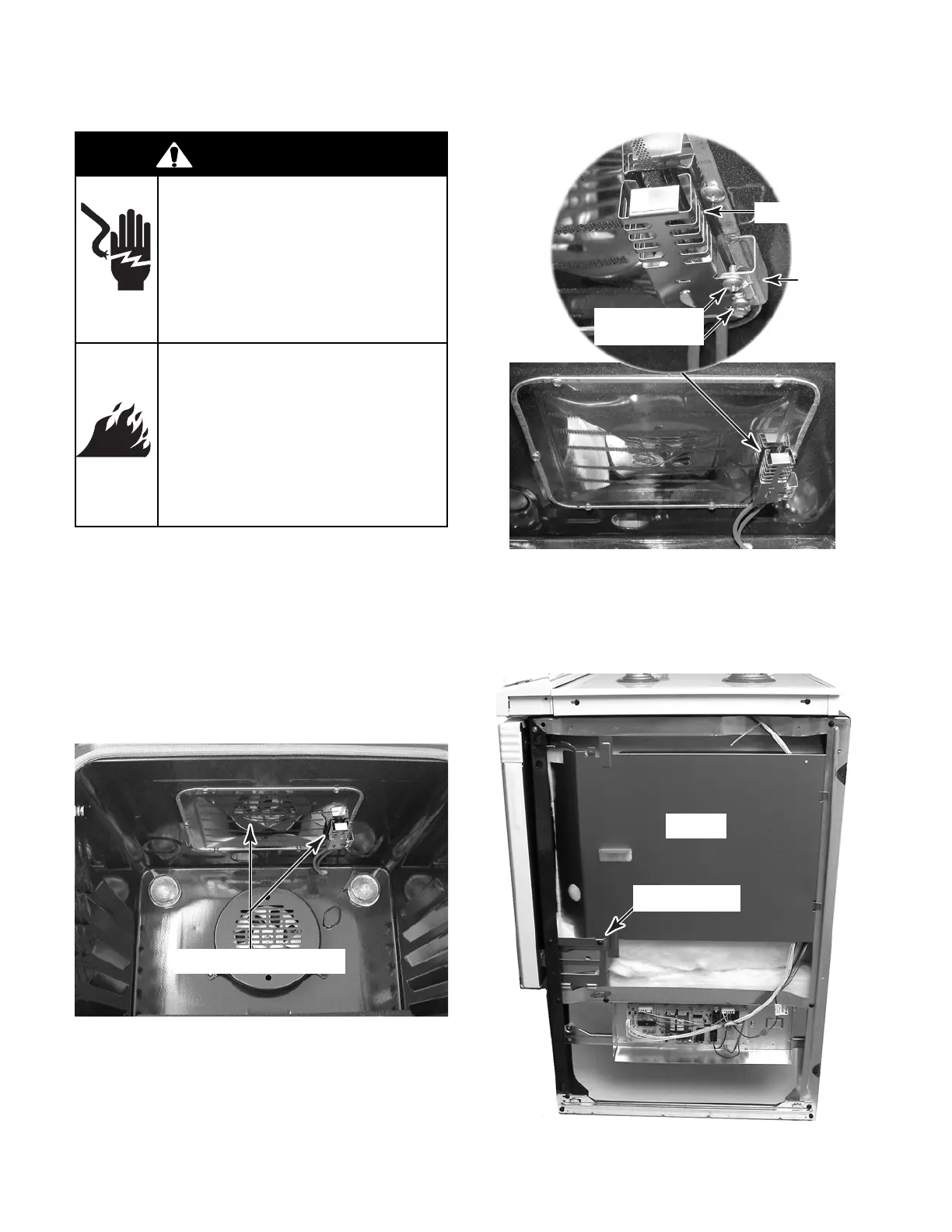

Broil Burner & Ignitor
5. To remove the broil burner ignitor:
a) From inside the oven, remove the two
screws from the broil burner ignitor,
and slide the ignitor out of the burner
bracket (see the inset photo at the top
of the next column).
Burner
Bracket
b) Remove the right side panel (see page
4-22 for the procedure).
c) Remove the screw from the shield and
remove the shield from the unit.
Broil Burner
Ignitor
Shield
Shield Screw
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connec-
tions and replace all parts
and panels before operating.
Failure to do so can result in
explosion, fire or other injury.
Broil Burner
Ignitor Screws
