4-17

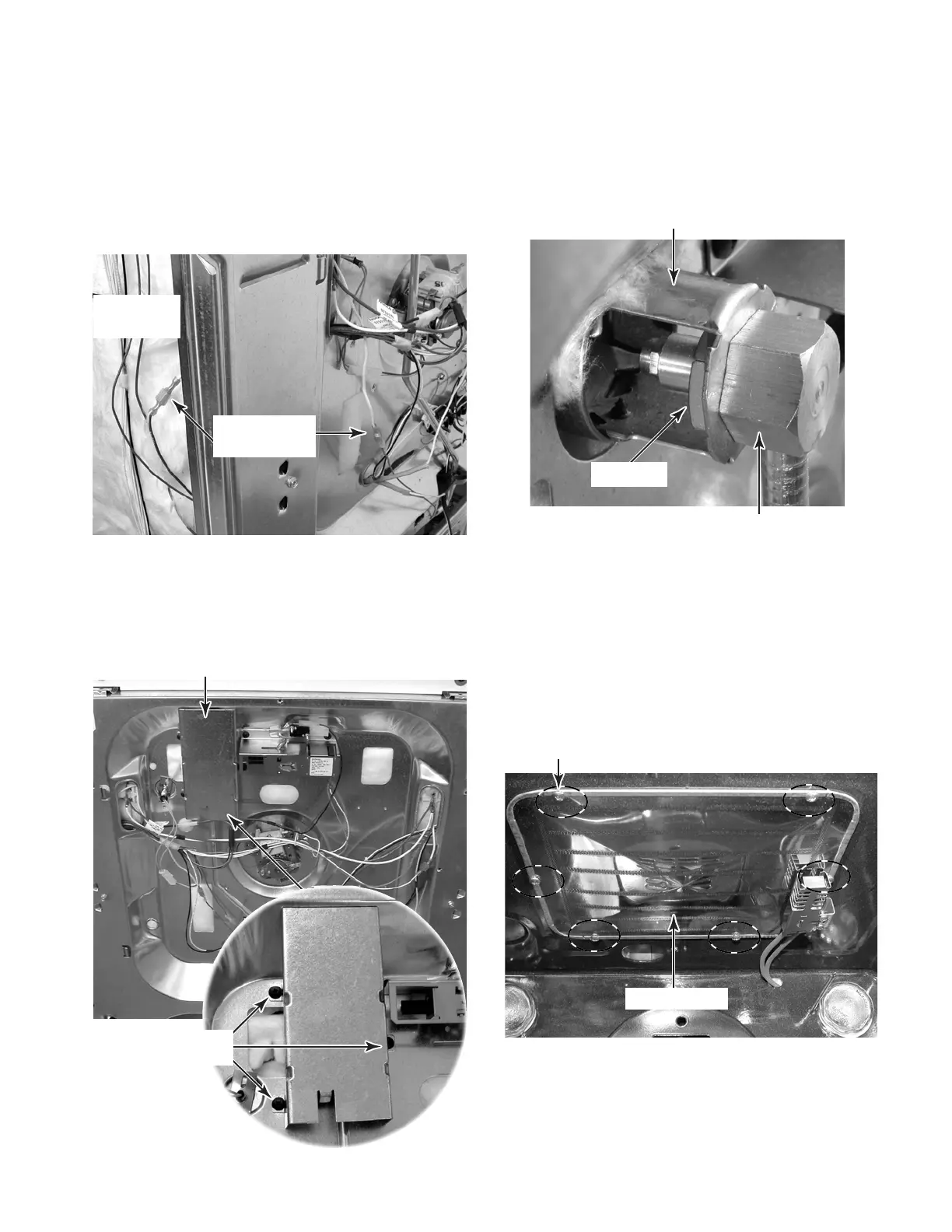

6. To remove the broil burner:
a) From the rear of the unit, remove the
three screws from the broil tube cover
and remove the cover.
b) Use a 15/16″ open end wrench and
loosen the hex nut from the gas con-
nector, then unscrew the nut with your
fingers, and remove it from the broil
burner bracket.
c) From inside the oven, remove the burner
ignitor from the broil burner bracket
(see page 4-16 for the procedure).
d) Remove the six screws and lockwash-
ers from the broil burner.
e) Pull the broil burner forward so that the
air shutter and bracket are free of the
oven cavity, and remove it.
Screws
Broil Tube Cover
Broil Burner Bracket
Hex Nut
Gas Line Connector
Screw & Lockwasher (1 or 6)
Broil Burner
d) Disconnect the two broil burner ignitor
wire connectors, (one on the right side,
and the other at the right rear of the
unit), from the violet wiring harness
connectors.
e) Pull the ignitor wires out of the unit and
remove the broil burner ignitor.
Ignitor Wire
Connectors
Right Side
Of Unit
To Next Page
