5-3
Refer to page 4-23 for the procedure for servic-
ing the door switch.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect one of the wires from the door
switch.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the door
switch terminals. The meter should indi-
cate an open circuit (infinite).
5. Press the actuator button and the meter
should indicate continuity (0 Ω).

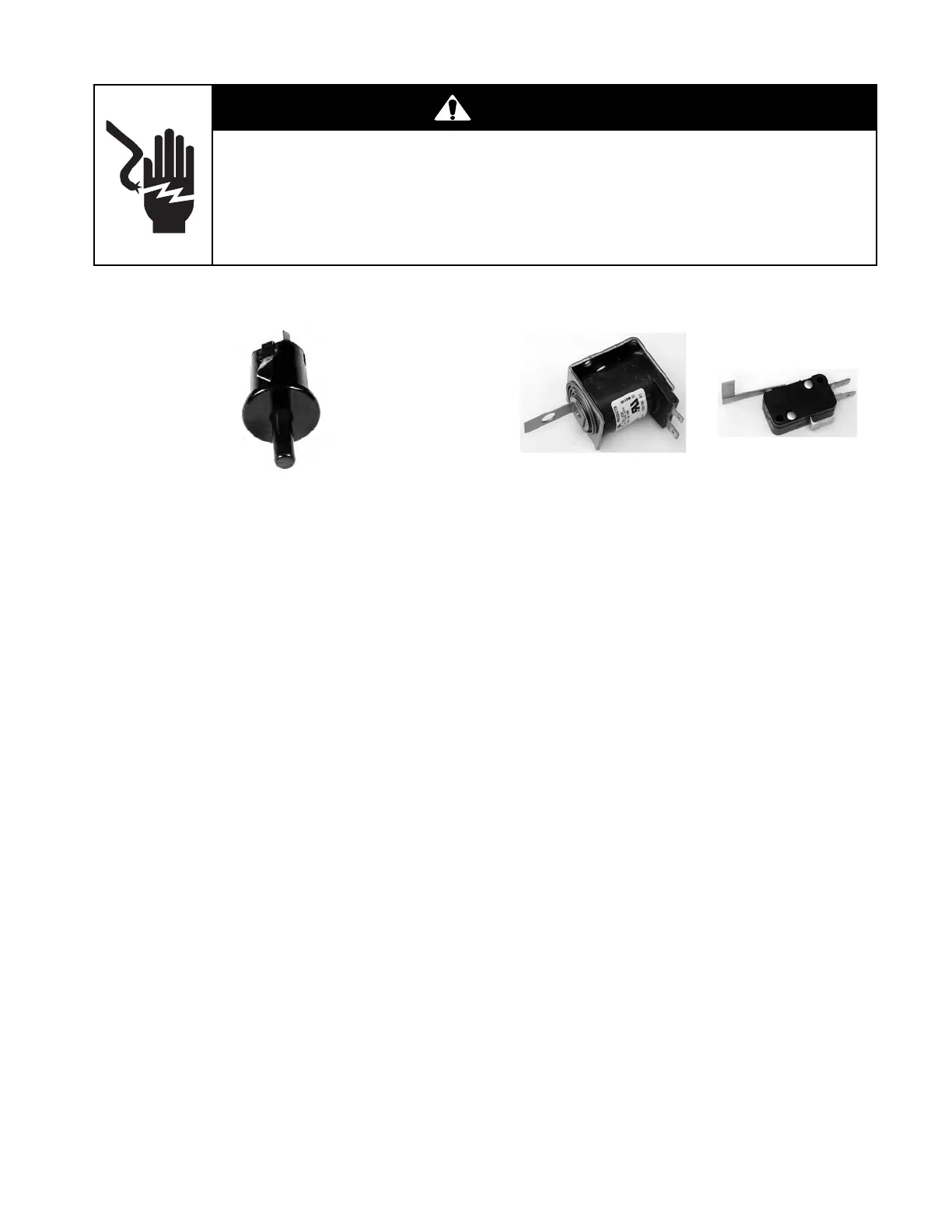

DOOR SWITCH (N.O.)
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Refer to page 4-5 for the procedure for servic-
ing the door latch assembly.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect one of the wires from the door
latch assembly component under test.
3. Set the ohmmeter to the R x 1 scale.
4. To test the solenoid, touch the ohmme-
ter test leads to the terminals. The meter
should indicate less than 1 Ω.
5. To test the door latch switch:
a) Touch the ohmmeter test leads to the
COM and N.O. terminals. The meter
should indicate an open circuit (infinite).
b) With the ohmmeter leads connected as
stated in the previous step, press the
switch actuator. The meter should in-
dicate continuity (0 Ω).
DOOR LATCH ASSEMBLY (N.O.)
Door Latch Solenoid
Door Latch Switch
