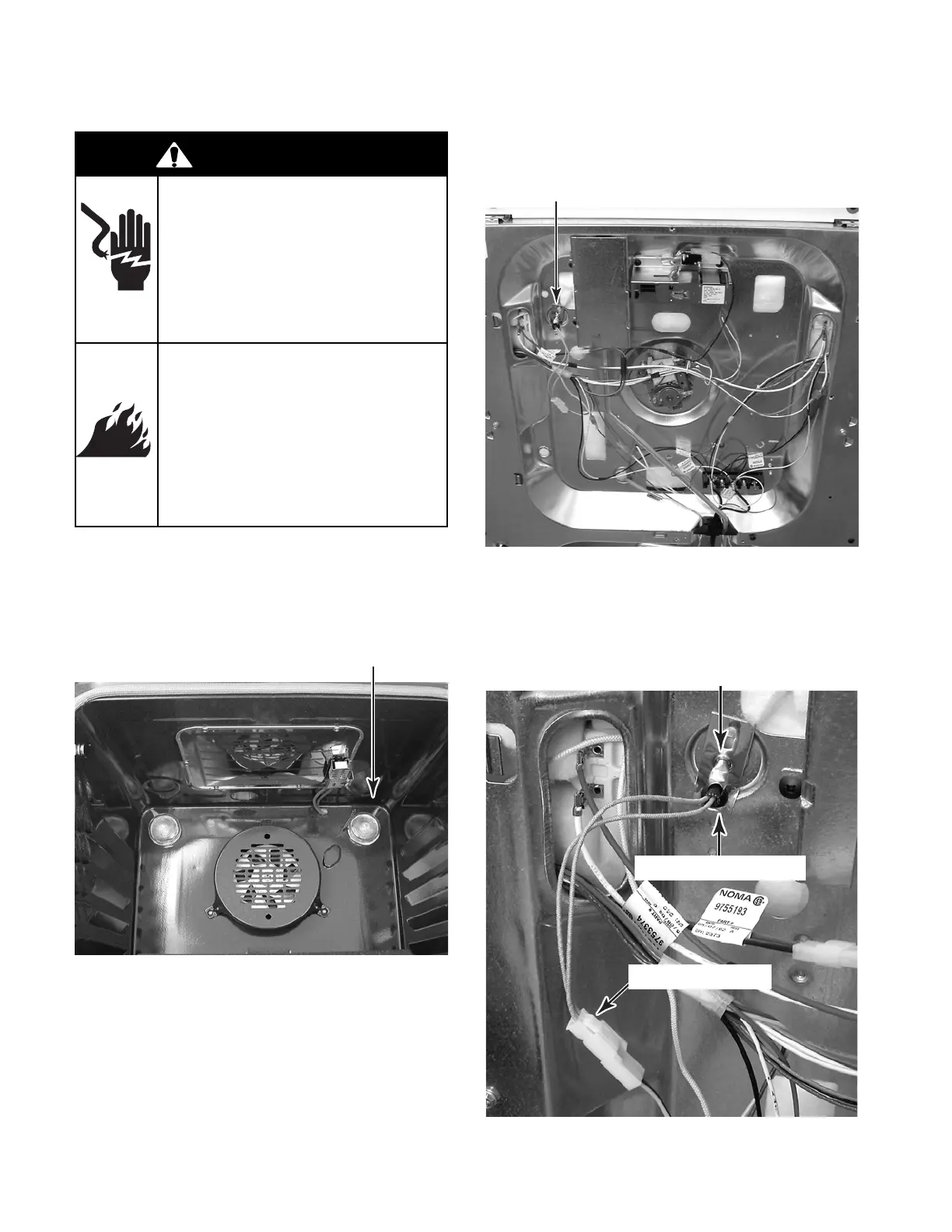

REMOVING THE OVEN TEMPERATURE SENSOR
1. Turn off gas supply and disconnect power
to the range.
2. Pull the range out of its mounting location
so that you can access the rear of the unit.
4. Disconnect the oven temperature sen-
sor connector from the wiring harness.
5. Remove the screw from the temperature
sensor bracket and remove the sensor.
Oven Temperature Sensor
Sensor Bracket Screw
Oven Temperature Sensor
3. Remove the rear panel (see page 4-5 for
the procedure).
Sensor Connector
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connec-
tions and replace all parts
and panels before operating.
Failure to do so can result in
explosion, fire or other injury.
Oven Temperature Sensor
