4-19
Gas Safety Valve

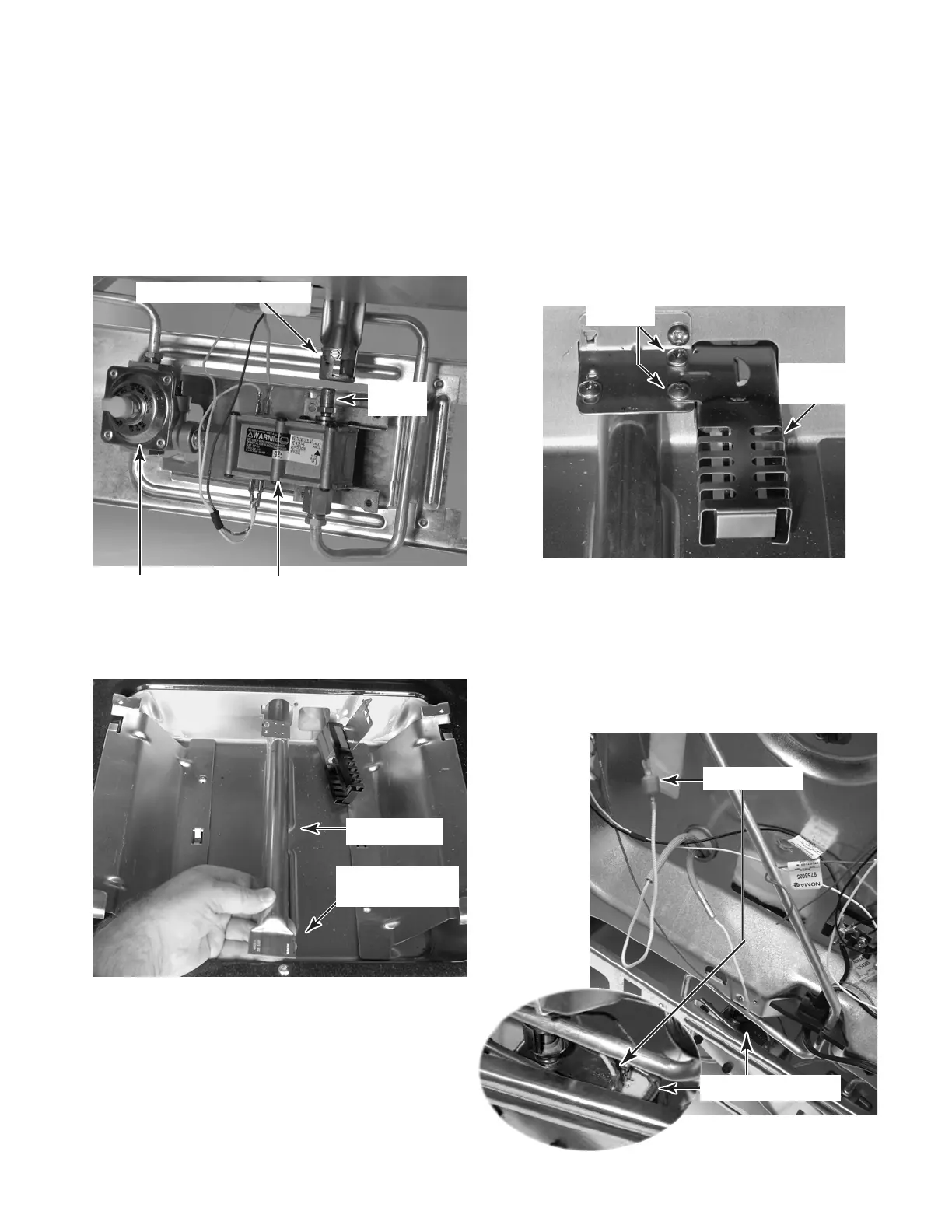

7. To remove the bake burner ignitor:
a) Remove the two screws from the bake
burner ignitor and slide it off the burner
bracket.
b) Pull the range out of its mounting loca-
tion so that you can access the rear of
the unit.
c) Remove the rear panel (see page 4-5
for the procedure).
d) From the rear of the unit, disconnect
the bake burner ignitor wires from the
red wire harness connector and the gas
safety valve.
e) Pull the ignitor wires through the oven
liner and remove the bake burner igni-
tor.
b) Remove the mounting screw from the
gas distribution valve, and the four
screws from the gas safety valve (see
page 4-21 for the procedure).
c) Lift the bake burner and pull forward on
the gas distribution valve, and the gas
safety valve until the orifice is free of the
bake burner air shutter.
Bake Burner Air Shutter
Burner
Orifice
d) Remove the bake burner from the front
slot in the liner and remove the burner
from the unit.
Bake Burner
Remove Burner
From Front Slot
(Viewed From The
Rear Of The Unit)
2 Screws
Gas Distribution Valve Safety Valve
Bake Burner
Ignitor
Ignitor Wires
To Next Page
