4-15

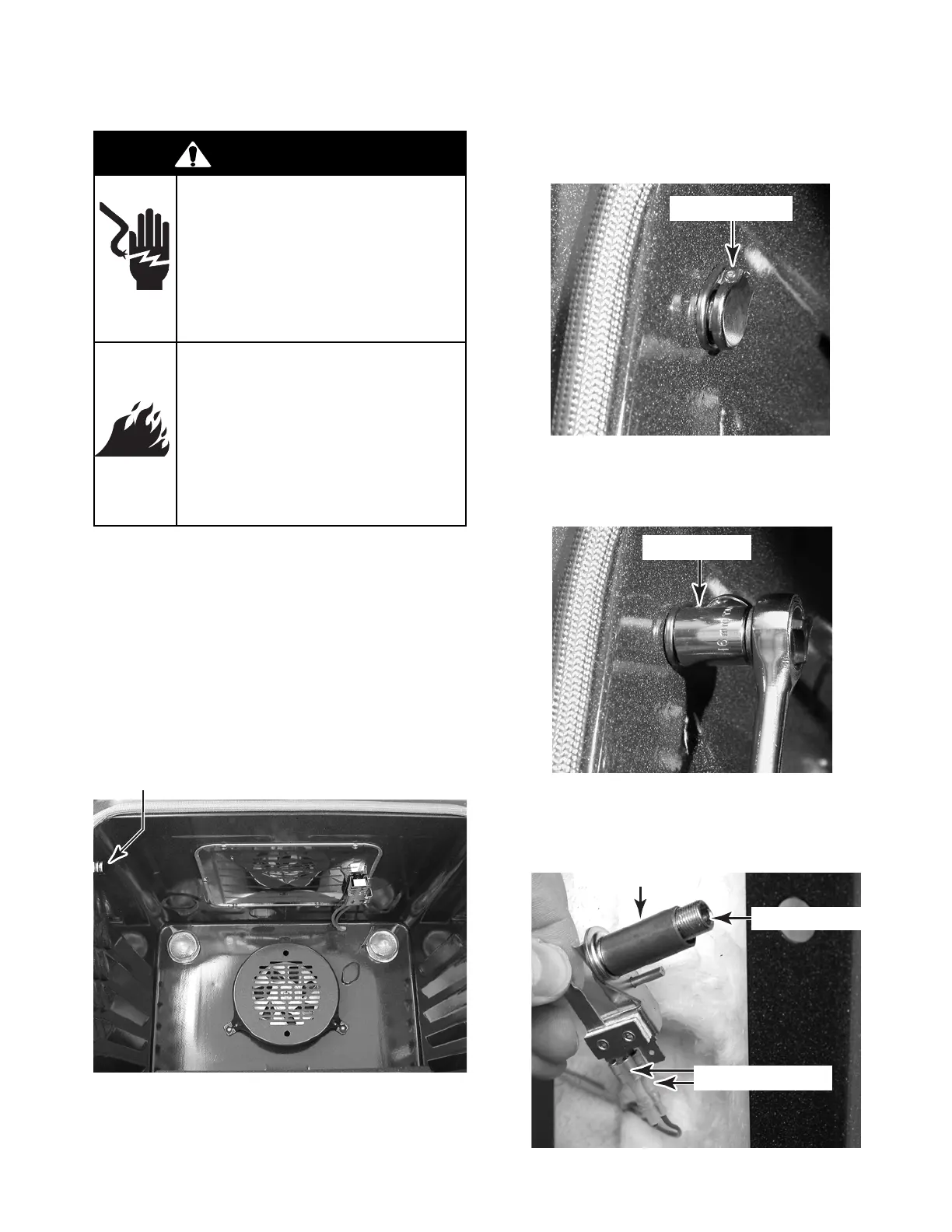

REMOVING THE MEAT PROBE JACK
1. Turn off gas supply and disconnect power
to the range.
2. Pull the range out of its mounting location
so that you can access the left side of the
unit.
3. Open the oven door and remove the racks
from inside the oven.
4. Remove the left side panel (see page 4-22
for the procedure).
7. Remove the metal sleeve and disconnect
the wires from the meat probe jack termi-
nals, then remove the jack from the unit.
Meat Probe Jack
5. Lift the spring-loaded cap on the meat
probe jack.
Meat Probe Cap
6. Use a 16mm socket and remove the meat
probe jack nut and felt washer from the
oven liner.
16mm Socket
Metal Sleeve
Violet & Red Wires
Meat Probe Jack
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connec-
tions and replace all parts
and panels before operating.
Failure to do so can result in
explosion, fire or other injury.
To Next Page
