4-10

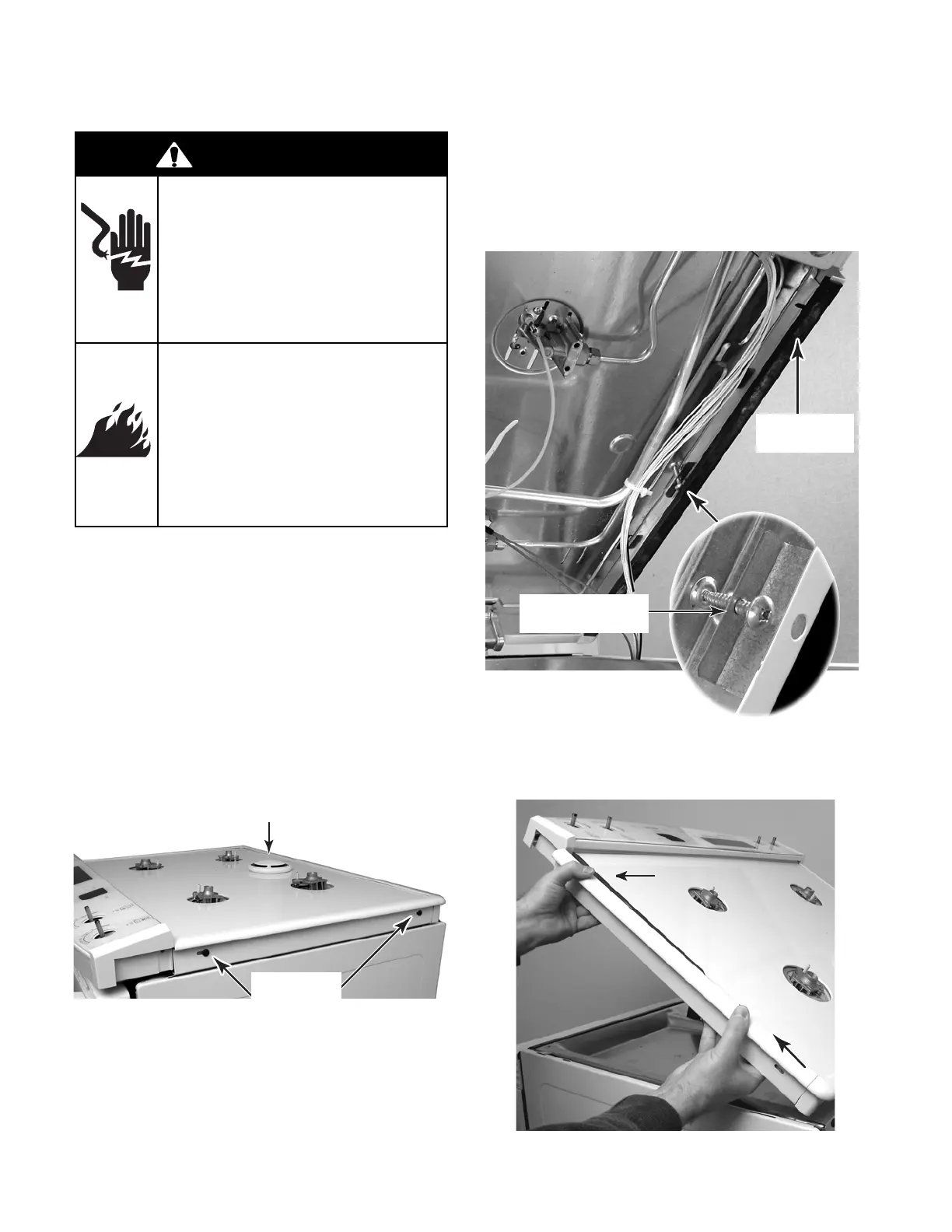

REMOVING THE COOKTOP GLASS & VENT
7. Remove the rubber spacer strips from the
edges of the left and right side trim.
8. Loosen the tension bracket screws and
remove the brackets from behind the left
and right side trim.
Right Side
Trim Screws
6. Raise the cooktop and prop it up (see
pages 4-8 and 4-9 for the procedure).
1. Turn off gas supply and disconnect power
to the range.
2. Pull the range out of its mounting location
so that you can access the side trim.
3. Remove the control panel from its
subchassis, (see page 4-2 for the proce-
dure), and set it on the front of the unit.
4. Lift the vent cover off the cooktop.
5. Remove the two screws from the left and
right side trim. Do not remove the trim at
this time.
Vent Cover
Rubber
Spacer Strip
Right Tension
Bracket & Screw
9. Pull the front of the side trim off the cooktop
glass, and slide the trim forward off the
rear trim.
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connec-
tions and replace all parts
and panels before operating.
Failure to do so can result in
explosion, fire or other injury.
To Next Page
