4-9

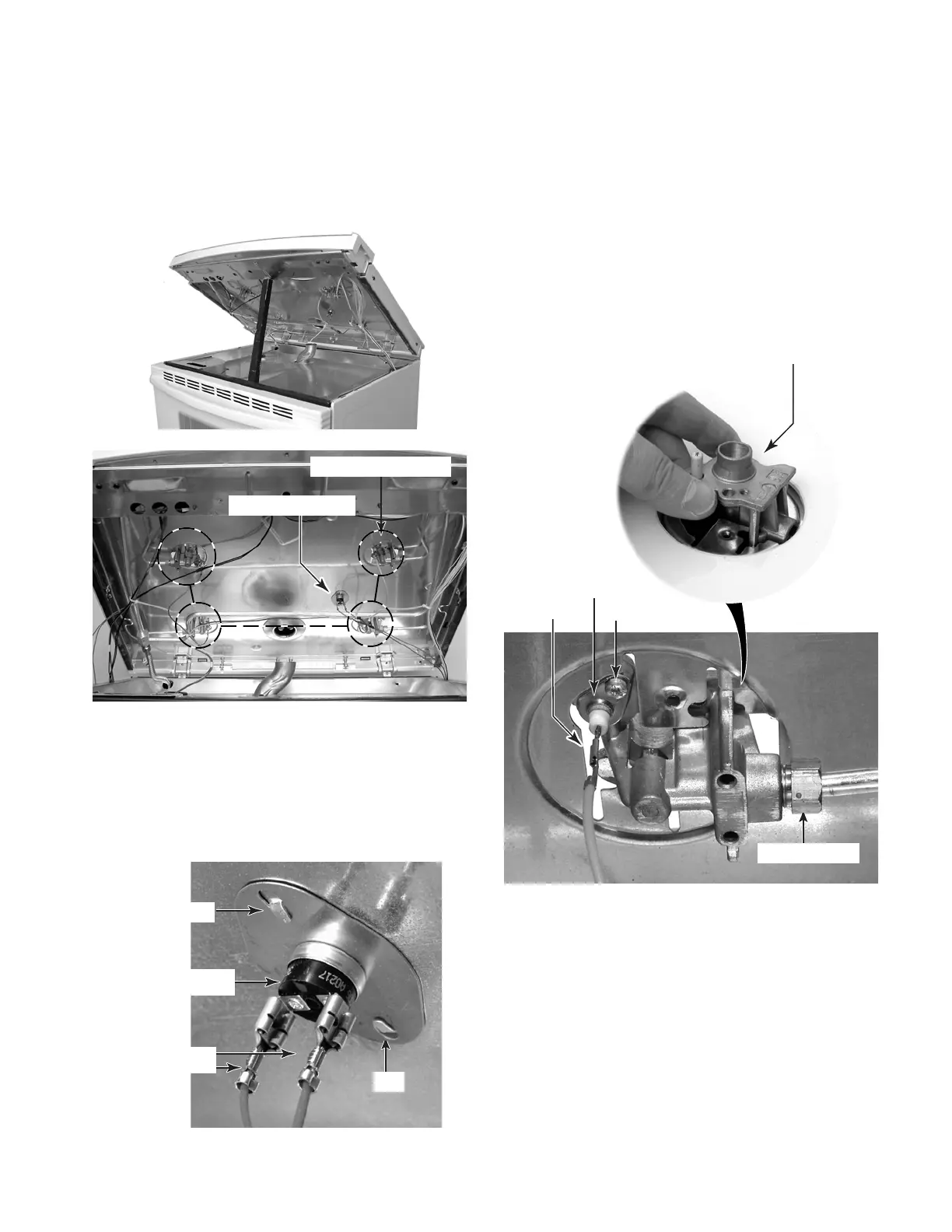

7. Move the control panel back into place
over the chassis, then lift the front of the
cooktop assembly, and prop it up with a
piece of board so that you can access the
components. CAUTION: Be careful that
the cooktop does not accidentally fall.
9. To remove an ignitor:
a) Disconnect the ignitor wire from the
terminal.
b) Remove the screw from the ignitor.
10. To remove a surface burner:
a) Remove the screw from the ignitor and
remove the ignitor from the surface
burner.
b) Remove the gas line nut from the sur-
face burner.
c) Lift the surface burner out the top of the
cooktop.
4 Surface Burners
Cooktop Bimetal
8. To remove the cooktop bimetal:
a) Disconnect the two wires from the bi-
metal terminals.
b) Bend the two tabs down and remove
the bimetal from the bottom of the cook-
top.
Wire
Screw
Ignitor
Gas Line Nut
Tab
Tab
Wires
Cooktop Bimetal
To Next Page
