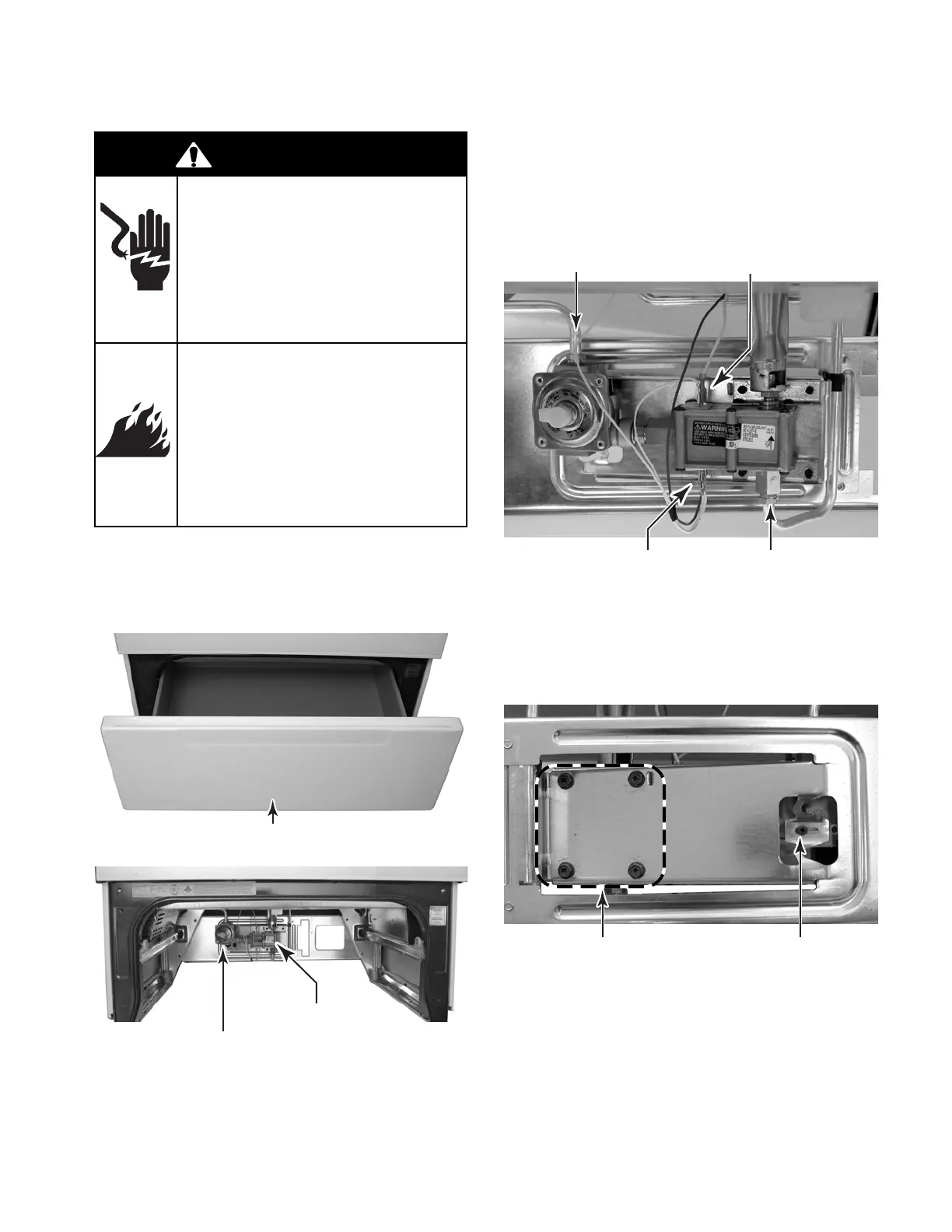

REMOVING THE GAS DISTRIBUTION AND SAFETY VALVES
1. Turn off gas supply and disconnect power
to the range.
2. Remove the storage drawer.
Storage Drawer
3. From inside the storage drawer area, dis-
connect the bake and broil wires from the
safety valve.
4. Disconnect the gas lines from the gas
distribution and safety valves.
Safety Valve Gas LineBroil Safety Valve Wires
Bake Safety Valve Wires
5. Remove the mounting screws from the
gas distribution and safety valves. NOTE:
The gas distribution and safety valves are
replaced as an assembly. They are not
intended to be replaced separately.
(Viewed From The Rear Of The Unit)
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connec-
tions and replace all parts
and panels before operating.
Failure to do so can result in
explosion, fire or other injury.
Gas Distribution Valve Line
Gas Distribution Valve
Safety Valve
Safety Valve Screws Gas Distribution
Valve Screw
