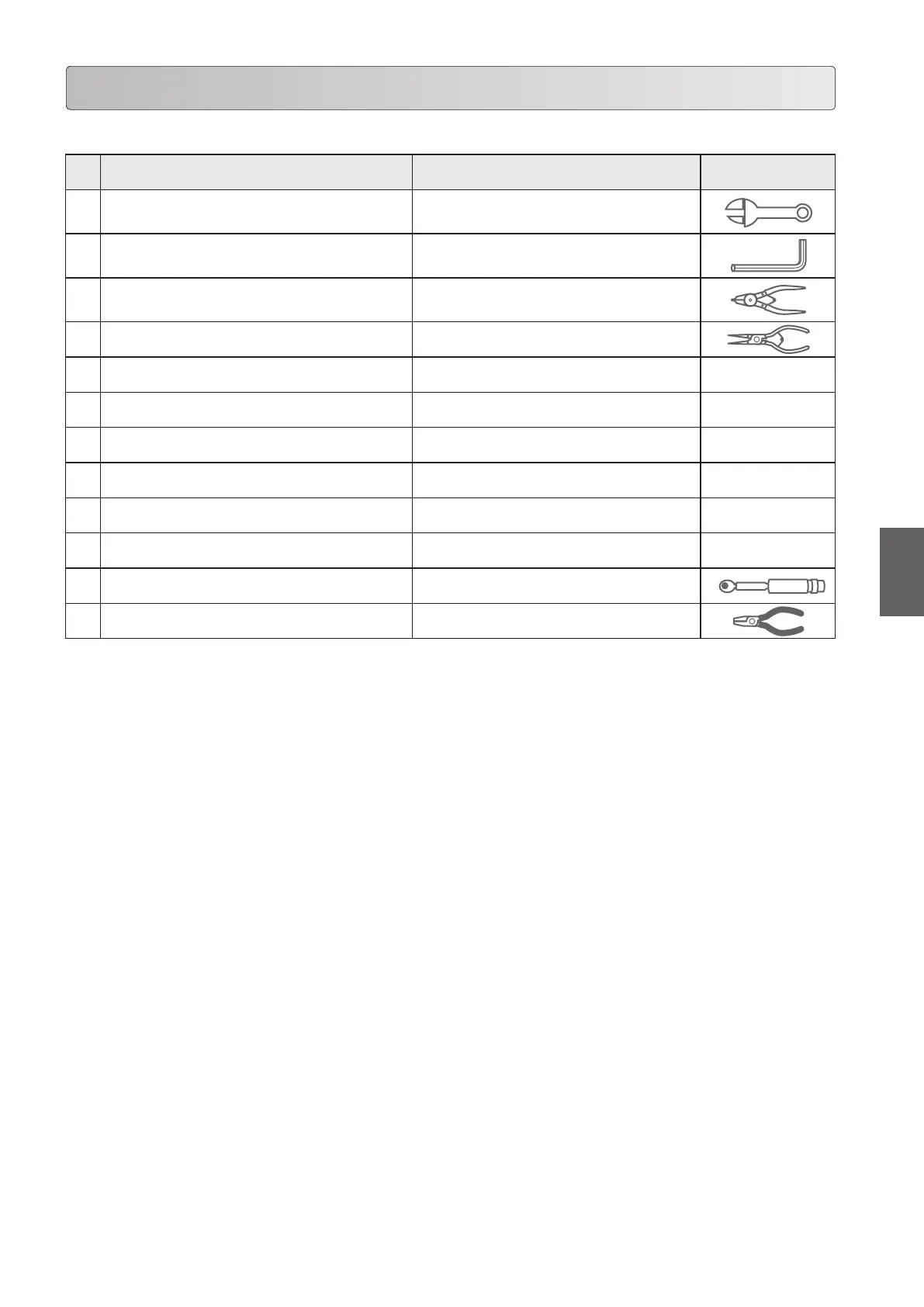

For disassembly and reassembly, prepare the following tools.
No.
Tool name Application Icon
1
Wrench
13mm
Bolts and nuts
2
Hexagon wrench
4mm/5mm/6mm/8mm
Socket bolts
3
Snap ring pliers S
(Large) (Small)
Snap rings (shaft)
4
Snap ring pliers R Snap rings (hole)
5
Socket wrench 10mm Bottom yokes
6
Adjustable wrench Bolts and nuts
7
Plastic hammer
8
Screwdrivers (+) (-) Screws
9
Puller Bearings and fan
10
Vices (2 pcs.) Pull rotor
11
Torque wrench/nut runner
12
Plier Set pin
●
Use the following types of grease.
• JIS K2220 Grease type 1 No. 2 for Roller shaft bearing
• Molybdenum disulde lubricant Molytherm No. 2 (Specied brand: SUMICO LUBRICANT)
●
Use the following liquid gasket.
• Liquid gasket TB1121 (made by ThreeBond)
●
Use the following screw lock.
• ThreeBond 1401 (made by ThreeBond) or its equivalent
●
Helpful tools
• Remover: Prepare a remover for bearings (for inner race & outer race) and one for oil seal for precise operation.
• Preparing wooden block (used as sleepers) and wire for guiding lead wires will be helpful.
Disassembly and Reassembly Tools
Disassembly and Reassembly Tools
