− 13 −
If a chain container is not used, remove the stopper from the free end of the chain and secure to the 13th, 15th
or 25th link from the free end as shown in Fig.5-4. Then attach the end link to the chain guide A with the chain
end suspender except the 5t capacity with the end link directly attached to the chain guide A.
Using the lock nut (U nut), tighten it properly. Prevent deformation of the chain guide A caused by screwing it too much.
When a chain container is used, the stopper is attached to the 3rd link from the free end of the load chain.
Therefore, the lift is slightly shorter when a container is not used.

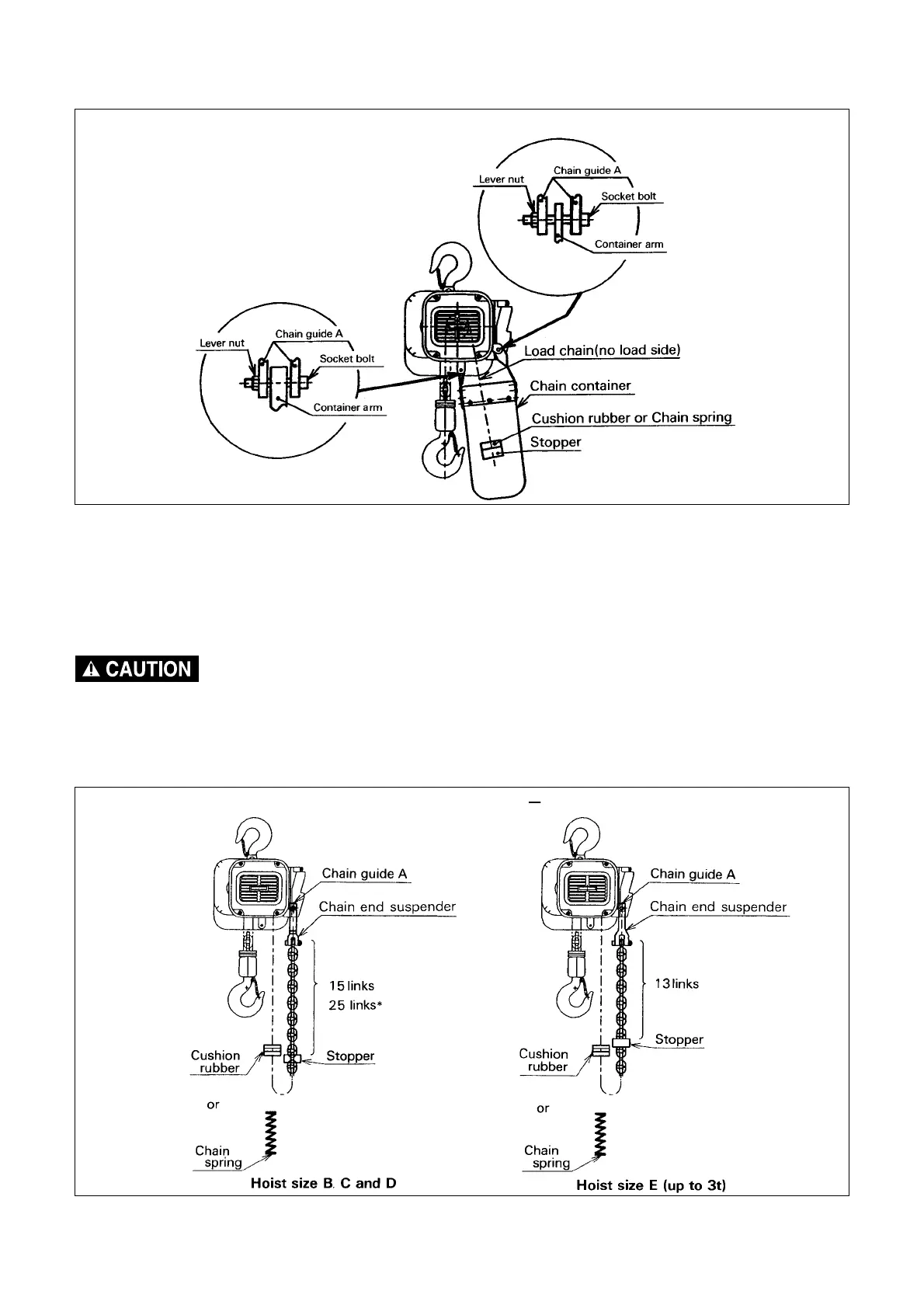

Fig 5-3 Attachment of chain container
Fig 5-4 Attachment of chain to hoist body No chain container
＊
For 125kg capacity with the upper-lower limit switch and dual speed, attach the stopper to the 25th link.
