(2) Lubricating the gear case
Remark : For larger Capacity hoists (7.5t and larger), refer to the ERML-9806-MC manual.
The gear case does not contain oil at time of delivery. Remove the oil plug and pour all the gear oil, packed
with the hoist, into the gear case by using the pot nozzle, and reinstall oil plug.
The specified gear oil is allowed for the ER hoist.
− 14 −

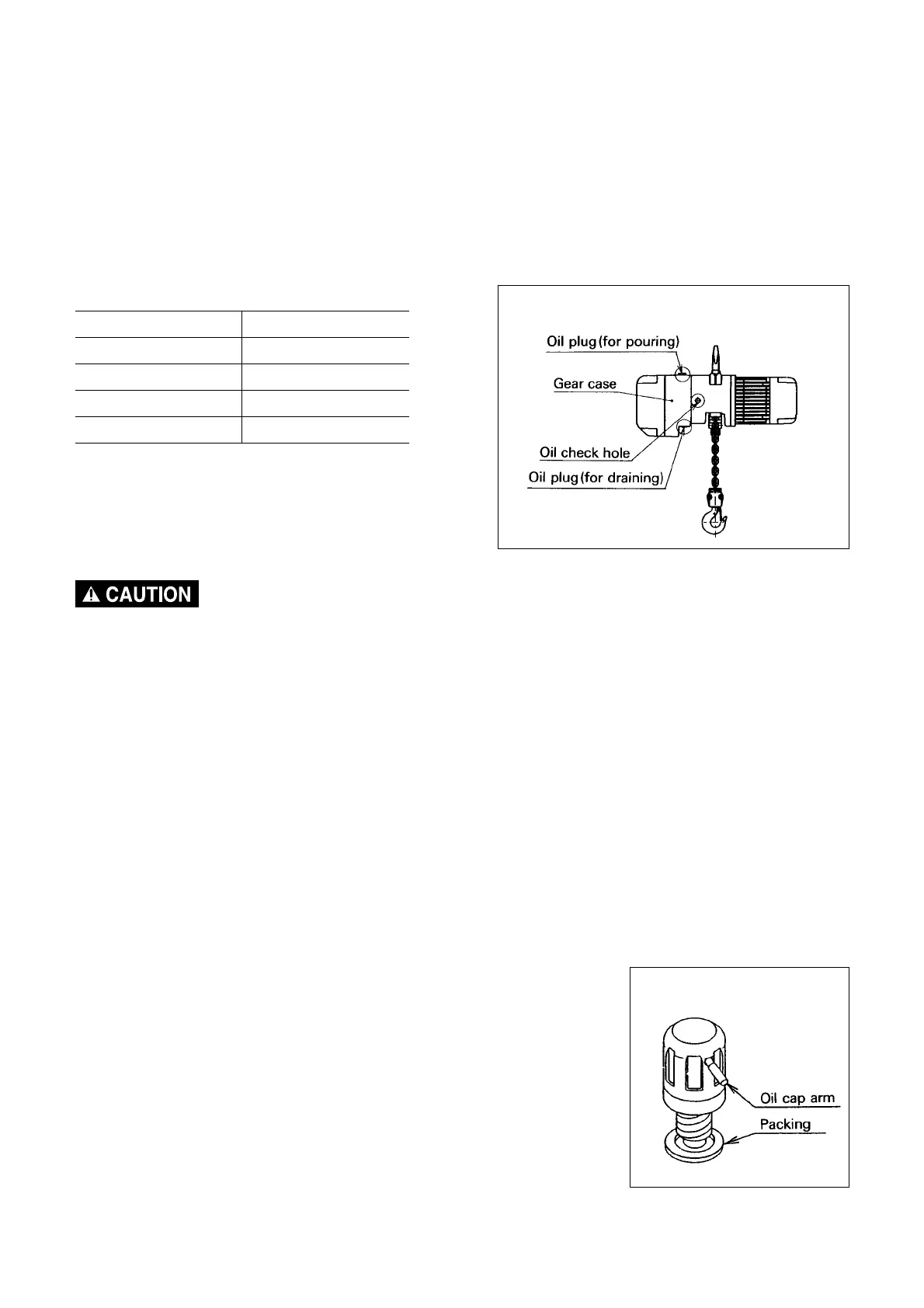

Fig. 5-5 Oil plug locations
Table 5-1 Gear oil quantity
Hoist Size Oil quantity (liters)
B 0.7
C 1.0
D 1.7
E 3.0
Gear oil is different between friction clutch and mechanical brake combined with a friction clutch (option).
Use one of the below listed gear oils.
(1) Friction clutch
a) KITO standard oil : Bonnoc M260 (NIPPON MITSUBISHI OIL)
b) Recommended oil : Meropa 320 (TEXACO)
c) Recommended oil : Meropa 320 (CALTEX)
(2) Mechanical brake combined with a friction clutch (option).
a) KITO standard oil : Farm Gear B (NIPPON MITSUBISHI OIL)
b) Recommended oil : Meropa No.68 (TEXACO)
Remark : For hoist applications in temperatures below -20
0
C (-4
0
F), contact KITO or authorized KITO dealer for special
instructions regarding gear oil.
Fig. A
◆
Handling the oil cap for the mechanical brake combined with friction clutch
In case of the mechanical brake combined with friction clutch, the oil cap
as shown in Fig.A is located on the side of the gear casing.
Before hooking up the hoist, pull the oil cap arm to expose a few mm of
the inner part of it or pull off it to maintain the air path to the outside of
the gear casing.
When transferring the hoist, unhook the hoist and push it back into the
original position because inclining the hoist too much while transferring
may cause oil leakage.
