6.4 Electric chain hoist with motorized trolley
6.4.1 Operation
KITO electric chain hoist ER series and motorized trolley MR series both come in single speed and dual
speed models.
For an explanation on how to operate the hoist, refer to Table 6-2.

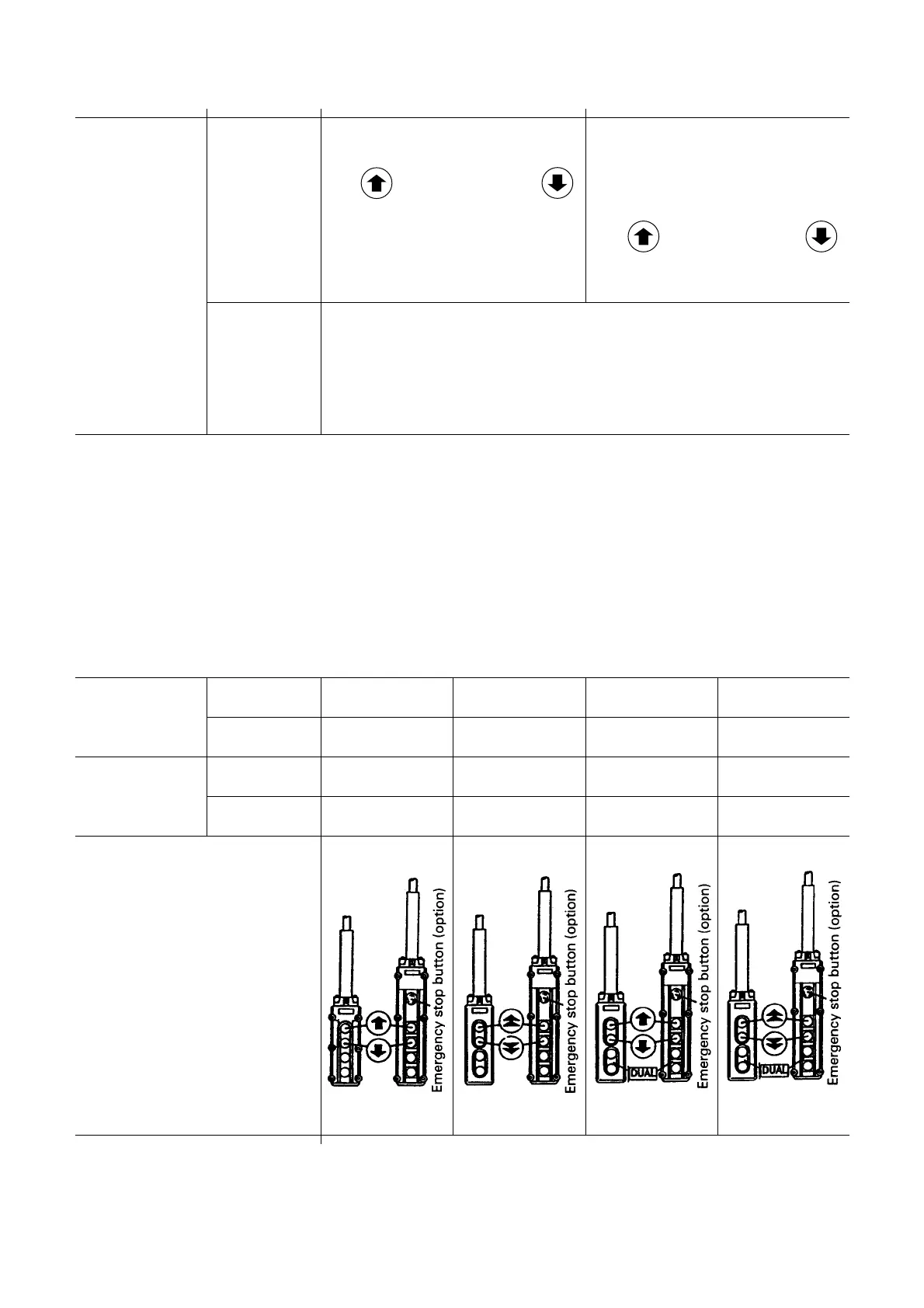

Table 6-2 Operation of hoist and trolley
− 32 −
Operation
method
lifting
or
lowering
Emergency
stop
device
(option)
The push button is a single step
push type. Push and hold down
the button to lift and the
button
to lower the load. Release the
button to stop.
This button is used to stop lifting or lowering in an emergency
situation. It is a red, mushroom type button, located in the uppermost
position on the push button switch box. When pushed, power to the
equipment is shut off and the button locks automatically. Turn it to
the right to release the lock.
The push button is a dual step
type. The first step is for low
speed and the second step for
high speed. Push and hold down
the button to lift and the
button to lower the load. Release the
button to stop.
Electric
chain hoist
Motorized
trolley
Single
speed
Dual
speed
Single
speed
Dual
speed
Push button switch
○ - ○ -
―― ○ - ○
○○ --
--○○
