5.3 Wiring and installation of power supply
ALWAYS turn off the power source or breaker switch before wiring to prevent electric shock
Remark : For larger Capacity hoists (7.5t and larger), refer to the ERML-9806-MC manual.
Have all wiring performed by an authorized electrician or KITO dealer.
(1) Checking and changing wiring
Check or change wiring of the electric chain hoist and motorized trolley depending on the required voltage.
Make wiring referring to the following figure. In case of the equipment for 575V, it is not necessary to change
those connections.
− 22 −

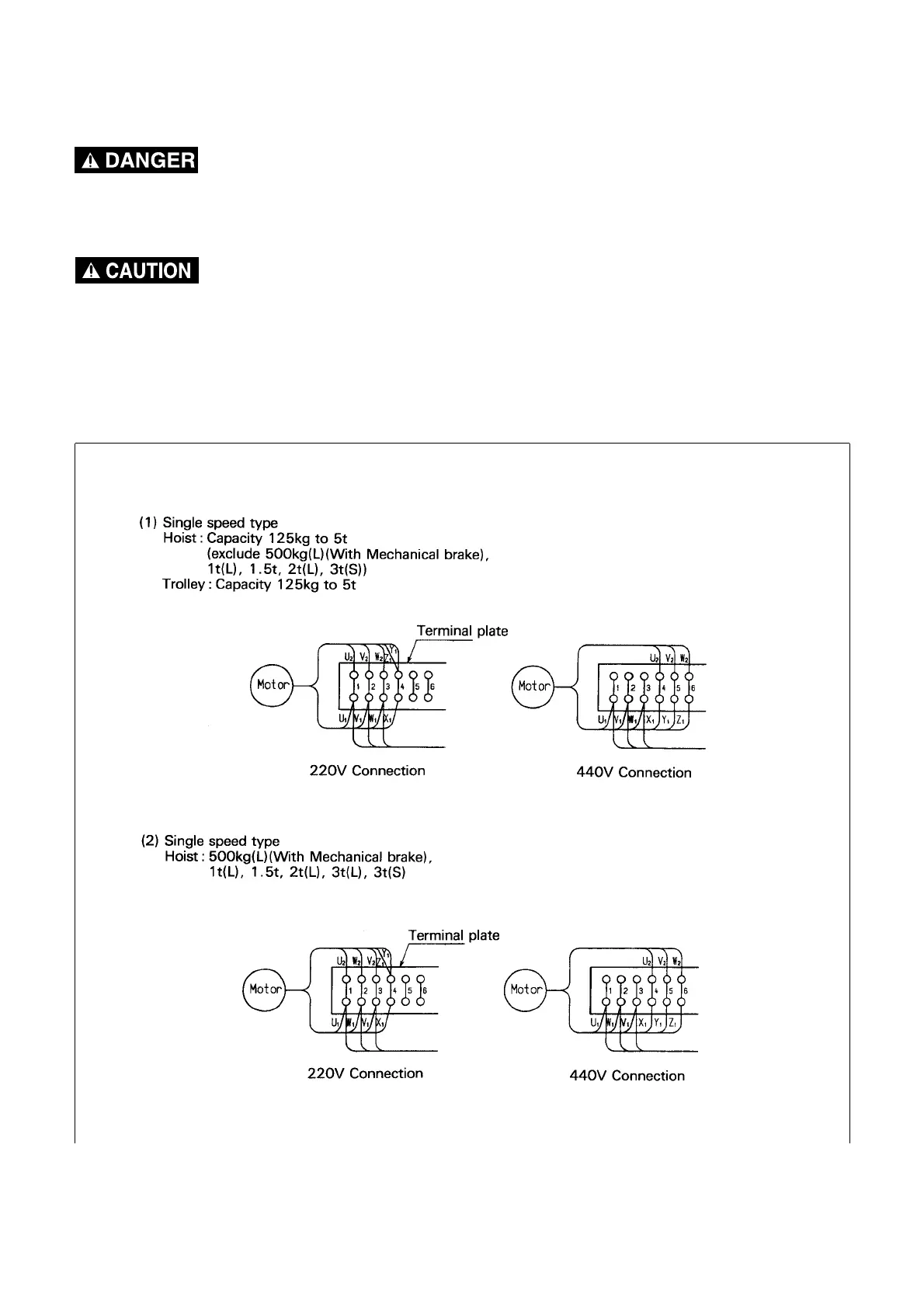

Fig.5-11 1. Motor wiring
