Never use the hole B to adjust trolley width. Hole B is only used when installing the trolley on the rail.
− 21 −

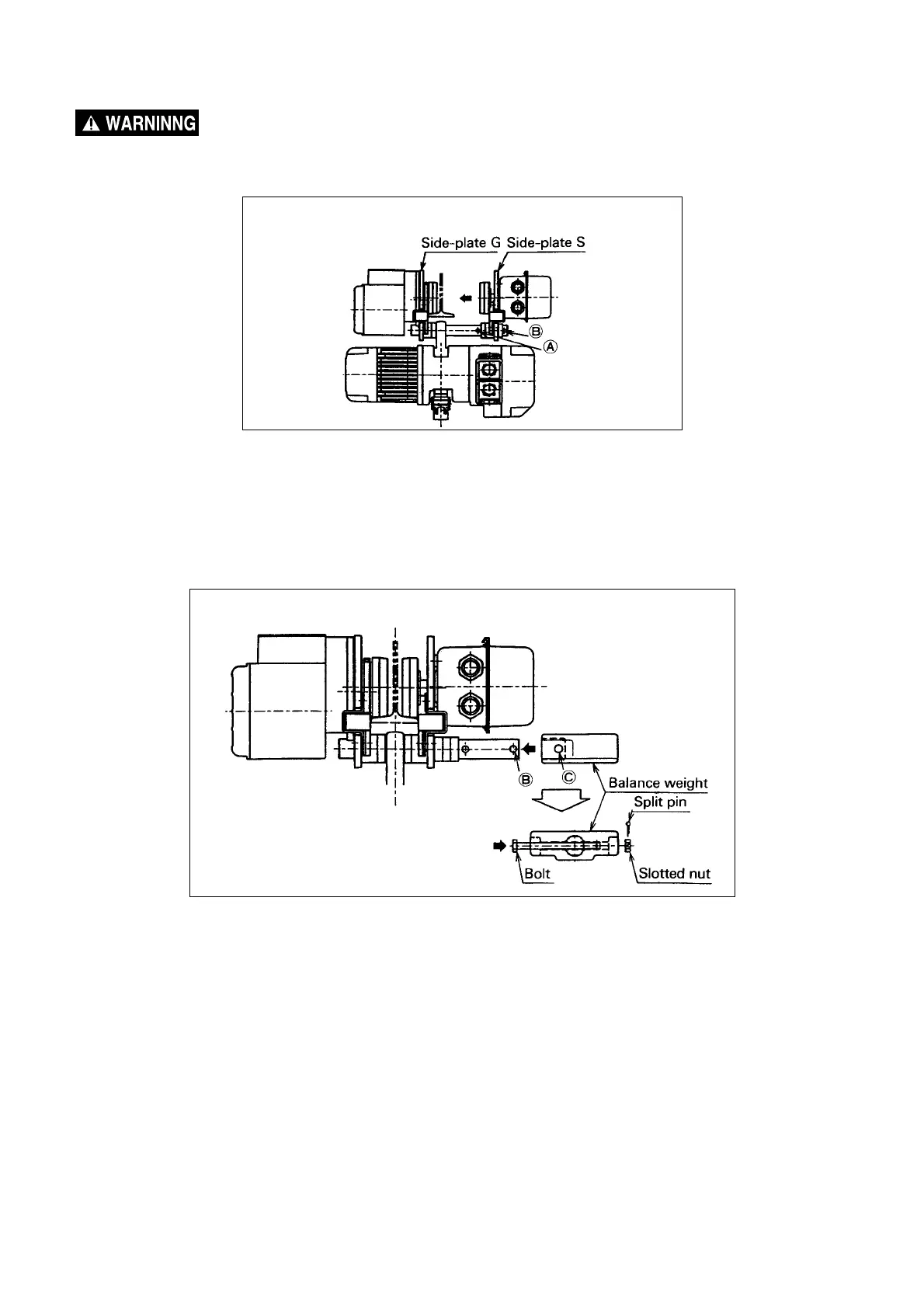

Fig.5-9 Trolley with the hoist mounting to traversing rail.
b) Installation of balance weight
The trolleys with capacity 1 tonne or less in dual speed, need a balance weight on them to keep stability on
a rail flange of 75 mm in width.
As shown in Fig 5-10, place the balance weight over the suspension shaft and align with holes B and C. Fit
the bolt into hole C and lock on the other end with the slotted nut and split pin.
Fig.5-10 Installation of balance weight
(c) Installation of stopper onto traversing rail
If using two or more trolleys on the same rail, separate them with end stops between every two trolleys.
The distance between the end stops depends on the site requirements. Contact KITO or a KITO authorized
dealer for help if required.
Make sure to install the end stops at both ends of the traversing rail.
