Page 4 of 8
1.2.6. Others
・
In case of use in special environments such as salt water, seawater, acidic, alkaline or explosive atmospheres,
confirm with your dealer in advance.
When not in use of the lever operated chain hoist ,store it at dry place where appropriate for the weight and size.
Do not use the hoist which is out of order or under repair.
Do not use the hoist with warning labels or tags missing.
2. Technical Information
2.1. Specifications

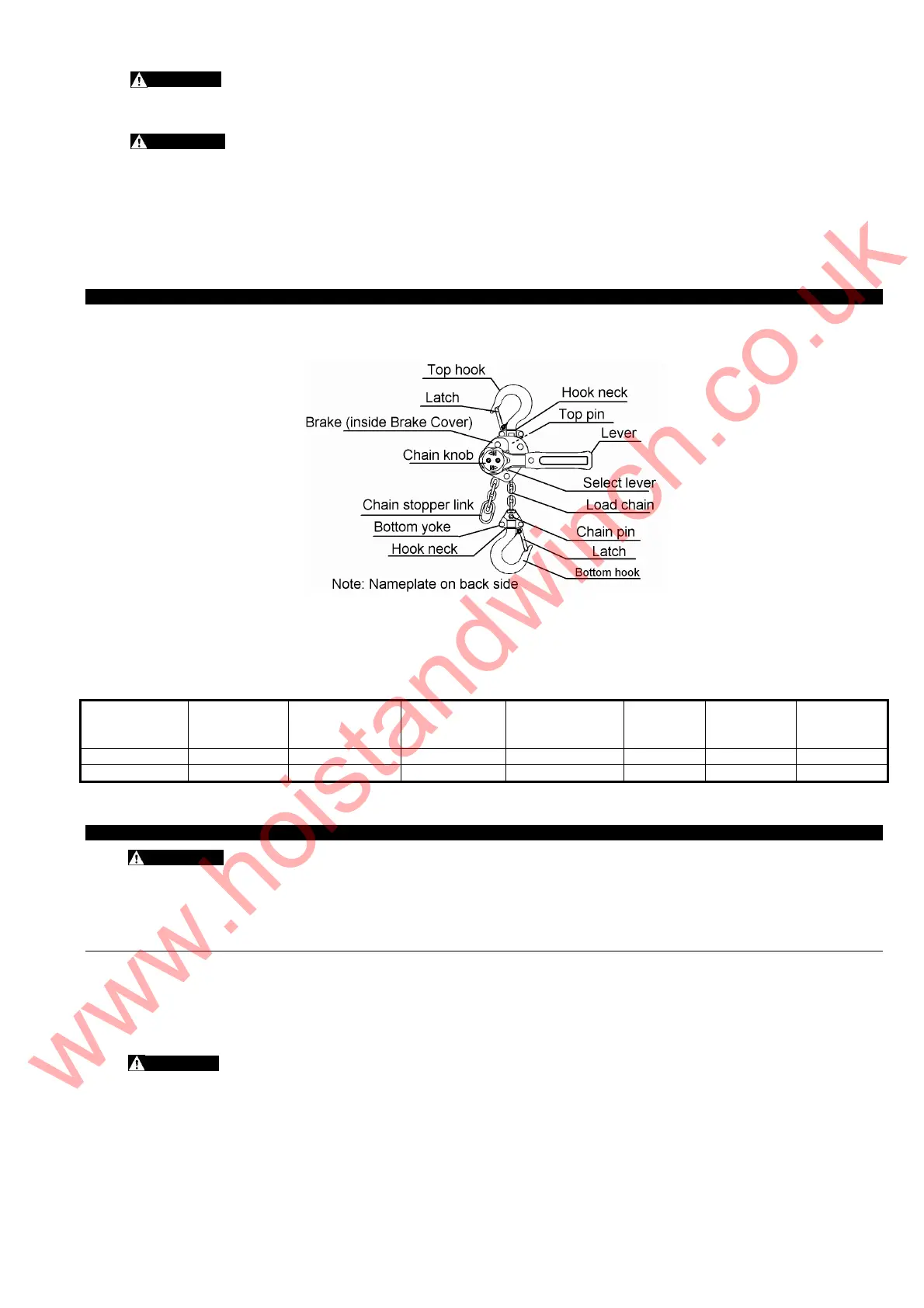

2.1.1. Schematics
2.1.2. Operating Conditions and Environment
Temperature Range: -40° to +60°C (-40° to +140°F)
Humidity: 100% or less, this is not underwater device.
Material: No special materials such as sparkless and asbestos.
Table 2-1 Hoist Specifications
Capacity
(tonnes)
Product
Code
Standard Lift
(m)
Pull to Lift
Rated Load
(N)(kgf)
Load Chain
Diameter
x Pitch (mm)
Chain
Fall Lines
Test Load
(tonnes)
Net Weight
(kg)
0.25 LX003 1.0 200(20) 3.2×9.0 1 0.38 1.6
0.5 LX005 1.2 310(31) 4.3×12.0 1 0.75 2.6
・ This device was tested on the required static and dynamic test provided on the European standard EN13157.
3. Mounting
Avoid the following when mounting the hoist.
Failure to comply with these instructions may result in death or severe injury.
- Ensure that only trained or competent persons install the hoist.
- Do not install the hoist within the range of movement of other devices (equipment), such as a trolley.
Comply with the following instructions when installing the hoist.
Failure to comply with these instructions may result in death or severe injury.
- The safety factor of the lever hoist is 4:1.The hoist may life and hold a load more than the rated load check that the
structure for mounting the hoist has sufficient strength.
- Fix the Top Hook to the structure securely.
Comply with the following instructions when installing the hoist.
Failure to comply with these instructions may result in injury or damage to property.
- Install the hoist to avoid impeding the hoist.
- Install the Load Chain with sufficient length for lifting work.
WARNING
CAUTION
WARNING
CAUTION
NEVER
ALWAYS
ALWAYS
