KITO LX1B User Manual

Page 8 of 8

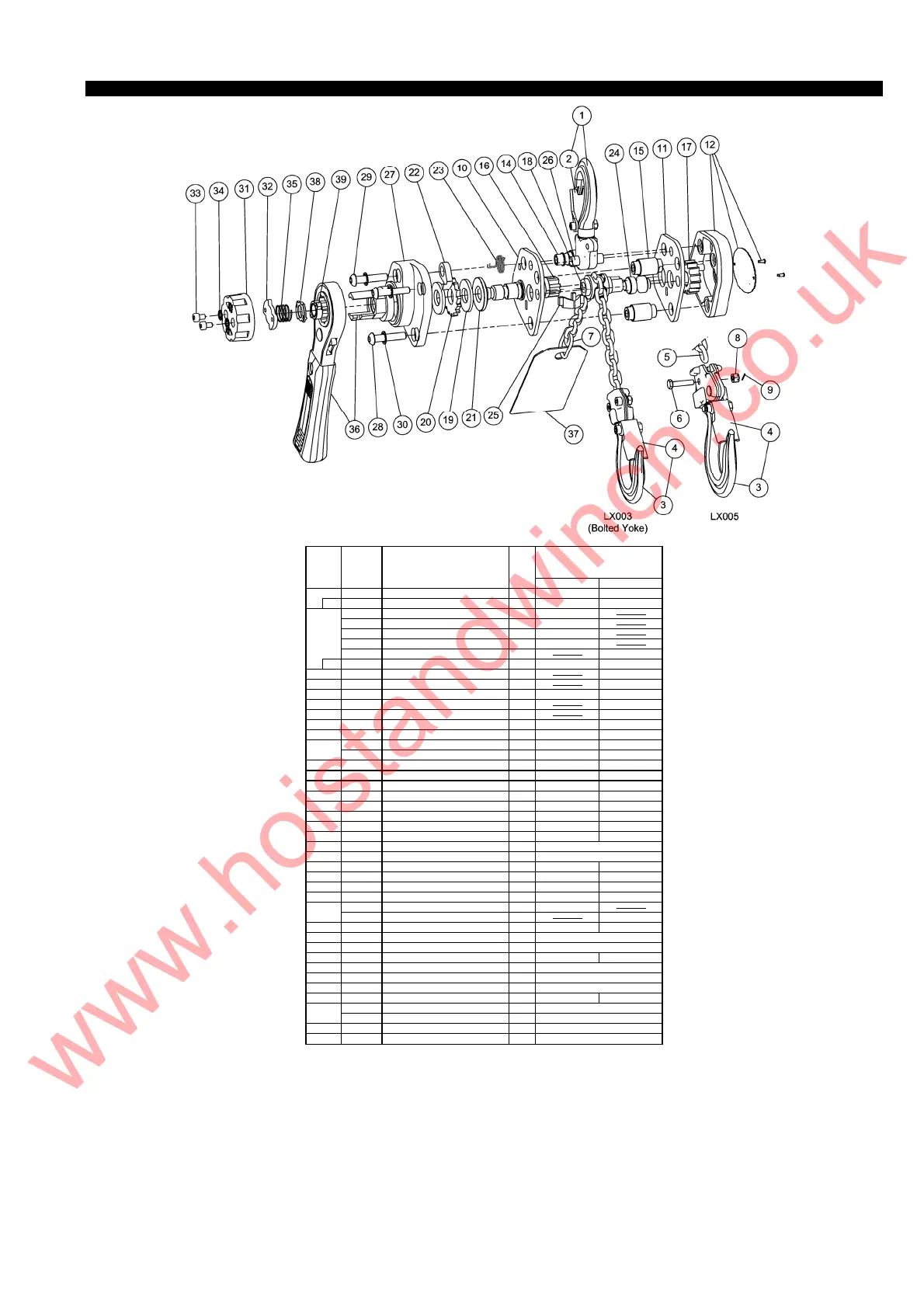

8. Repair Part List
0.25 0.5
1 1001 Top Hook Set
1
L1XA003-1001 L1XA005-1001
2 1071 Latch Assembly
1
L1XA003-1071 L1XA005-1071
3 1011 Bottom Hook Set for 1 m lift 1 L1XA003-1011
1012 Bottom Hook Set for 2 m lift 1 L1XA003-1012
1013 Bottom Hook Set for 3 m lift 1 L1XA003-1013
1014 Bottom Hook Set for 4 m lift 1 L1XA003-1014
1021 Bottom Hook Set 1 L1XA005-1021
4 1071 Latch Assembly
1
L1XA003-1071 L1XA005-1071
841 Load Chain
1
KAUN043-0000
41 Chain Pin
1
L1LA005-9041
45 Chain Stopper Link
1
L1XA003-9045 L1LA005-9045
49 Slotted Nut
1
L1LA005-9049
42 Split Pin
1
J1PW01-016008
101 Frame A
1
L1XA003-9101 L1XA005-9101
102 Frame B
1
L1XA003-9102 L1XA005-9102
103 Gear Case Assembly (Other)
1
L1XD003-5103 L1XD005-5103
103 Gear Case Assembly (Europe)
1
L1XG003-5103 L1XG005-5103
105 Stud B
1
L1XA003-9105 L1XA005-9105
104 Stud A
2
L1XA003-9104 L1XA005-9104
111 Pinion
1
L1XA003-9111 L1XA005-9111
114 Load Gear
1
L1XA003-9114 L1XA005-9114
116 Load Sheave
1
L1XA003-9116 L1XA005-9116
151 Friction Plate
2
L1XA003-9151 L1XA005-9151
152 Ratchet Disc
1
L1XA003-9152 L1XA005-9152
153 Friction Disc
1
L1XA003-9153 L1XA005-9153
155 Pawl
1
158 Pawl Spring Assembly
1
161 Guide Roller
1
L1XA003-9161 L1XA005-9161
162 Stripper
1
L1XA003-9162 L1XA005-9162
163 Top Pin
1
L1XA003-9163 L1XA005-9163
172 Brake Cover
1
L1XA003-9172 L1XA005-9172
173 Button Head Socket Screw
2
L1XA003-9173
174 Button Head Socket Screw
2
L1XA003-9174
174 Button Head Socket Screw
1
L1XA003-9174 L1XA005-9174
175 Internal Tooth Lock Washer
3
201 Chain Knob
1
202 Lever Clamping Plate
1
L1XA003-9202 L1XA005-9202
206 Socket Head Cap Screw
2
204 Conical Lock Washer
2
205 Free Chain Spring
1
4211 Lever Assembly
1
L1XA003-4211 L1XA005-4211
868 Warning Tag CE (Other)
1
868 Warning Tag CE-G (Europe)
1
209 Free Chain Plate
1
203 Cam Guide
1
37
ER1BS9686
E7AR003S9868
32
33
34
36
L1XA003-9205
J1BE2-0400606
L1XA003-9209
L1XA003-9203
38
39
20
Capacity
(tonnes)
Parts
per
Hoist
Part NamePart No.
Figure
No.
5
6
7
8
16
17
18
19
14
15
9
10
11
12
21
22
23
24
25
26
27
35
29
30
31
28
L1XA003-9155
J1WH012-20060
L1XA003-9204
L1XA003-1158
L1XA003-9201
