INSTALLATION (EXTERNAL VENTILATION)

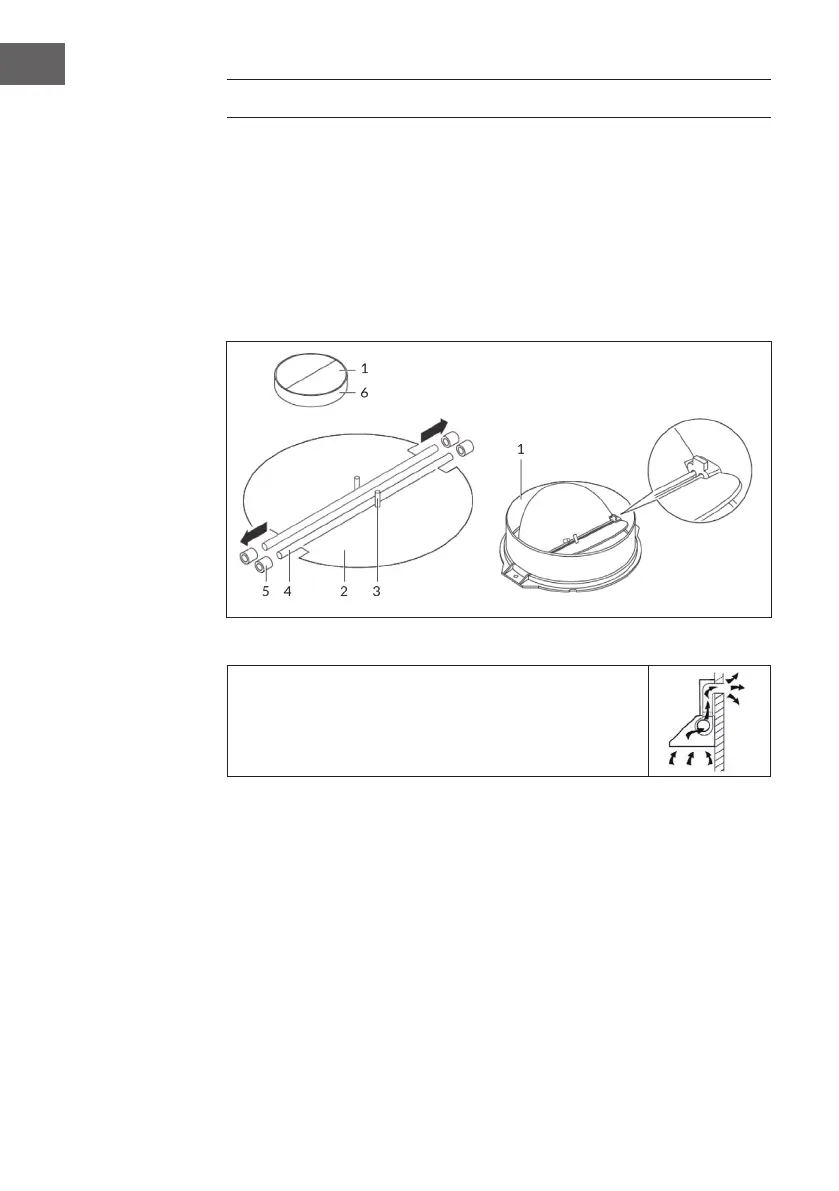

Mounting the V ap
If the cooker bonnet does not have a pre-assembled V-ap, install the parts as follows:
1 Install the rst half (2) into the housing (6).
2 The pin (3) should be facing upwards.
3 The axle (4) is inserted into the holes (5) on the housing.
4 Repeat all the steps for the second half of the ap.
Installation
If you have an air outlet to the outside, the cooker bonnet can be
connected via an extraction duct (enamel, aluminium, exible
pipe or non-combustible material with an internal diameter of
150mm) as shown on the right.
