5
WARNINGS
• Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
• Do not use the meter during electrical storms or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Use only with CAT III or CAT IV rated test leads.
• Ensure test leads are fully seated into jacks, and keep fingers away
from the metal probe contacts when making measurements.
• Use caution when working with voltages above 25V AC RMS or
60V DC. Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock, replace
batteries when a low battery indicator appears.
• Do not attempt to measure resistance or continuity on a live circuit.
• Always adhere to local and national safety codes. Use personal
protective equipment to prevent shock and arc blast injury where
hazardous live conductors are exposed.
• To avoid risk of electric shock, disconnect leads from any voltage
source before removing battery door.
• To avoid risk of electric shock, do not operate meter while
battery door is removed

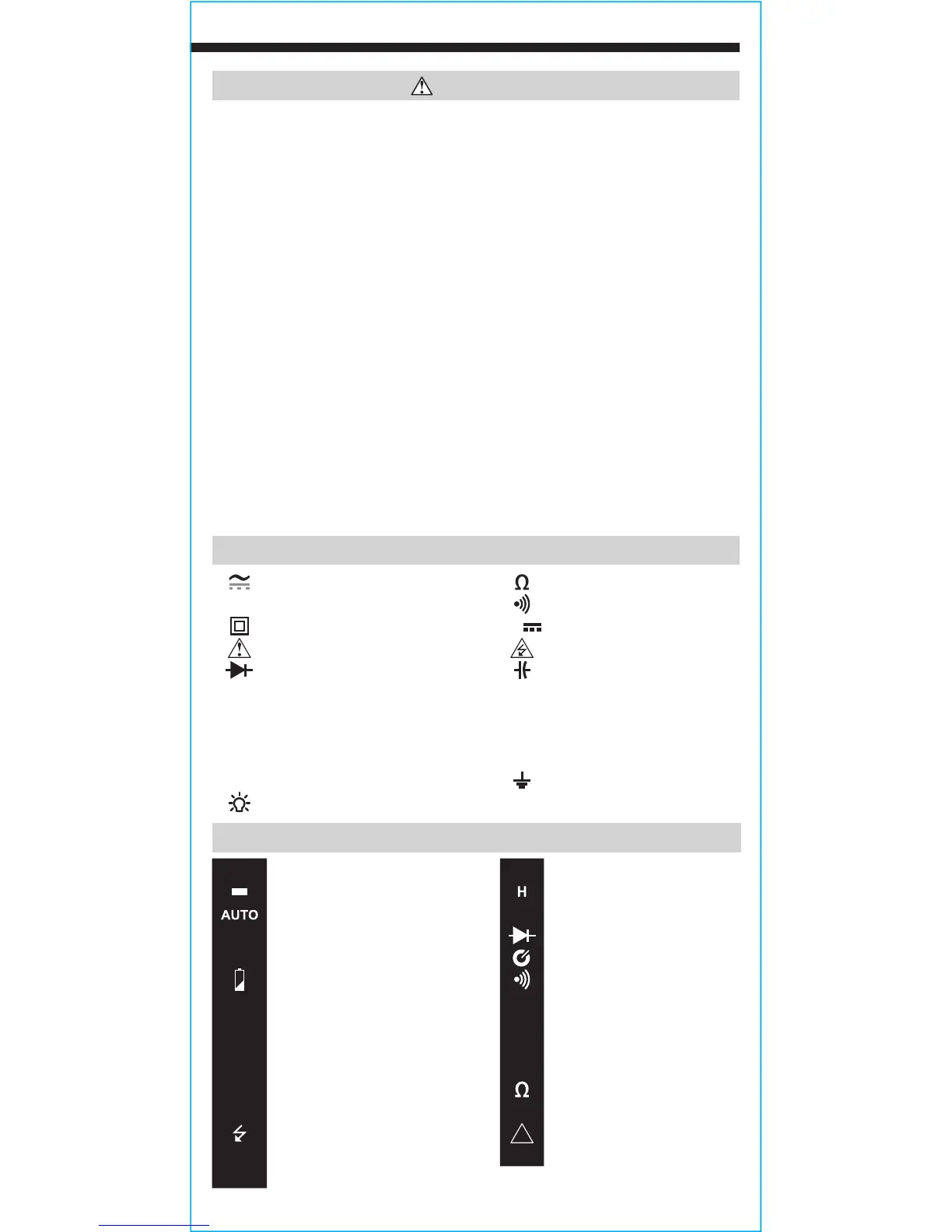

SYMBOLS ON METER
AC/DC Current Resistance (in Ohms)
NCV
Non-Contact Voltage tester Audible Continuity
Double Insulated Class II
μA
DC Microamps
Warning or Caution Risk of Electrical Shock
Diode Capacitance
Hz
Frequency
%
Duty-cycle
V Voltage (Volts) A Amperage (Amps)
°
F
°
C
Temperature (Fahrenheit / Celsius)
SEL
Select
+
Positive
–
Negative
COM
Common Ground
Backlight Brightness
OFF
Power Off
SYMBOLS ON LCD
AC AC (Alternating Current) DC DC (Direct Current)
Negative Reading Data Hold
Auto Ranging MAX Maximum Value Hold
F
Farrads Diode
NCV
Non-Contact Voltage Tester Auto Power Off
Low Battery Audible Continuity
°
F
Degrees (Fahrenheit)
°
C
Degrees (Celsius)
M
Mega (value x 10
6
)
k
kilo (value x 10
3
)
m
milli (value x 10
-3
)
μ
micro (value x 10
-6
)
n
nano (value x 10
-9
)
V
Volts
A
Amps Ohms
Hz%
Frequency/Duty Cycle
ZERO
DC Current Zero Function
Hazardous Voltage Indicator Relative Mode
MIN Minimum Value Hold MAX Maximum Value Hold
MAX-MIN
Difference between MAX and MIN values
