13
OPERATING INSTRUCTIONS
RESISTANCE MEASUREMENTS

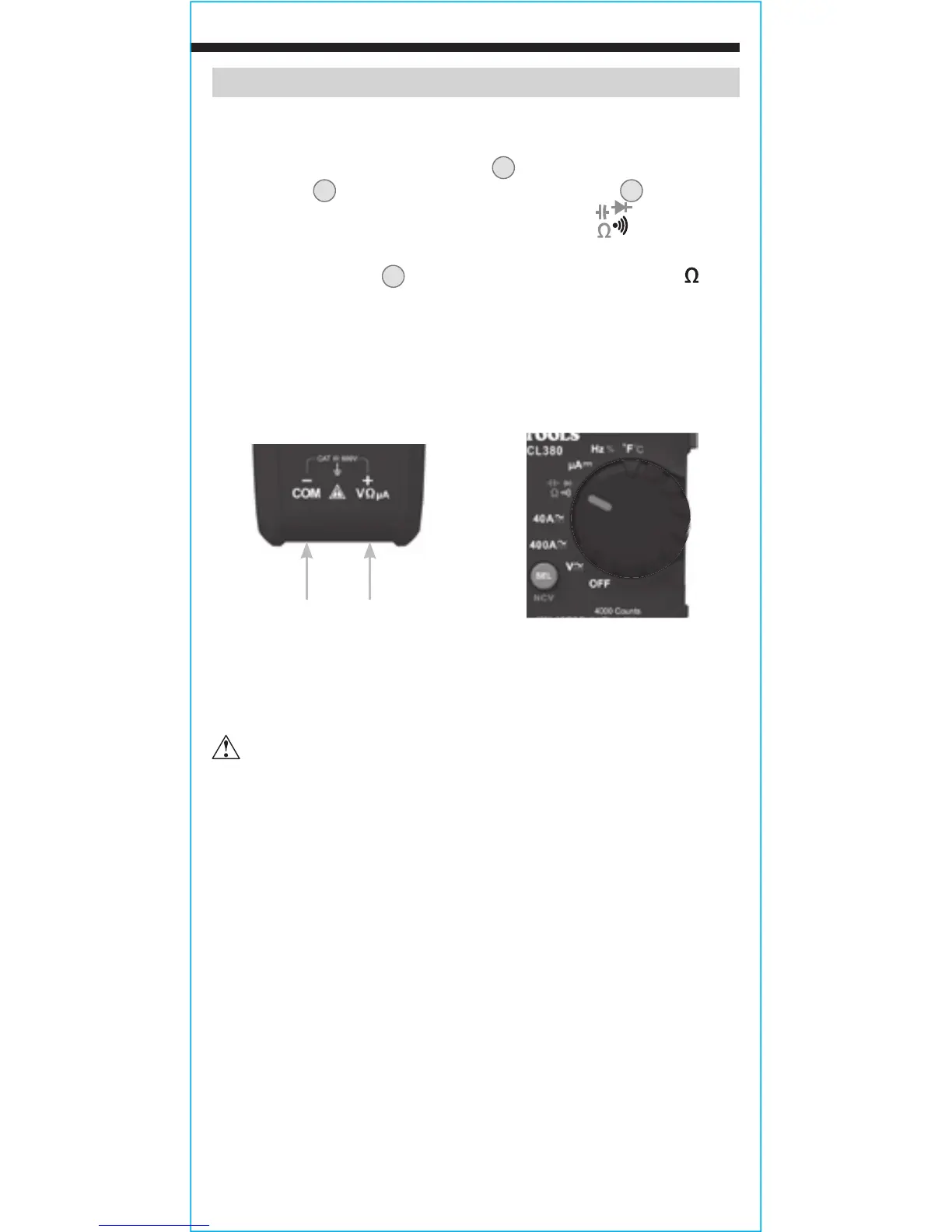

1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Continuity/Resistance/Capacitance/Diode-Test
setting.
NOTE: The meter defaults to Continuity testing in this mode. Press
the "SEL/NCV" button
12
repeatedly until the resistance icon
appears on the display.
2. Remove power from circuit.
3. Measure resistance by connecting test leads to circuit. The
meter will auto-range to display the measurement in the most
appropriate range.
NOTE: When in a Resistance setting and the test leads are open
(not connected across a resistor), or when a failed resistor is under
test, the display will indicate "OL" This is normal.
DO NOT attempt to measure resistance on a live circuit.
Red leadBlack lead
