OPERATING INSTRUCTIONS

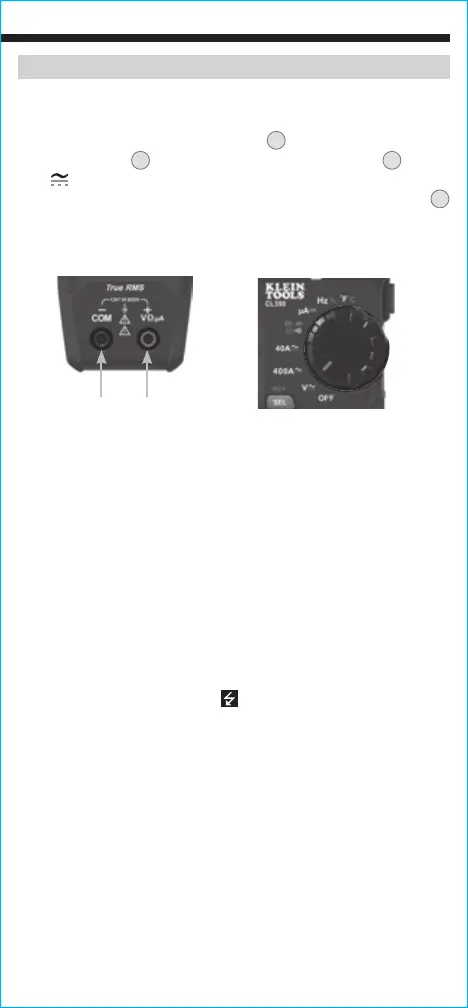

AC/DC VOLTAGE (LESS THAN 600V)
1. Insert RED test lead into VΩµA jack
5
, and BLACK test lead
into COM jack
4
, and rotate function selector switch
2
to the
V
setting for AC or DC measurements. The meter defaults to
AC measurement. To measure DC, press the SEL/NCV button
12
to toggle between AC and DC modes. The AC or DC icon on the
LCD indicates which mode is selected.
Apply test leads to the circuit to be tested to measure voltage.
The meter will auto-range to display the measurement in the most
appropriate range.
NOTE: If "–" appears on the LCD, this indicates negative polarity for
DC voltage.
NOTE: When in a voltage setting and the test leads are open,
readings of order mV may appear on the display. This is noise and
is normal. By touching the test leads together to close the circuit
the meter will measure zero volts.
NOTE: When voltages in excess of 25V AC or 60V DC are measured
the hazardous voltage indicator
will be present on the display.
Red leadBlack lead

Klein Tools CL390 Specifications

General

Product type	Digital multimeter
Product color	Black, Orange
DC voltage range	0 - 600 V
Measuring category	CAT III 600V
Placement supported	Handheld multimeter
Resolution (AC current)	200 µA
Temperature measurement range	-40 - 1000 °C
Battery type	AAA
Power source	Battery
Auto power off	Yes
Number of batteries supported	3

Weight and Dimensions

Depth	215 mm
Width	89 mm
Height	38 mm
Weight	314 g
