Klein 3000 Series - Figure 5-5: Basic System Setup Diagram with Towfish, Navigation and Laptop

206 pages

Save Page as PDF

To Next Page

To Previous Page

Setting up and Connecting the SP-II TPU 5-9

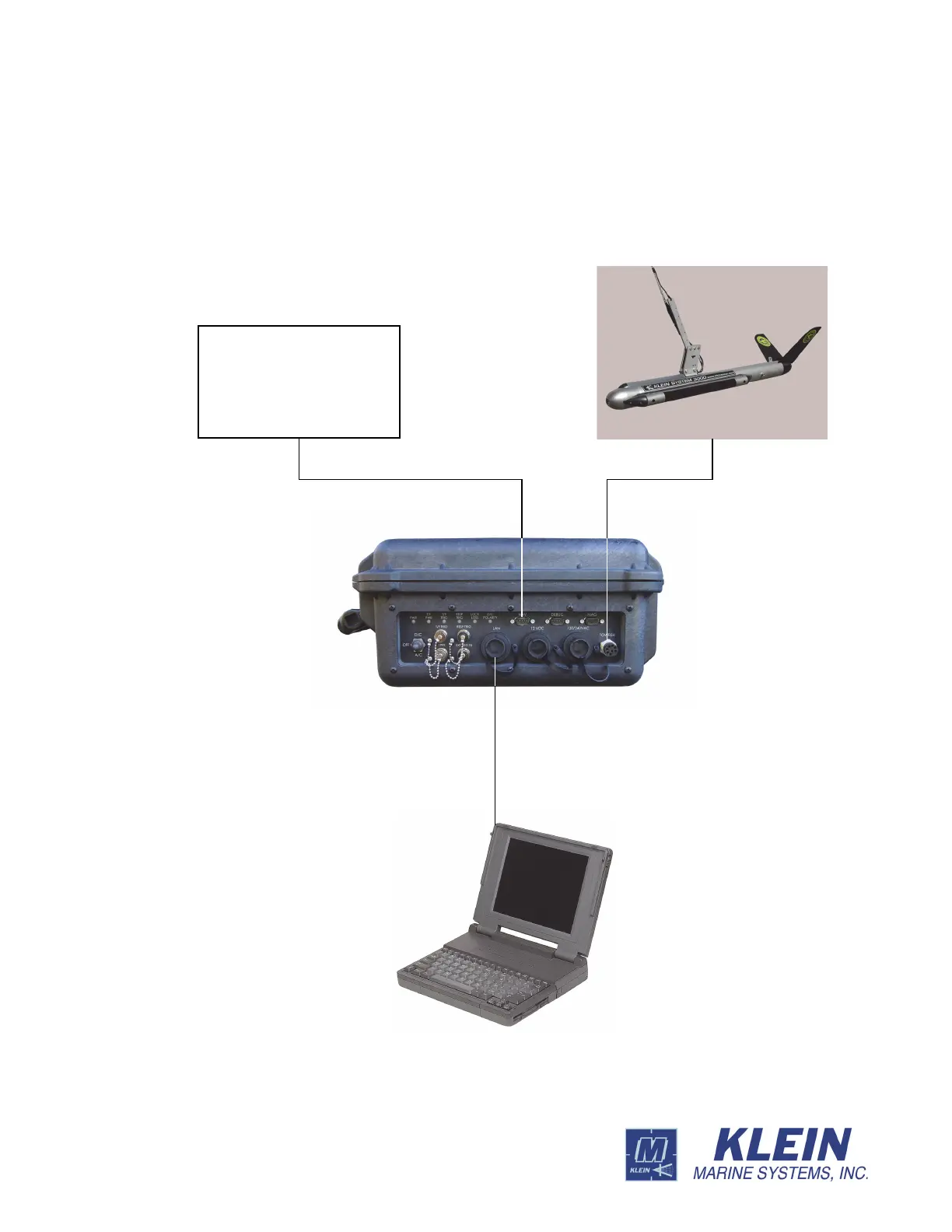

Figure 5-5: Basic System Setup Diagram with Towfish, Navigation and Laptop Computer

Connections

Sample navigation strings:

The preferred is RMC

$GPRMC,101842.572,A,3318.577,N,07845.424,W,7.452,2

45.4,050202,0.0,E*72

$GPVTG,245.4,T,245.4,M,7.5,N,13.8,K*76

However the following can also be used

$GPGLL,3446.8877,N,07849.0595,W,091739.00,A*1d

$GPVTG,290.0,T,290.0,M,06.6,N,12.2,K*4f

Navigation System

NMEA 0183

4800 baud

Formats:

GGA&VTG

GLL&VTG or

RMC

Ethernet port

SP-II TPU

Towfish

Laptop

computer
