5-10 CHAPTER 5 Splashproof-II TPU

Series 3000 Sonar System Operations and Maintenance Manual 11210066, Rev. 11

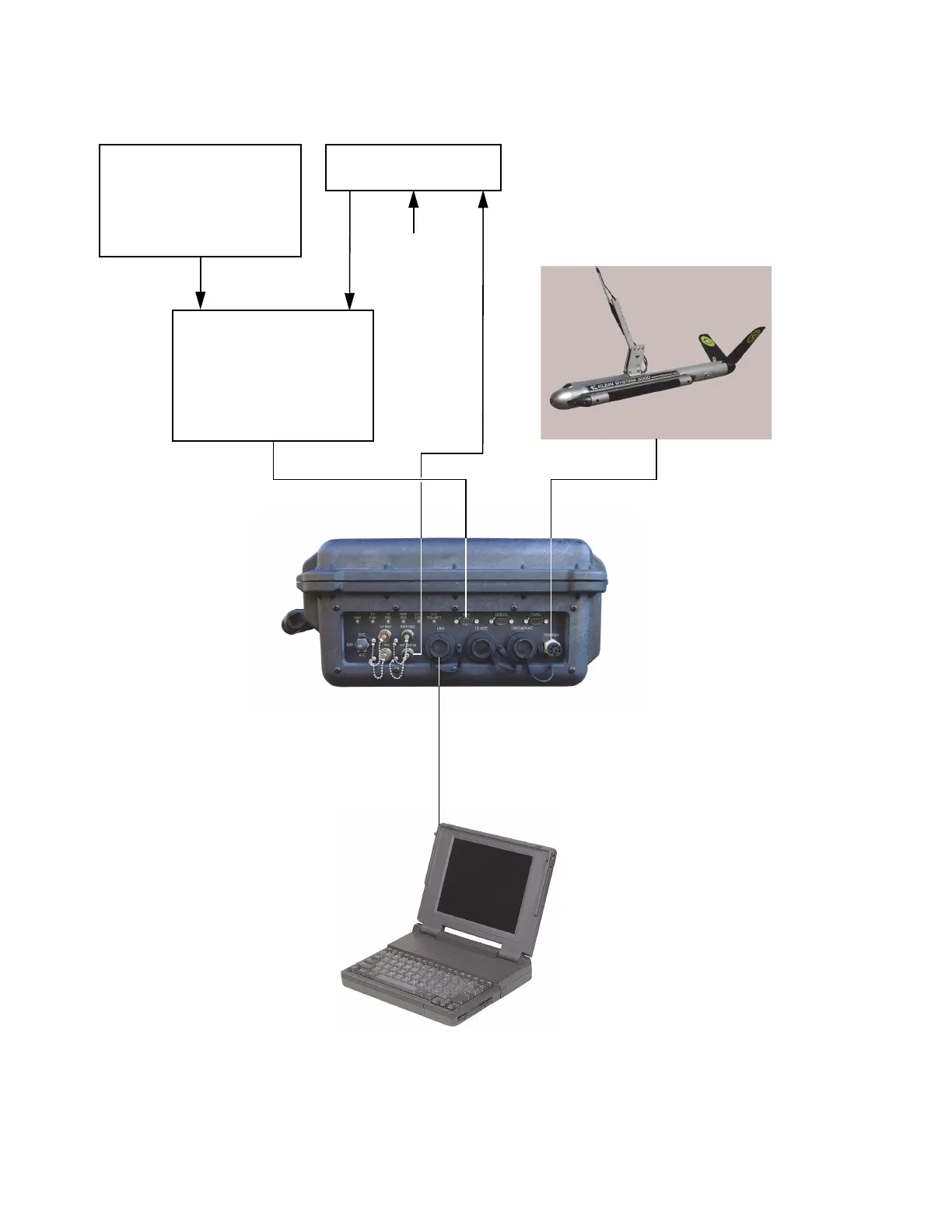

Figure 5-6:

System Setup Diagram with Towfish, Navigation, Acoustic Positioning System, and

Laptop Computer Connections

Acoustic Tracking

Unit

Acoustic Positioning System

Output Format:

RMC and TLL or

GLL&VTG and TLL or

GGA&VTG and TLL

Depth

Navigation System

NMEA 0183

4800 baud

Formats:

GGA&VTG

GLL&VTG or

RMC

Ethernet port

SP-II TPU

Towfish

Laptop

computer
