SOFT 80, SOFT 100 PELLET-BURNING STOVE
EN - Rev. 1.0
DESCRIPTION OF COMPONENTS
Remote control
The remote control must be powered by 3 x 1.5 V AAA batteries (model LR03 / MN2400); the battery life depends on
how frequently the remote control is used.
The table describes the operation of the buttons on the remote control.
Button
Description
Mode
Action
1
INCREASE
When pressed the first
time...
Allows for modifying the “SET ROOM” room temperature.
In programming mode...
Changes/increases the value of the selected menu item.
Increases the room temperature/working power value.
2
DECREASE
When pressed the first
time...
Allows for modifying the “SET OUTPUT” working power.
In programming mode...
Changes/decreases the value of the selected menu item.
Decreases the room temperature/working power value.
In “SET DUCTING”, it modifies the value of the frontal fan.
3
ON/OFF
When pressed the first
time...
It switches on the display.
In work mode...
Switches the appliance off when pressed for 2 seconds.
In off mode...
Switches the appliance on when pressed for 2 seconds.
In alarm lock mode...
Disengages the alarm.
In menu/programming
mode...
Goes to the previous menu level, without saving the changes made.
4
SET
When pressed the first
time...
Accesses the user menu.
In menu mode...
Goes to the next menu, saving the changes made.
In programming mode...
Goes to the next sub-menu item, saving the changes made.
5
ESC
When pressed the first
time...
Allows for modifying the speed of the frontal fan “SET DUCTING”.
In menu mode...
Goes to the previous menu, saving the changes made.
In programming mode...
Goes to the previous sub-menu item, storing the changes made.

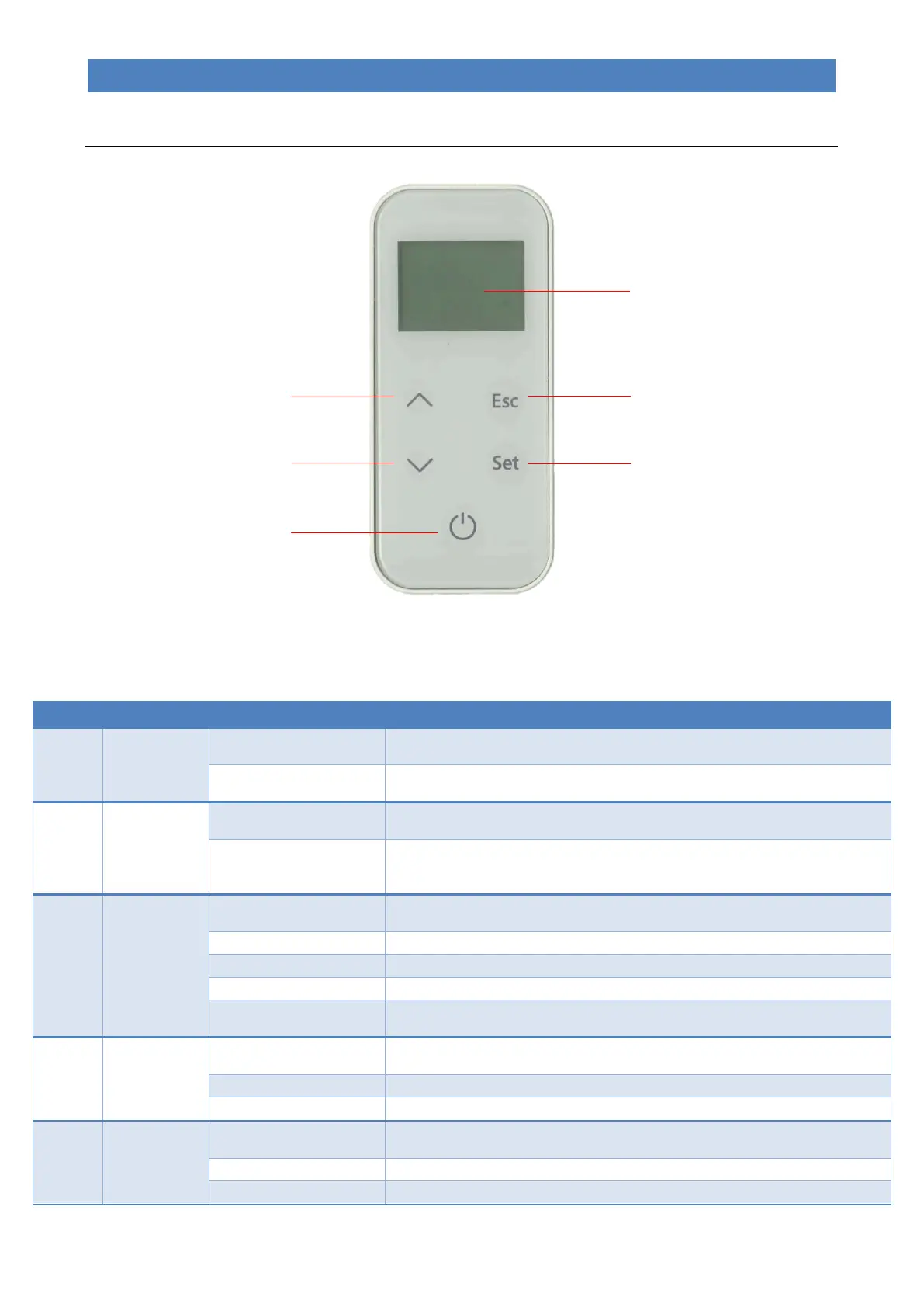

Button 1 – INCREASE
Button 5 – ESC
Button 3 – ON/OFF
Button 2 – DECREASE
Button 4 – SET
Display
