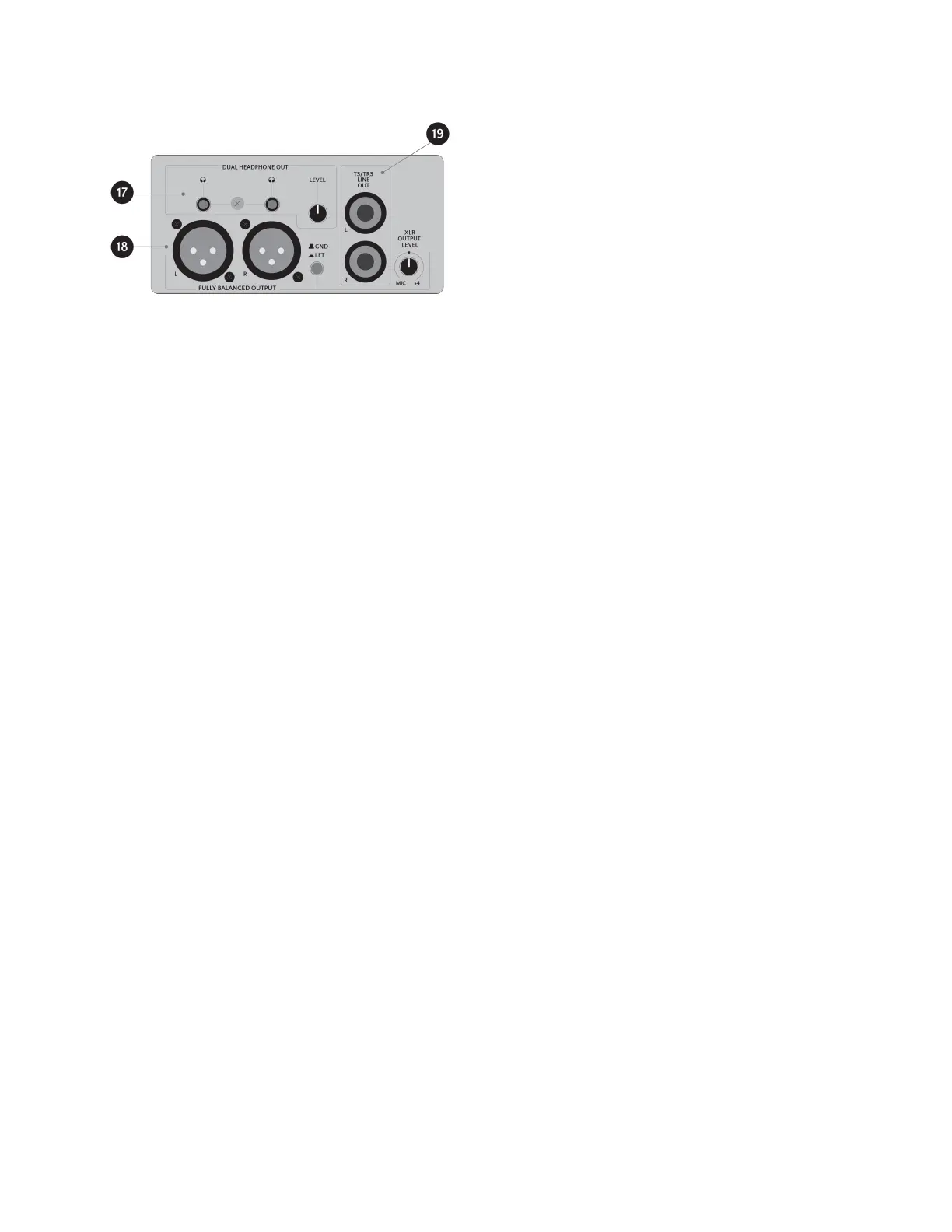

17 – DUAL HEADPHONE Outputs
You can use the two DUAL HEADPHONE 3.5 mm mini TRS outputs to connect two separate
headphones to ENDGAME.
These dual outputs allow to you share your completed mix with another musician, or you can
use for IEM (In Ear Monitoring), either wired or via a stereo wireless IEM system.
The level knob between the two DUAL HEADPHONE outputs adjusts the volume of both outputs
simultaneously.
18 – FULLY BALANCED OUTPUT Jacks
Connect two XLR connectors to the FULLY BALANCED OUTPUT jacks to send the ENDGAME’s
stereo main mix (Left/Right) to the Front-of-House/PA system, to FRFR cabinets, a recording
system etc.
Use the XLR OUTPUT LEVEL control to adjust the output level from Mic Level/-60 dBu (Fully left
/ counter-clockwise position) all the way up to professional +4 dBu (Fully right / clockwise
position).
To help alleviate situations where you may encounter hum, the internal Ground Lift can assist
when connecting to other devices or if you encounter grounding loops etc.
If the GND LIFT switch is depressed, Ground Lift is activated.
19 – TS/TRS LINE OUT Jacks
The two TS/TRS LINE OUT jacks output ENDGAME’s complete Stereo Main Mix (Left/Right) at
Line Level.
