5.5 Internal DIP Switches
For extended monitoring exibility, there are two mini–DIP switches within the ENDGAME to
control various monitoring options.

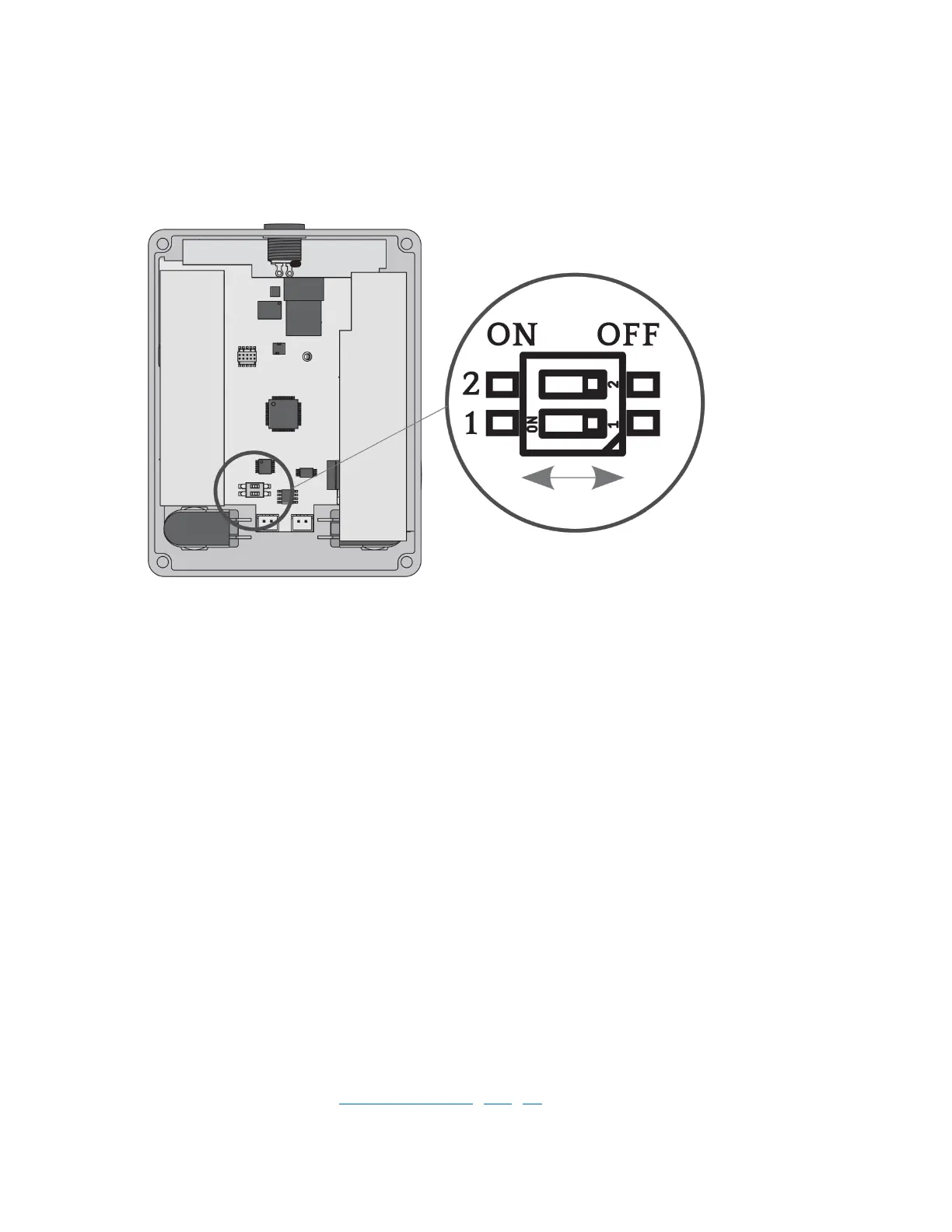

These are located on ENDGAME’s main circuit board (PCB) as shown here:
ENDGAME Internal DIP Switches
Note: To access these DIP switches, remove the four screws that attach the rear plate to the main
body of the pedal. Be extremely careful when opening the device and reattaching the plate as
not to snag or disturb any cables, components etc. on the various internal PCBs. Apart from
these DIP switches, no other user serviceable parts are inside and any further adjustments to
any other component inside may damage the product, which will void your warranty.
Switch 1 – AUX BYPASS
Switch 1 disables the AUX INPUT (Analog or Bluetooth) from being passed to the Main XLR/TRS
Outputs.
This can be very useful for IEM and many other scenarios.
Switch 1 set to ON
The AUX IN signal is sent to the Headphone outputs and both the XLR and TRS outputs
simultaneously.
Switch 1 set to OFF
The AUX IN signal is sent to the Headphone outputs only.
For more information, see the
