CSC-3000 Series Pneumatic VAV Reset Volume Controllers 10 Applications Guide, Rev G
Applications

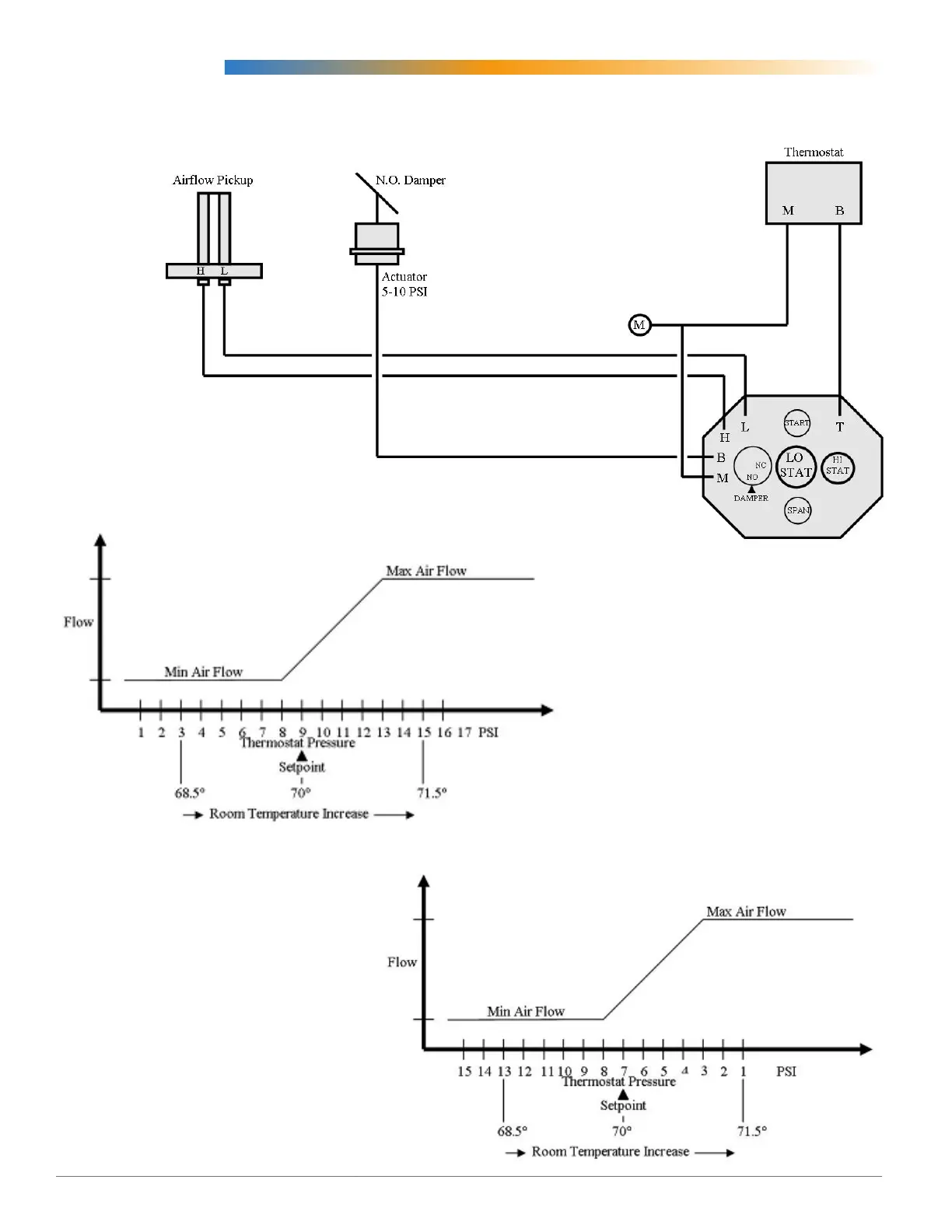

DA Thermostat (NO or NC Damper)
RA Thermostat (NO or NC Damper)
Cooling
(Theseinstructionsdonotapplytothe
CSC-3014ortheCSC-3501/3505.)
• LO STAT = Min. Flow
• HI STAT = Max. Flow
• Reset Range = 8 to 13 psi
• LO STAT = Max. Flow
• HI STAT = Min. Flow
• Reset Range = 3 to 8 psi
