KMC Controls CSC-3000 Series - Cooling with Heating Valve

CSC-3000 Series Pneumatic VAV Reset Volume Controllers 11 Applications Guide, Rev G
Cooling with Heating Valve

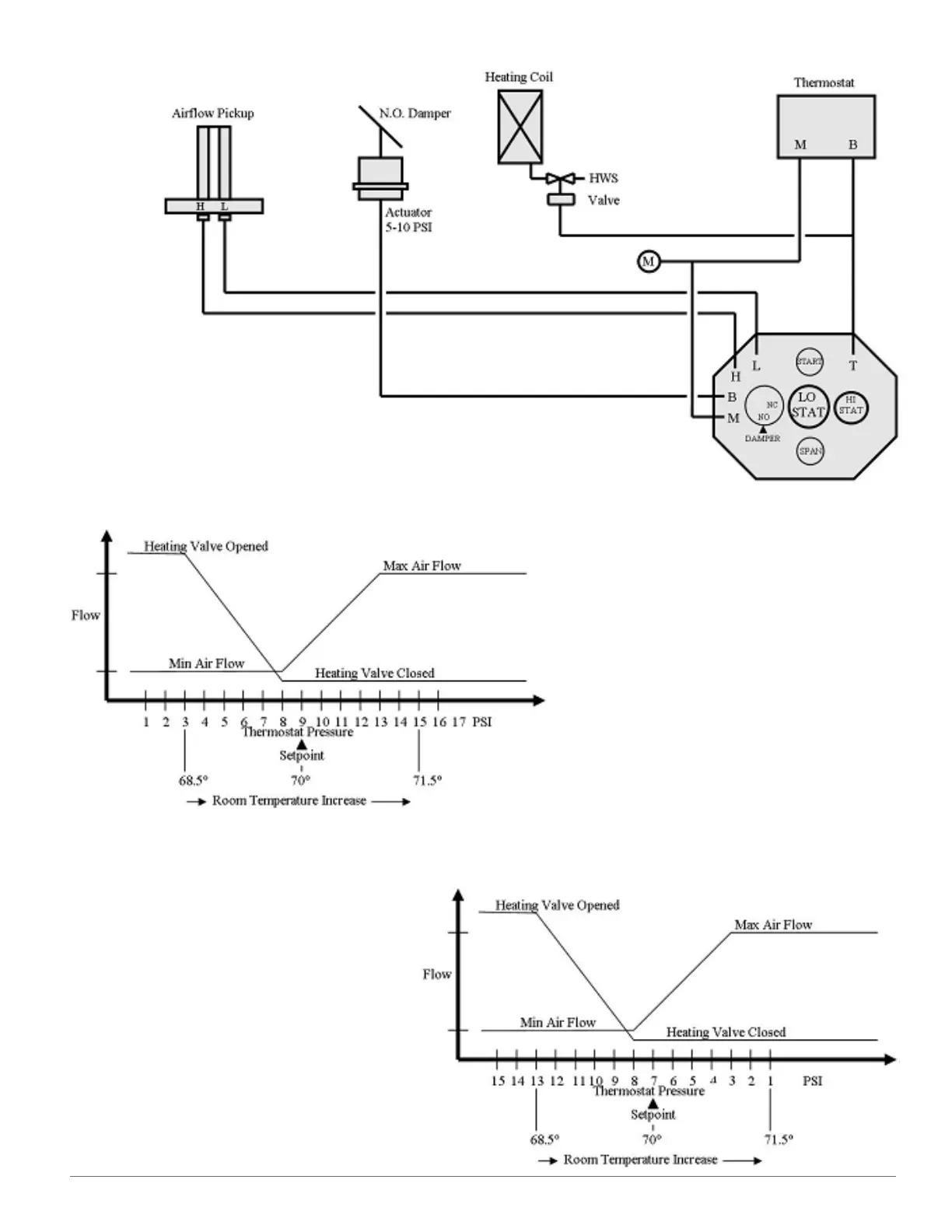

DA Thermostat, NO or NC Damper, and NO Hot Water Valve
RA Thermostat, NO or NC Damper, and NC Hot Water Valve
• LO STAT = Min. Flow
• HI STAT = Max. Flow
• Reset Range = 8 to 13 psi
• Hot Water Valve = NO
• Spring Range = 3 to 8 psi
• LO STAT = Max. Flow
• HI STAT = Min. Flow
• Reset Range = 3 to 8 psi
• Hot Water Valve = NC
• Spring Range = 8 to 13 psi
