KMC Controls CSC-3000 Series - Cooling with Heating P-E Switch

CSC-3000 Series Pneumatic VAV Reset Volume Controllers 12 Applications Guide, Rev G

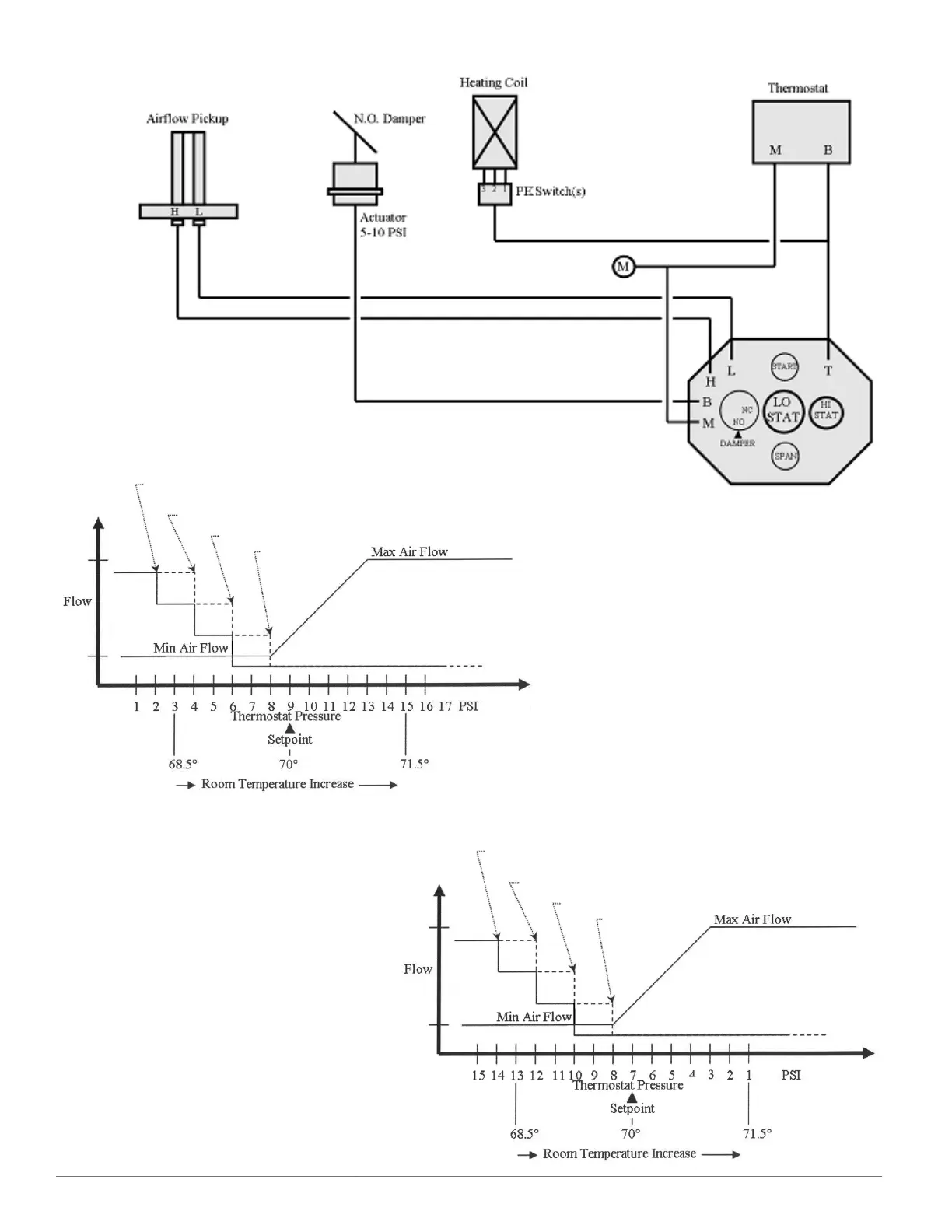

Cooling with Heating P-E Switch
DA Thermostat, NO or NC Damper, and NC Heating P-E Switch
• LO STAT = Min. Flow
• HI STAT = Max. Flow
• Reset Range = 8 to 13 psi
NC PE
Switches
• Stage 2 On with Decrease
• Stage 3 Off with Increase
• Stage 1 On with Decrease
• Stage 2 Off with Increase
• Stage 3 On with Decrease
• Stage 1 Off with Increase
• LO STAT = Max. Flow
• HI STAT = Min. Flow
• Reset Range = 3 to 8 psi
NO PE
Switches
RA Thermostat, NO or NC Damper, and NO Heating P-E Switch
• Stage 2 On with Decrease
• Stage 3 Off with Increase
• Stage 1 On with Decrease
• Stage 2 Off with Increase
• Stage 3 On with Decrease
• Stage 1 Off with Increase
