KMC Controls CSC-3000 Series - Dual Duct

CSC-3000 Series Pneumatic VAV Reset Volume Controllers 13 Applications Guide, Rev G
Dual Duct

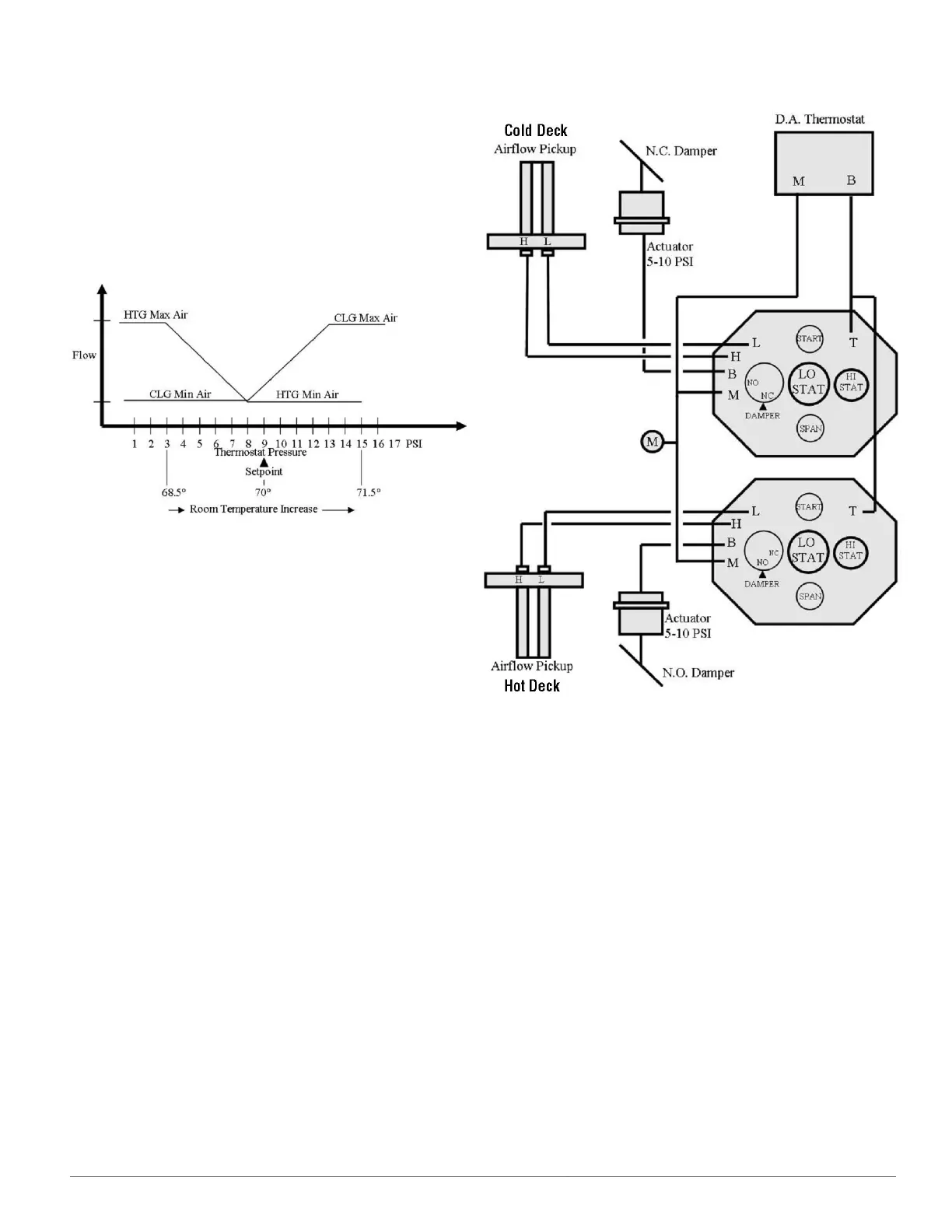

Cold Deck CSC-3011-10
• Damper = NC
• LO STAT = Min. Flow
• HI STAT = Max. Flow
• Reset = 8 to 13 psi
Hot Deck CSC-3021-10*
• Damper = NO
• LO STAT = Max. Flow
• HI STAT = Min. Flow
• Reset = 3 to 8 psi
*Or use a CSC-3011-10 and change
the reset from 8 to 3. See Reset
Start Point on page 6.
