3.2.4.1.4 Injection settings

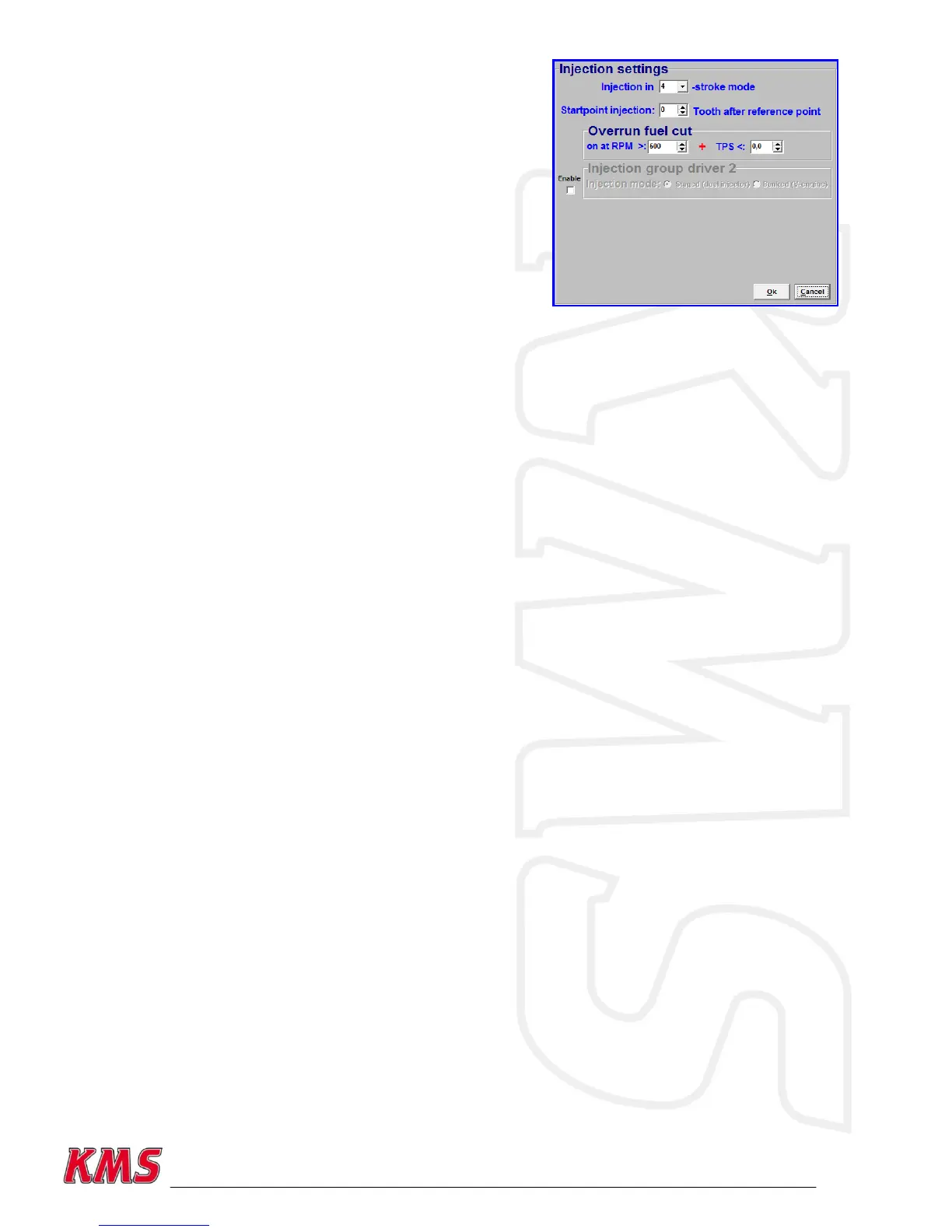

Injection in “x” stroke mod:
The injection frequency (x) can be set to:
2 times per crankshaft revolution
(x = 1)
1 time per crankshaft revolution
(x = 2)
1 time per two crankshaft revolutions
(x = 4)
Normally, it is recommended to select the 4-stroke setting.
Startpoint injection:
The starting point of the injection cycle can be set here in number of tooth after the set reference
point for the crank pickup.
Overrun fuel cut:
Here a deceleration fuel cut can be set above x RPM and below x TPS.
Injection driver 2:
If you have selected (enabled) the second injection driver in the hardware configuration (see
section 3.2.4.1.7 Hardware configuration), you will be able to configure the type (banked or staged)
of injection here depending on the kind of injector configuration.
TIP: Mapping a banked (V) engine can be easily done by disabling „banked injection‟ and selecting
the first lambda controller, so both injection outputs (1 and 2) run on one fuel map and lambda
controller. Then quickly make a „rough/global‟ mapping using the lambda control. If the engine runs
ok, activate the banked injection and copy fuel map 1 to fuel map 2. After this activate the second
lambda controller and map each bank separately.
