3.1.1 The injection characteristic diagram

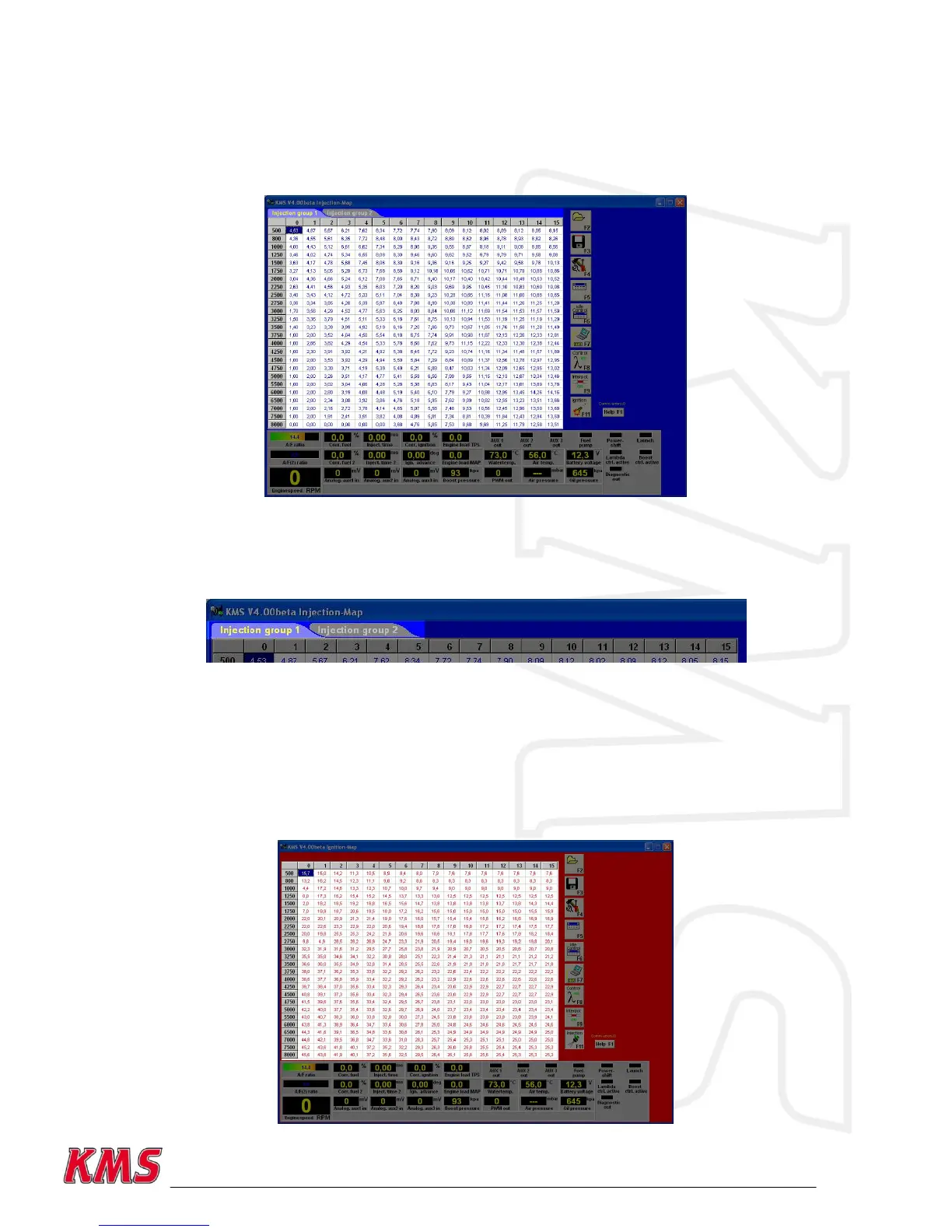

In the injection characteristic diagram, figures can be entered that indicate the injector opening
time per injection in ms. This means that at any engine speed and any engine load, the desired
quantity of fuel can be injected.
You can switch between injector groups (when activated, see section 3.2.4.1.4 Injection settings)
by clicking on the buttons that are marked in the drawing below. These groups can be set for
different kind of injector banks. For more settings look at the hardware configuration and the
injection settings (see 3.2.4.1.7 Hardware configuration and 3.2.4.1.4 Injection settings).
3.1.2 The ignition characteristic diagram
In the ignition spreadsheet, figures can be entered that indicate the ignition advance (in crankshaft
degrees before TDC). This means that for any engine speed and any engine load, the desired
ignition moment can be entered.
